DIY Magnetic Connector - Straight 7 Contact Pins - 2.2mm Pitch

Experiment with futuristic magnetic connectors using this DIY Magnetic Connector featuring seven 2.2mm spaced contact pogo pins and a straight solderable PCB connection. These connectors work similarly to MagSafe technology, providing a secure magnetic connection that ensures all pogo pins make contact while preventing incorrect connections by magnetic repulsion.

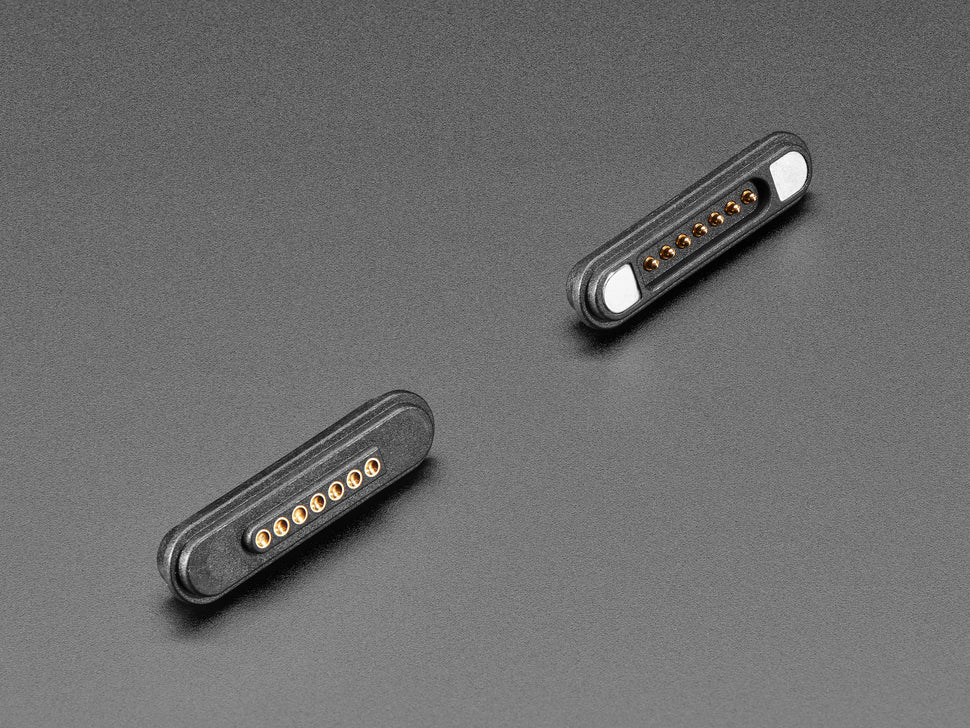

Perfect for use in power adapters, toys, gadgets, or custom STEMMA QT or USB connectors. Comes with two matching halves that easily connect magnetically.

• Straight solderable design with 7 contact pogo pins spaced 2.2mm apart
• Magnetic connection for secure attachment and correct orientation
• Ideal for power, data, and custom connections

Note: This pitch is too small for standard breadboarding. For 2.54mm pitch magnetic connectors, see our alternative product.
