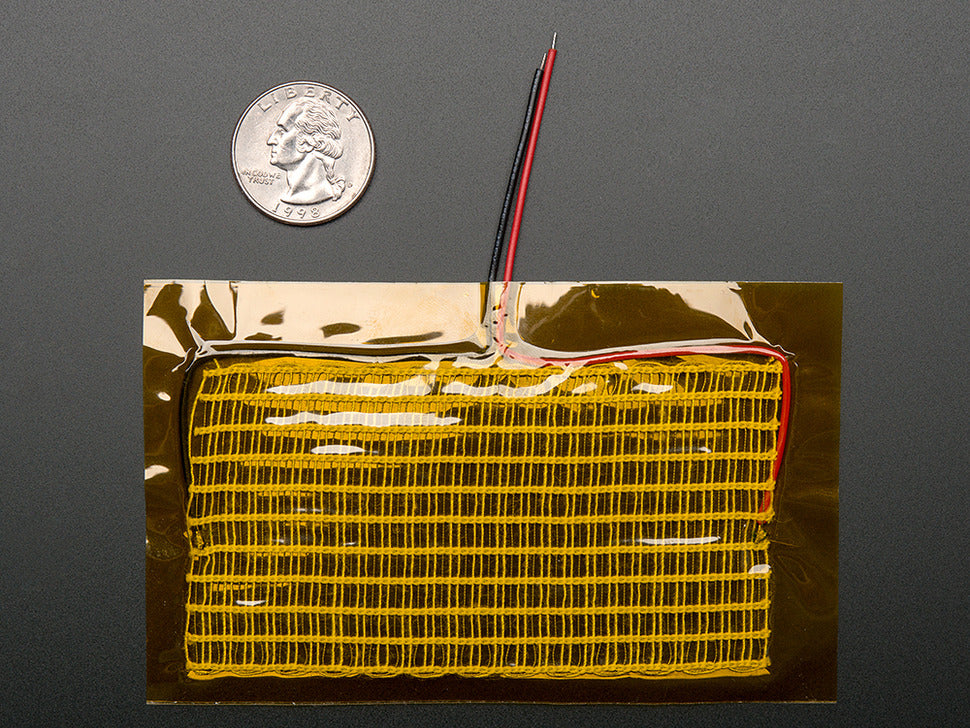

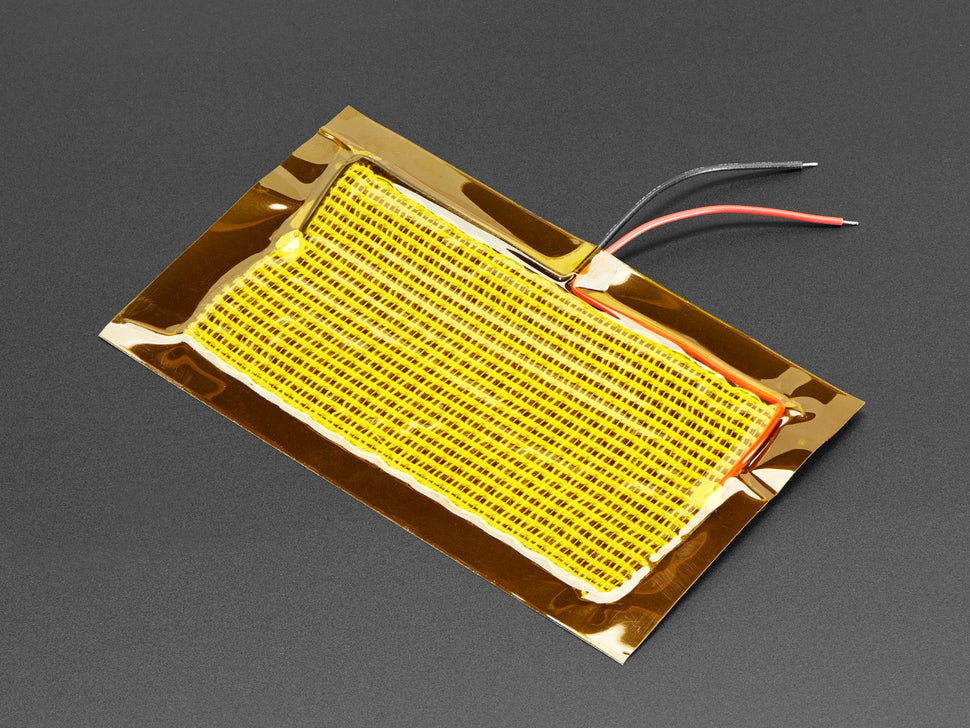

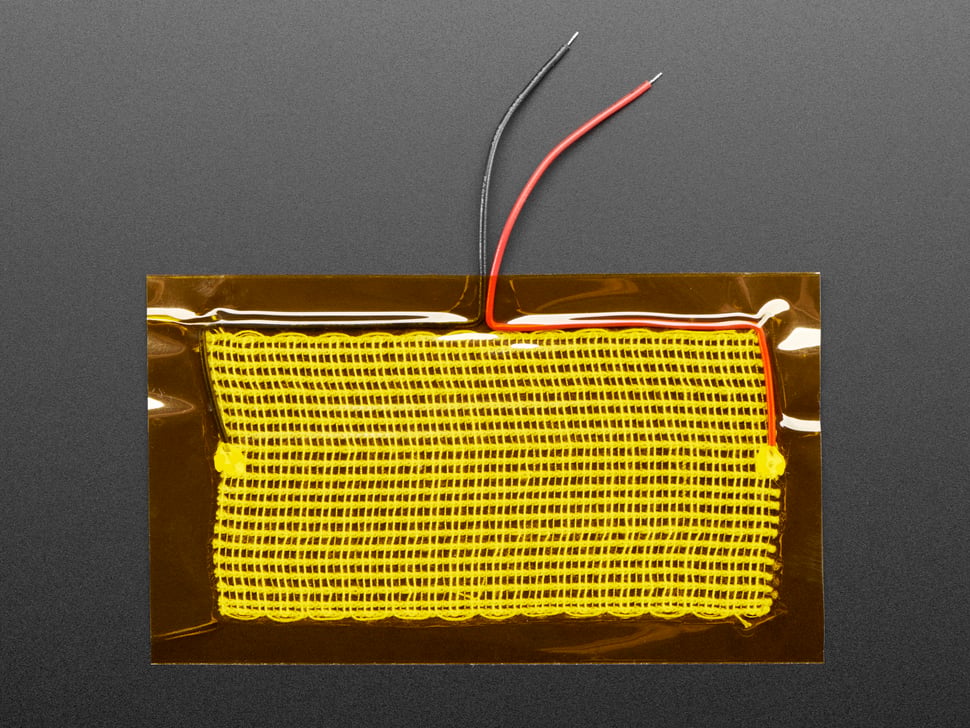

Electric Heating Pad - 10cm x 5cm

This Electric Heating Pad is designed to warm up when 5-12V DC is applied, utilizing stainless steel fibers embedded in a flexible heating fabric. The pad measures approximately 10cm in length and is covered with Kapton polyimide film for insulation.

Ideal for wearable projects, thermal cycling, DIY bio projects, and more, this heating fabric acts as a large resistor that is lightweight and flexible enough to be wrapped around various objects.

• Dimensions: 110.65mm x 70.45mm x 1.54mm (4.35" x 2.77" x 0.06")
• Wire Length: 35.8mm (1.4")
• Weight: 2.53g
• Insulation: Polyimide film (Kapton)
• Fabric Composition: Polyester filament and micro stainless steel fiber
• Power Requirements: 5V DC up to 1A

Temperature varies based on voltage applied; see included spec sheets for voltage, current, and temperature details. For finer temperature control, PWM with a power N-channel transistor is suggested.

Spec sheet #1 | Spec sheet #2
