Electric Heating Pad - 14cm x 5cm

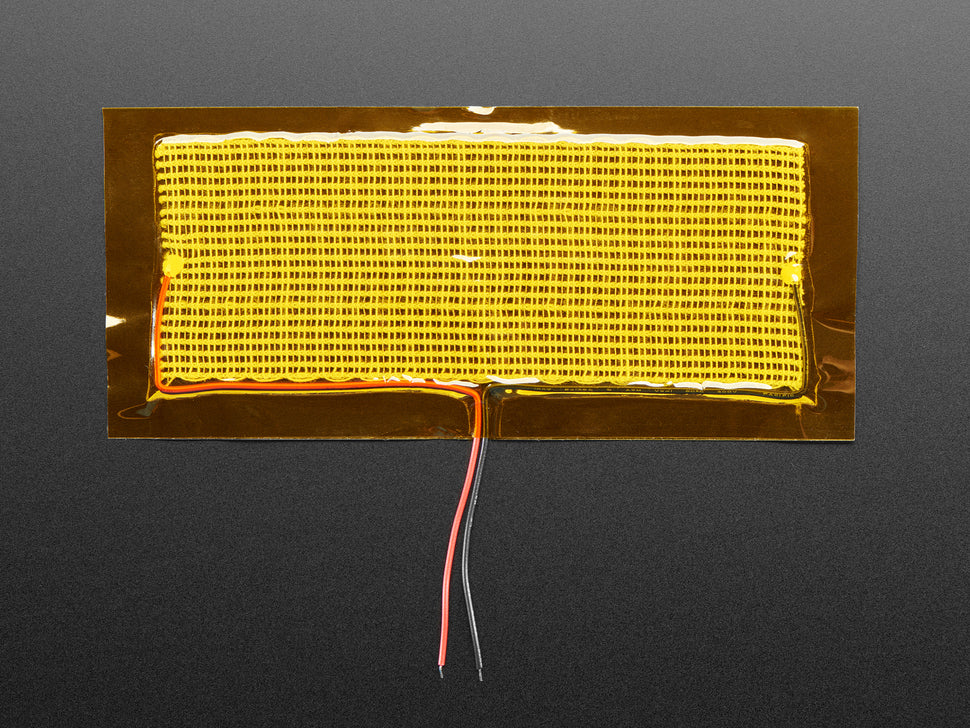

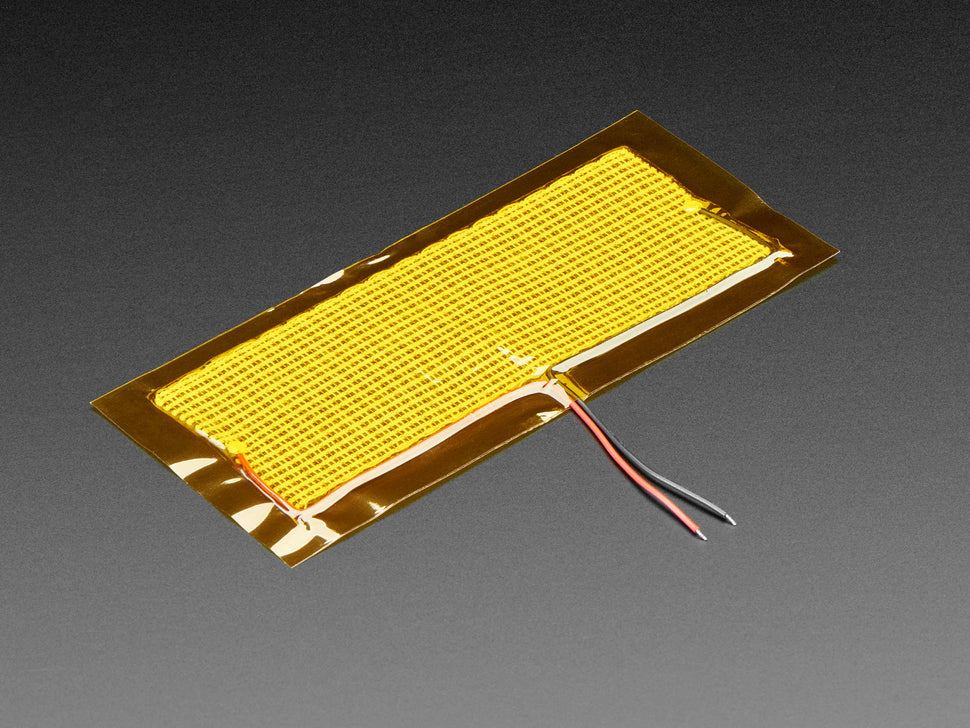

This is hot! Literally! Apply 5-12VDC and the stainless steel fibers in this heating fabric will warm up, creating a little heating pad. On one hand, it's just a gigantic resistor. On the other hand, it's flexible, light, and can be wrapped around a project.

Originally designed for portable wearable heating pads, this fabric can be used for wearables, weather balloons, DIY-bio projects, thermal cycling for materials testing, etc.

The temperature reached varies with voltage. Note that while the data/spec sheet says 15cm, its more like ~14cm long. Check the spec sheets in the Technical Details tab for a table of voltage/current/temperature outputs. You could PWM it with a power N-channel transistor if you want finer temperature control.

We also have a smaller version of this heating pad.

Features:

• Flexible and lightweight heating fabric
• Stainless steel fibers provide heat when powered with 5-12V DC
• Covered with polyimide Kapton film insulation

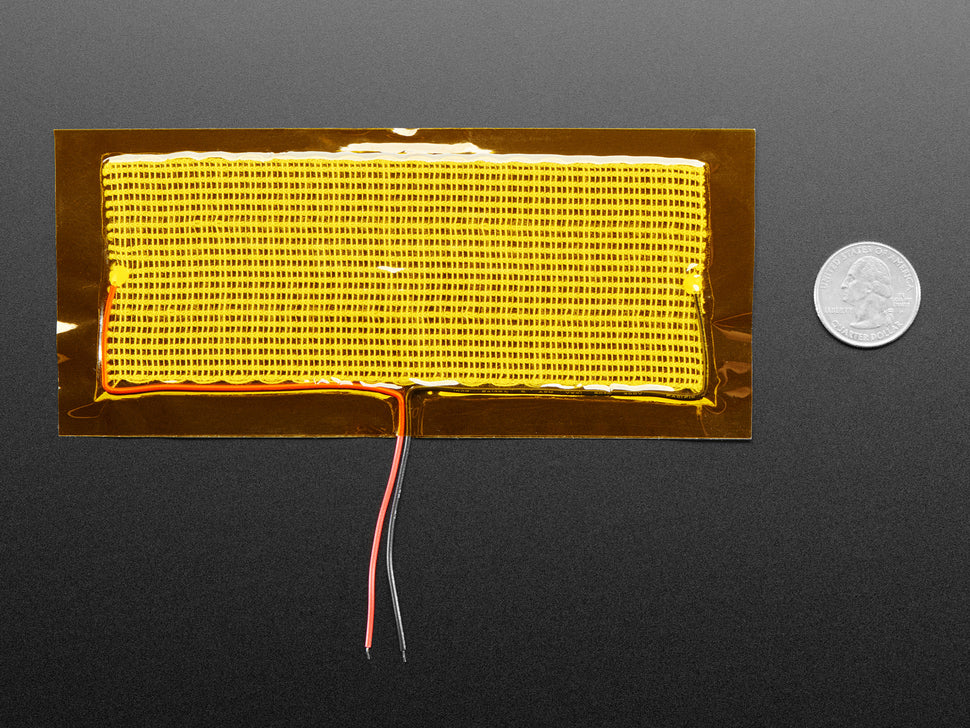

• Dimensions approximately 14cm x 5cm (actual length ~14cm, not 15cm as datasheet states)
• Power requirements: 5V DC up to 1A
• Wire length: 5cm (2")
• Fabric made of polyester filament and micro stainless steel fiber
