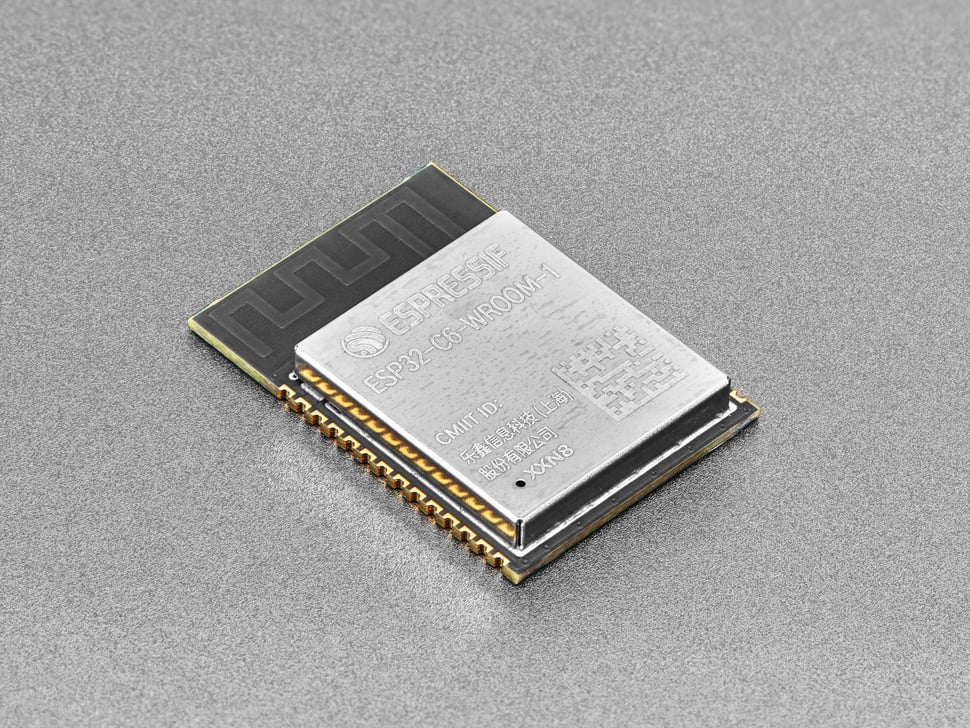

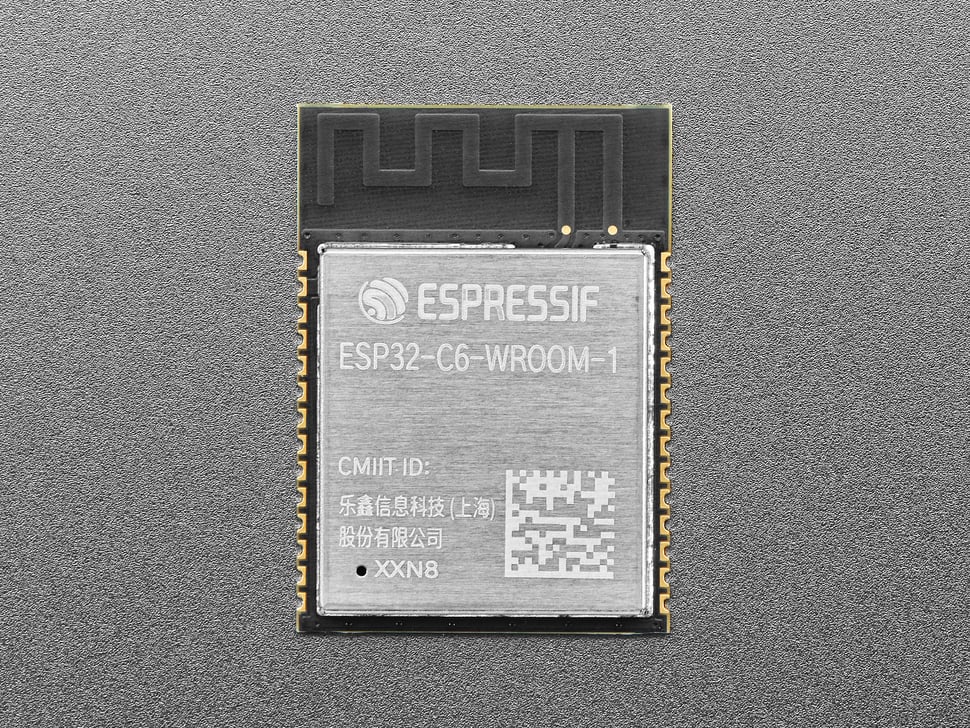

ESP32-C6-WROOM-1-N8 Engineering Module - 8 MB Quad SPI Flash - PCB Antenna

The ESP32-C6-WROOM-1-N8 is an advanced ESP32-C6-based module designed for IoT applications. It supports WiFi 6 in the 2.4GHz band, Bluetooth® 5, Zigbee 3.0, and Thread, making it versatile for various wireless communication needs. This module is pin-to-pin compatible with the ESP32-WROOM series and features low power consumption for efficient operation.

Key Features:

• 32-bit RISC-V single-core processor operating at up to 160 MHz
• State-of-the-art power and RF performance
• 320 KB ROM, 512 KB SRAM, and 16 KB Low-power SRAM on the chip
• Works with external flash memory
• 30 (QFN40) or 22 (QFN32) programmable GPIOs supporting SPI, UART, I2C, I2S, RMT, TWAI, and PWM

Note: This product is intended for advanced users. It is just the module and requires soldering onto a board with supporting circuitry to be functional.

Technical Details:

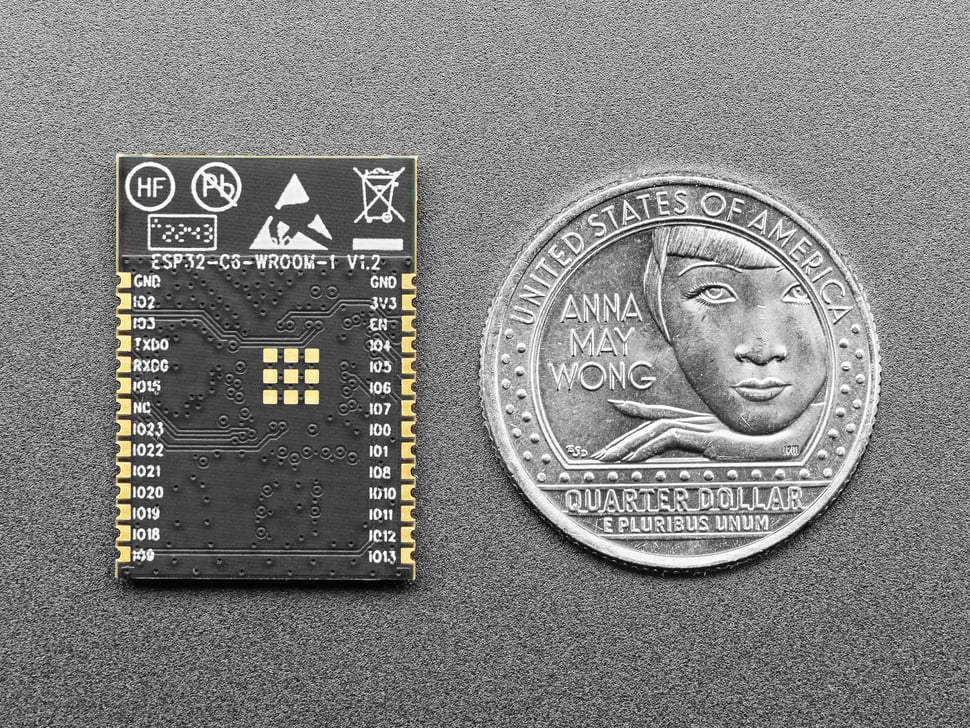

• Product Dimensions: 25.5mm x 18.0mm x 3.2mm (1.0" x 0.7" x 0.1")
