ESP32-S3-DevKitC-1-N8 - ESP32-S3-WROOM-1 Dev Board - 8MB Flash - 8MB PSRAM

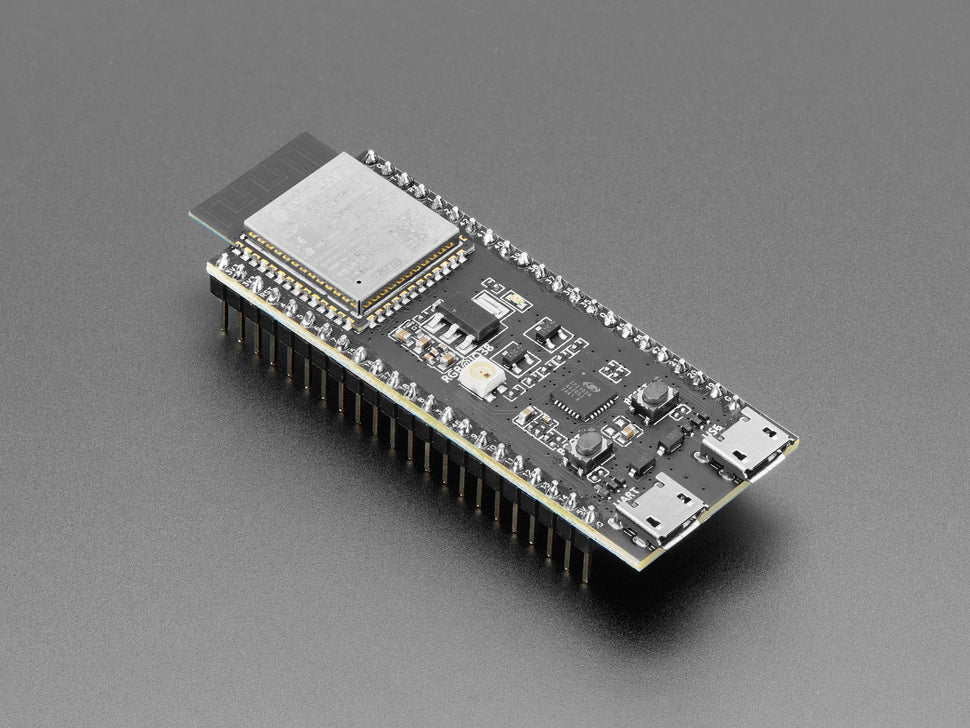

The ESP32-S3-DevKitC-1-N8 is an entry-level development board featuring the ESP32-S3-WROOM-1, a robust Wi-Fi + Bluetooth® LE MCU module with 8MB Flash and 8MB PSRAM.

This version includes the ESP32-S3-WROOM-1 with a PCB antenna. It offers a powerful Xtensa® 32-bit LX7 dual-core CPU that operates at up to 240 MHz, integrating Wi-Fi and Bluetooth® LE capabilities along with extensive peripheral interfaces.

Key Features:

• ESP32-S3-WROOM-1 module with PCB antenna
• 8MB Flash memory and 8MB PSRAM
• Dual-core Xtensa® 32-bit LX7 CPU running at up to 240 MHz
• Rich peripheral set including SPI, LCD, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB Serial/Jtag, MCPWM, SDIO host, GDMA, TWAI® controller compatible with CAN 2.0, ADC, touch sensor, temperature sensor, timers, watchdogs, and up to 45 GPIOs
• Full-speed USB 1.1 On-The-Go (OTG) interface
• Multiple power supply options: USB-to-UART port, native USB port, 5V and GND pins, or 3.3V and GND pins

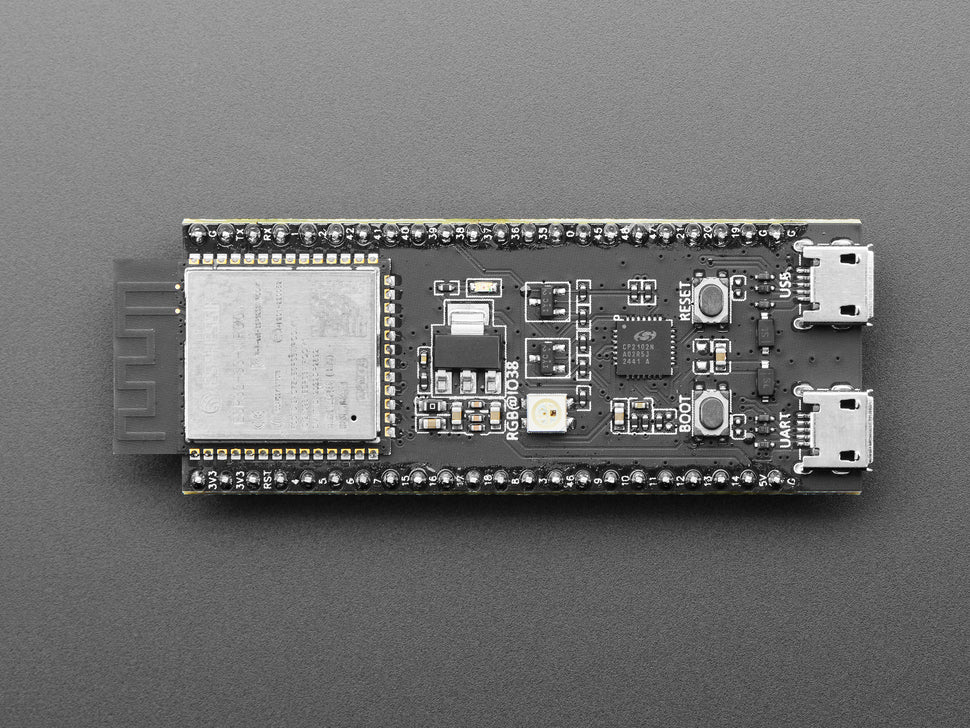

• Onboard RGB LED controlled by GPIO48
• Boot and Reset buttons for firmware programming
• USB-to-UART bridge supporting transfer rates up to 3 Mbps

Important Notes: Limited software support is currently available; at the time of listing, there is no Arduino or CircuitPython support—only ESP-IDF. This board is suited for developers working with the ESP32-S3 and comfortable with development environments that may not work fully out of the box.

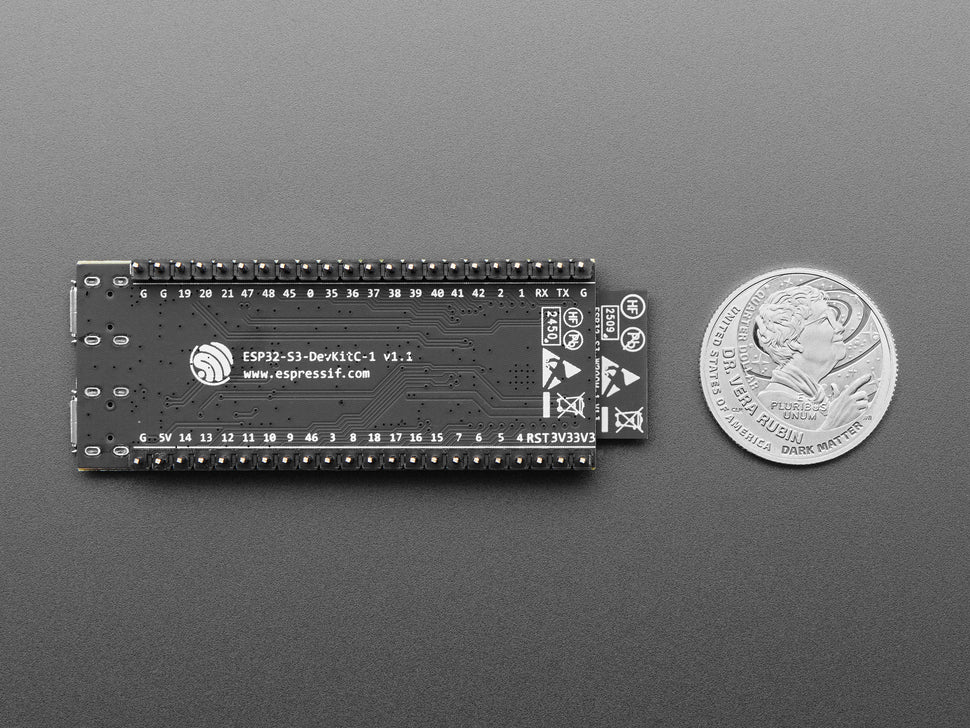

The board is designed with breakout pins on both sides for easy access and breadboard compatibility, facilitating easy connection to various peripherals and devices.
