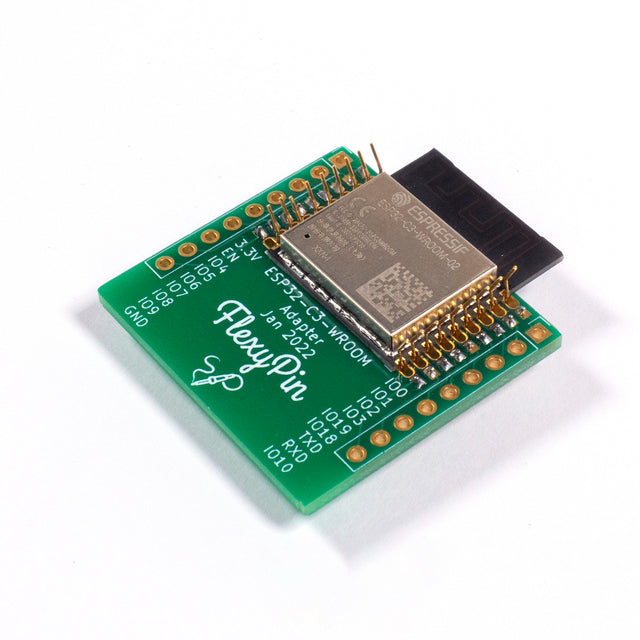

FlexyPin Adapter PCB

The FlexyPin Adapter PCBs allow you to use various modules with a breadboard and more without soldering the module in place. This adapter is ideal for creating testing or flashing jigs and experimenting with modules without the commitment of soldering.

Kit Contents:

• FlexyPin Adapter PCB
• 15mm long break-away 2.54mm pin headers

Additional items included with the Raspberry Pi Pico adapter:

• Nylon standoffs
• A reset button (requires soldering)
• Footprint for the standard Cortex 10-pin debugging connector

Note: FlexyPins and modules are sold separately. Please ensure you have FlexyPins to use this adapter effectively.

Documentation and design files are available online:

• Documentation
• Design Files on GitHub

Additional Info:

• Check compatibility for ESP8266MOD adapters with the ESP-12 datasheet.
• Be aware of a pin labelling error on current ESP32-S2-SOLO/ESP32-S3-WROOM adapters (see linked GitHub issue).
