Flora Sewable 3-Pin JST Wiring Adapter

The Flora Sewable 3-Pin JST Wiring Adapter is a simple and convenient sewable adapter board that allows easy connection between Flora-compatible components using a 3-pin JST-PH cable. The board features three holes designed for conductive thread or soldering, linking the pins to a 3-pin JST-PH adapter cable included with the product.

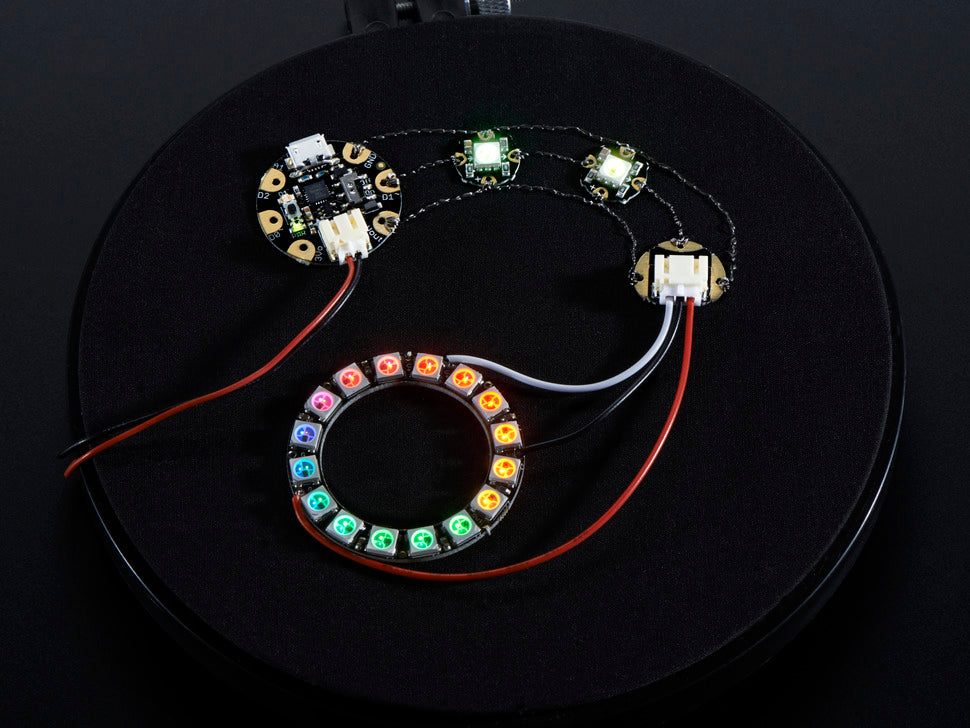

This adapter is ideal for connecting products like Flora NeoPixels and NeoPixel Rings, making wearable electronics and craft projects easier.

• Sewable adapter board with 3-pin JST wiring adapter

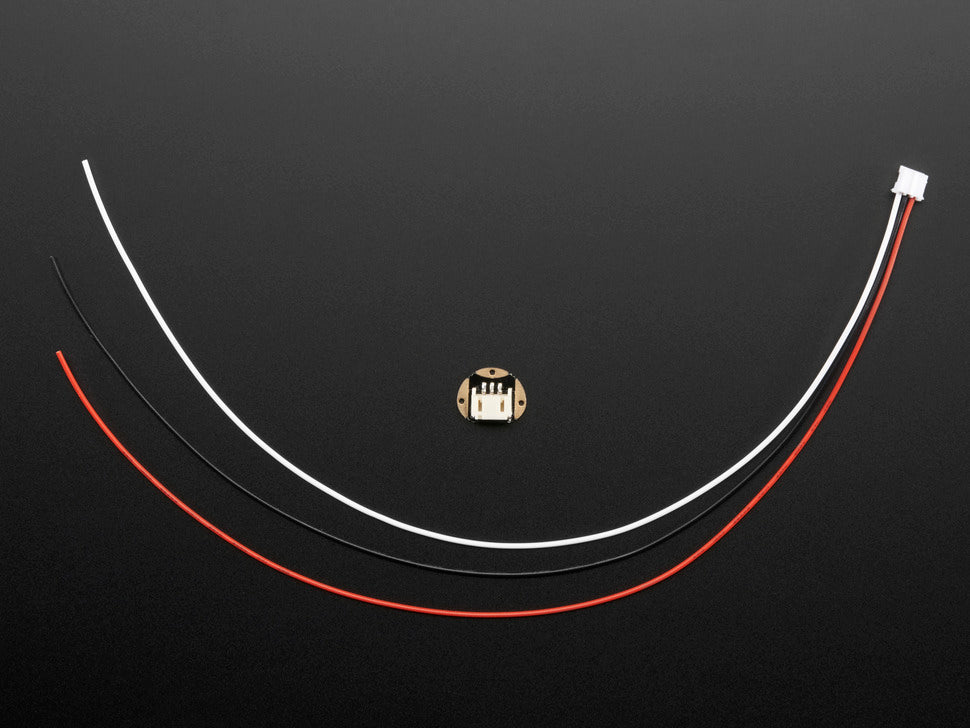

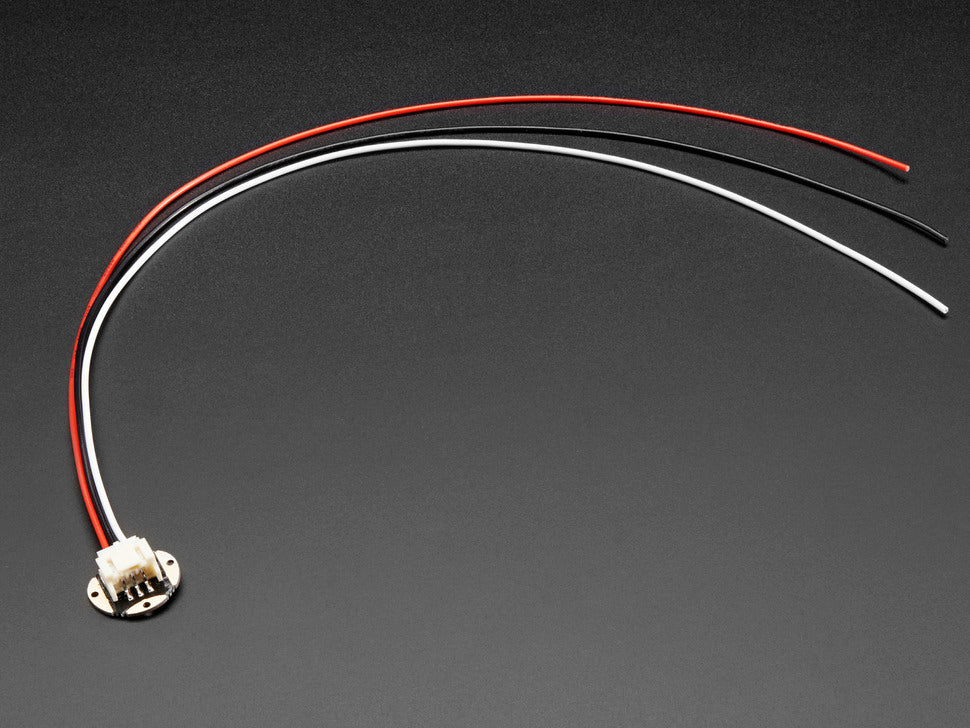

• Includes 3-pin JST-PH cable assembly
• Perfect for connecting Flora NeoPixels or NeoPixel Rings
• Three holes suitable for conductive thread or soldering
• Connector may be black or white

Note: Does not include Flora NeoPixels or Flora main board.

Technical Details:

• Board Dimensions: 14mm x 18mm x 6mm (0.6" x 0.7" x 0.2")
• Hole Diameters: 1.3mm (0.05")
• Wire Length: 300mm ± 30mm (11.8" ± 1.2")
• Weight (board and cables): 5g

EagleCAD PCB Files are available on GitHub.
