FTDI Serial TTL-232 USB Type C Cable - 5V Power / 3.3V Logic

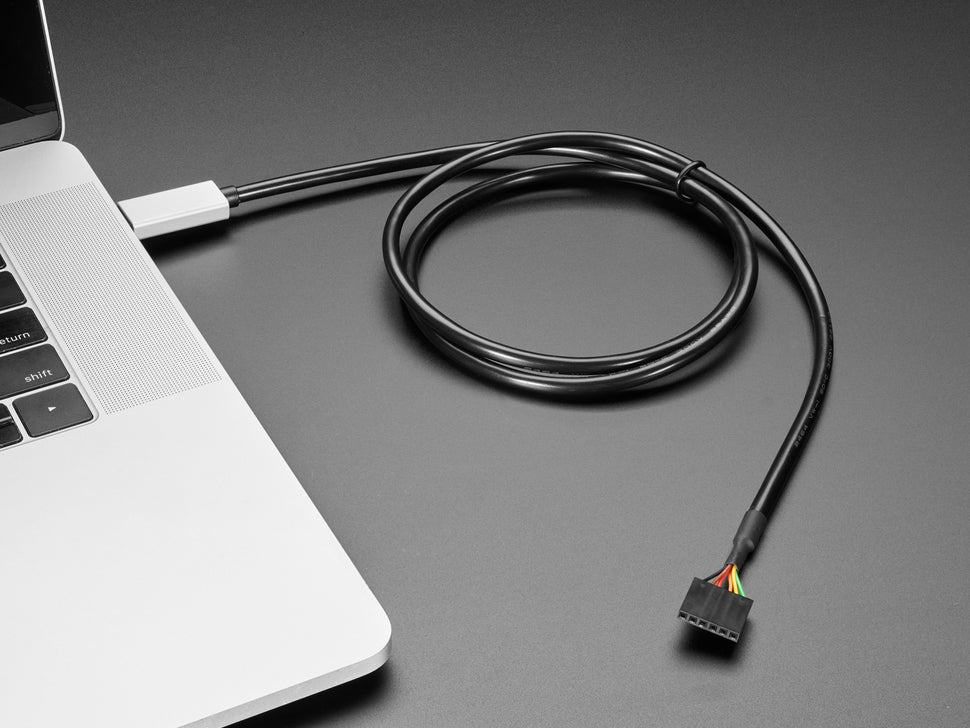

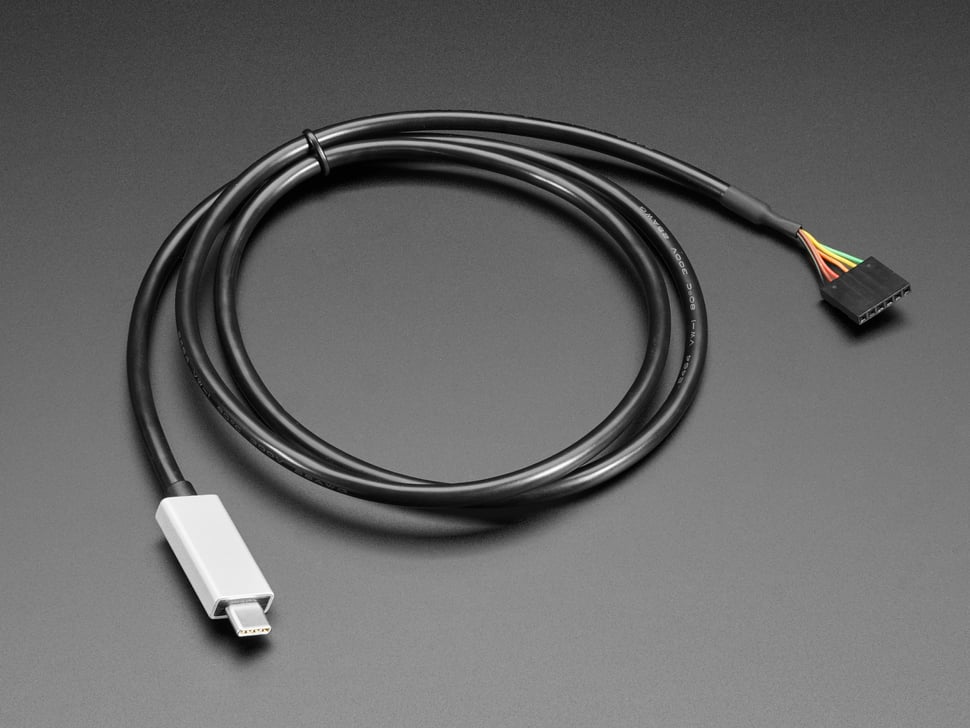

Just about all electronics use a UART serial port with RX and TX pins for debugging, bootloading, programming, and serial output, but it is rare for computers to have a built-in serial port. This FTDI Serial TTL-232 USB Type C Cable provides a convenient USB-C to TTL serial connection with an embedded FTDI FT232R USB/serial chip.

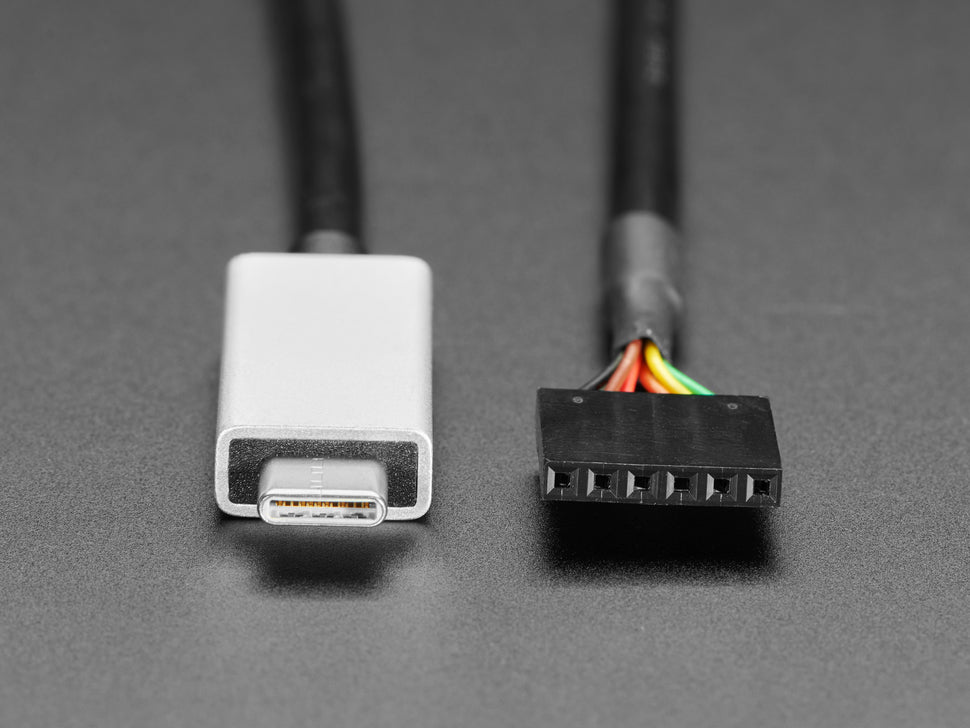

The 6-pin socket includes 5V power and ground along with 3.3V logic (5V compatible) RX, TX, RTS, and CTS signals, making it ideal for communication with TTL serial devices such as Arduino Pro Mini or ESP breakouts. The cable outputs data signals at 3V with 5V power line and supports 5V-friendly logic pins.

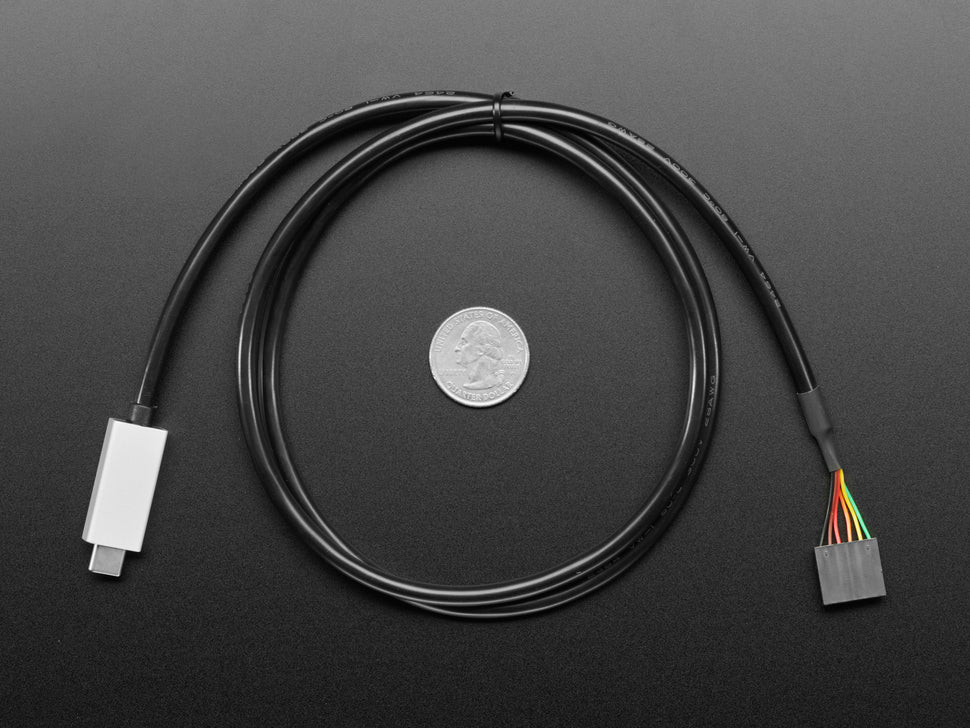

Featuring a 1-meter long 28AWG cable, the wiring is as follows:

• Black - GND
• Brown - CTS
• Red - VCC 5V @ 500mA
• Orange - TXD 3V logic level
• Yellow - RXD 3V logic level
• Green - RTS

It is a perfect tool for engineers who need a reliable and easy-to-use serial cable for devices requiring 5V power and 3.3V logic levels.

Download the datasheet here.
