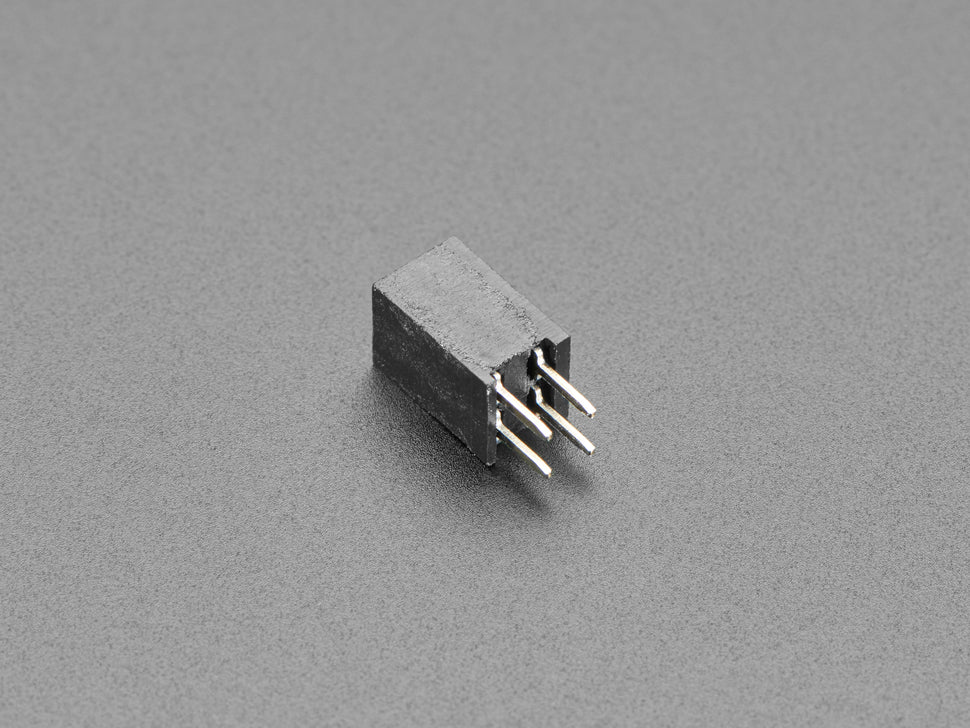

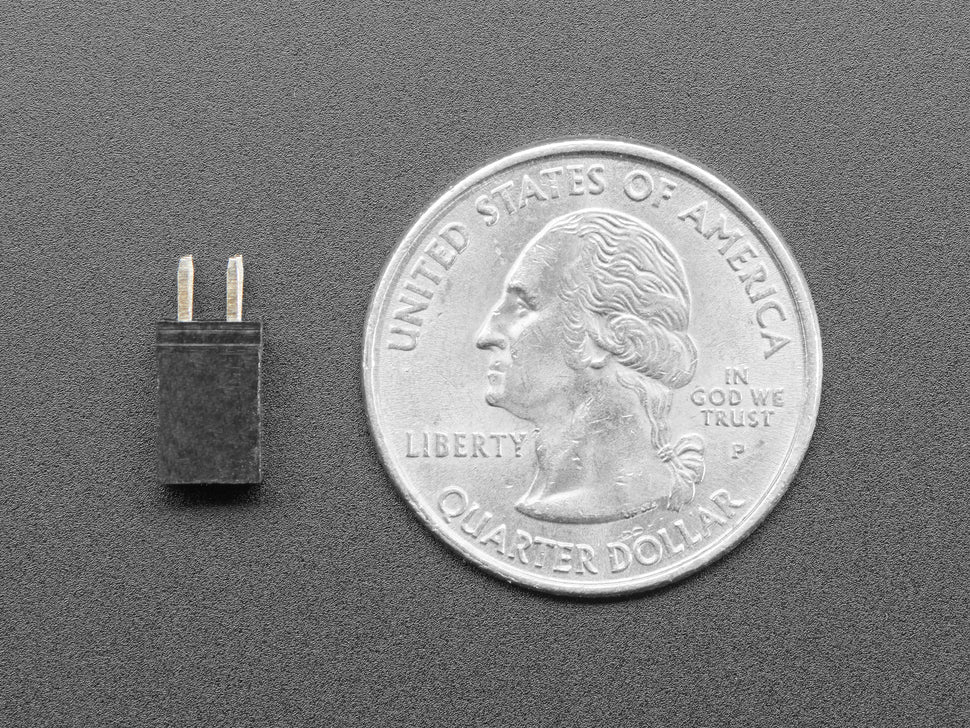

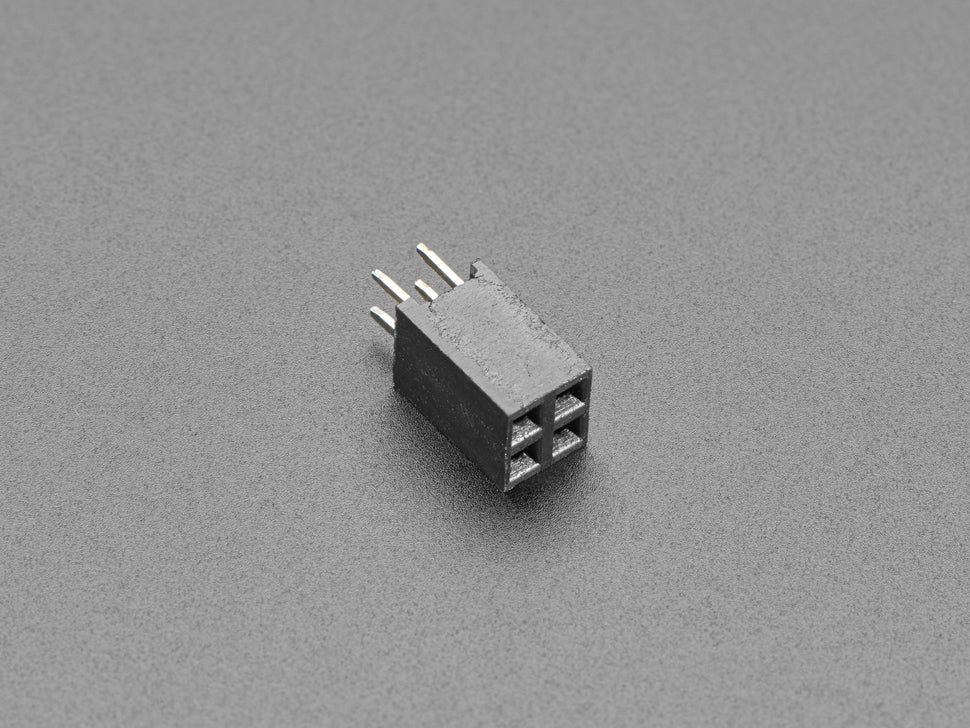

GPIO Female Socket Riser Header - 2x2 4-pin

This 0.1" inch pitch 2x2 Female Header is ideal for use with boards that utilize the 4-pin 'PoE' header on the Raspberry Pi 3 and later models, such as the Raspberry Pi PoE HAT. It pairs well with the 2x20 socket riser header to provide a full lift.

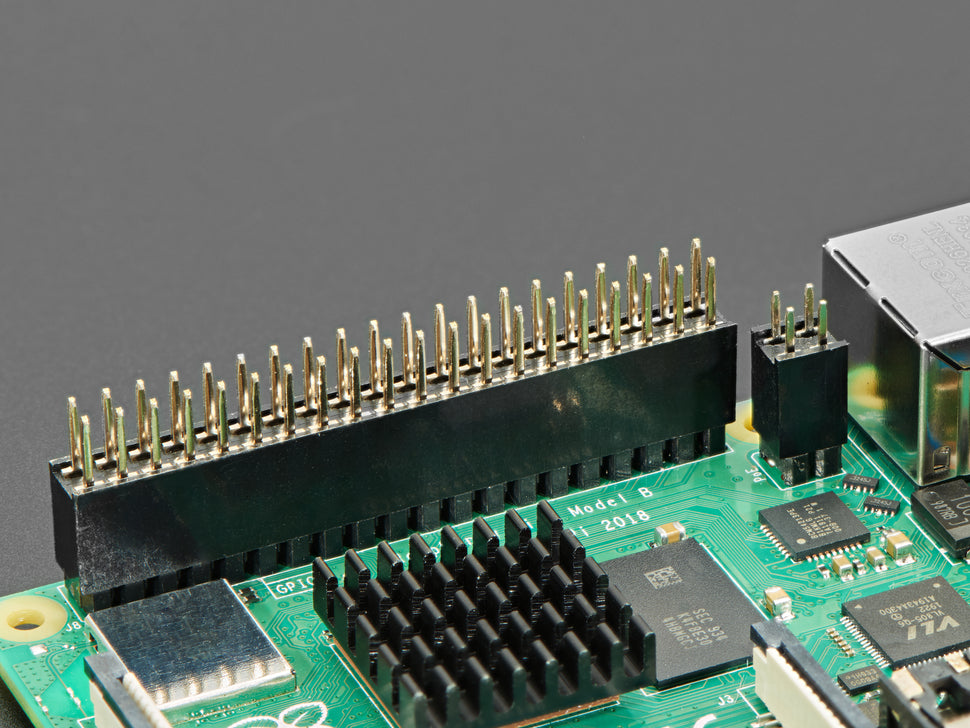

Use this compact GPIO header alongside a 40-pin stacking header to enable compatibility of the PoE HAT with an additional add-on board. It easily mounts onto the 4-pin header of Raspberry Pi 3 B+, 4, 5, and newer models.

One header included per order.

Features:

• 0.1" (2.54mm) pitch
• 2x2 (4-pin) female socket header
• Compatible with Raspberry Pi 3 B+, 4, 5, and newer
• Ideal for Raspberry Pi PoE HAT and extension
• Works well with 2x20 socket riser header

Technical Details:

• Overall Height: 11.7 mm
• Exposed Pin Length: 3.5 mm
• Body Height: 8.4 mm
