HDMI 4 Pi: 5" Display with Touch and Mini Driver - 800x480 HDMI

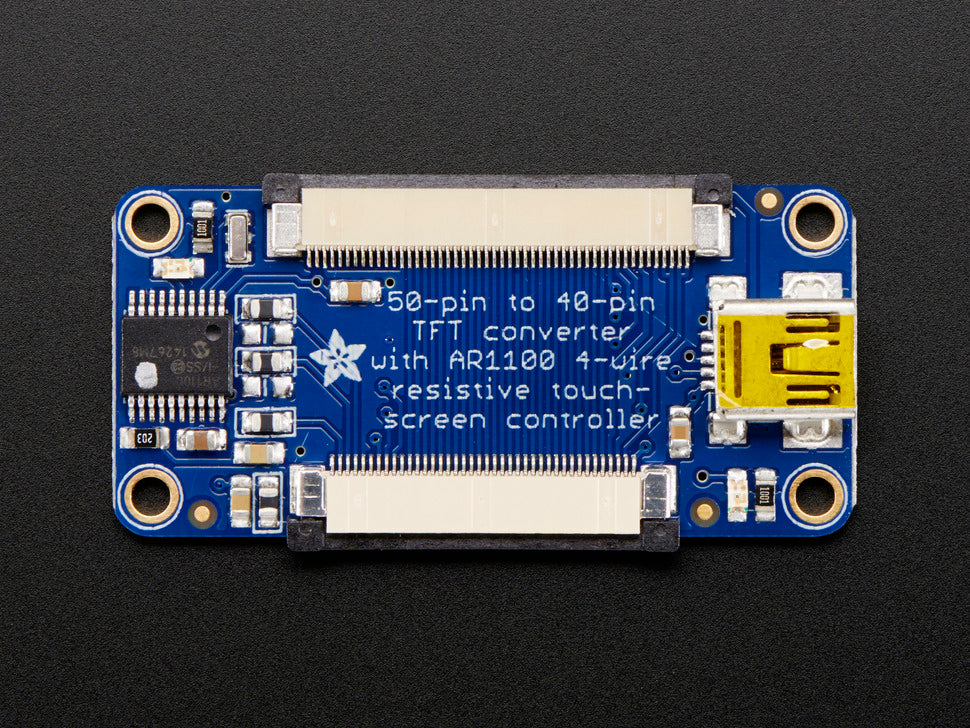

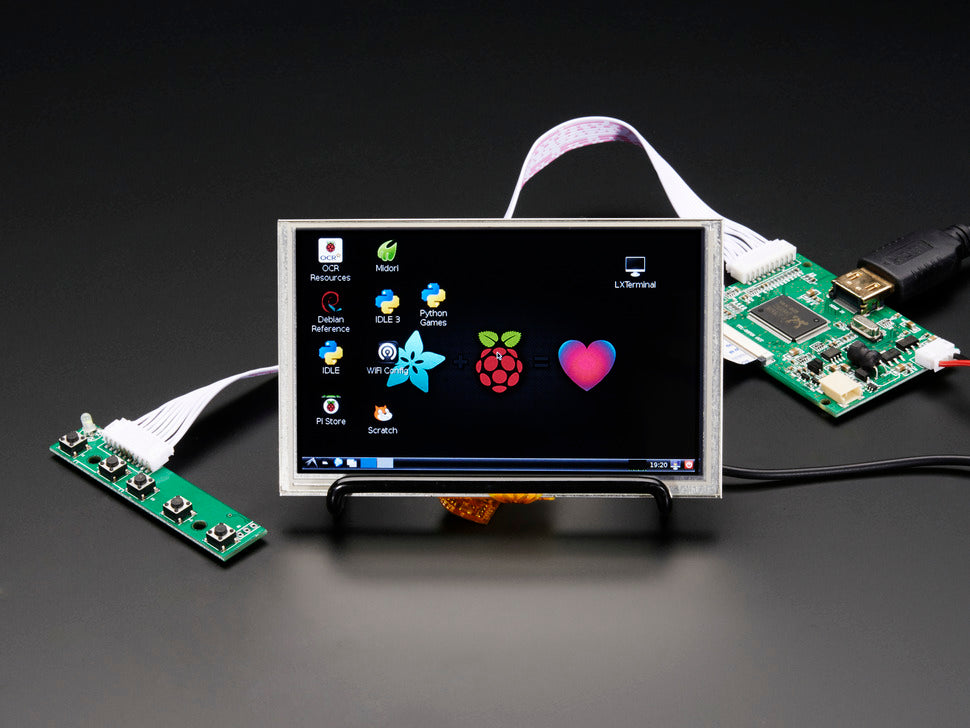

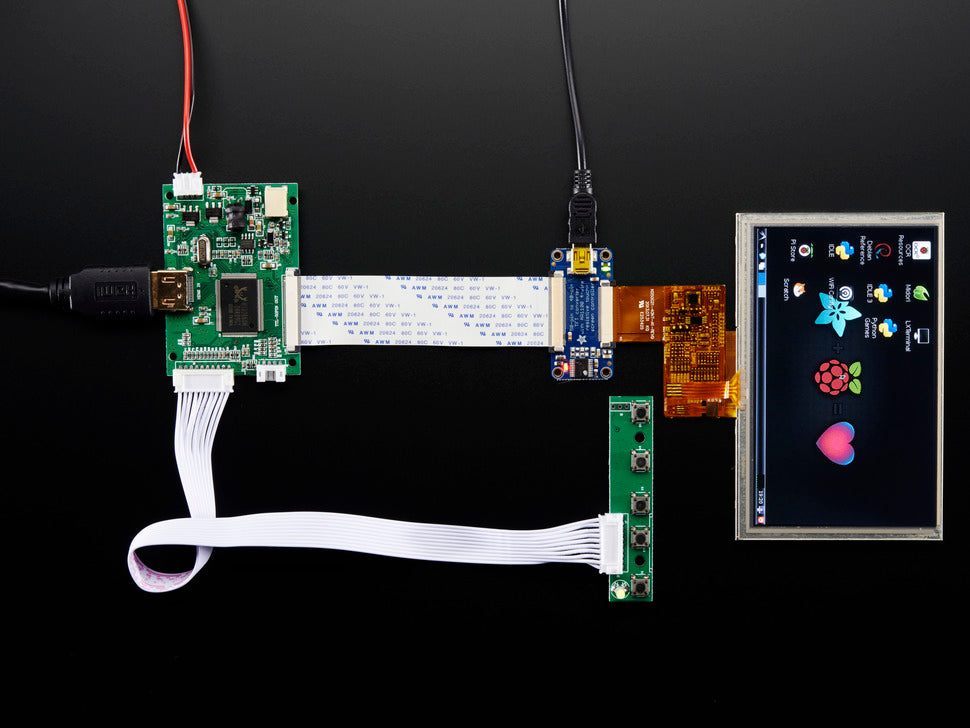

Yes, this is a cute little 5" TFT display with WVGA 800x480 resolution and it has a resistive touchscreen overlay. It comes with a small driver board and USB-enabled 40-pin to 50-pin touchscreen adapter board.

The screen is commonly seen in consumer electronics such as miniature TVs, GPSs, handheld games, and car displays. It has a 40-pin connector with 24-bit color capability. The driver board has HDMI input for Raspberry Pi, BeagleBone Black, and other computers, providing high-quality output.

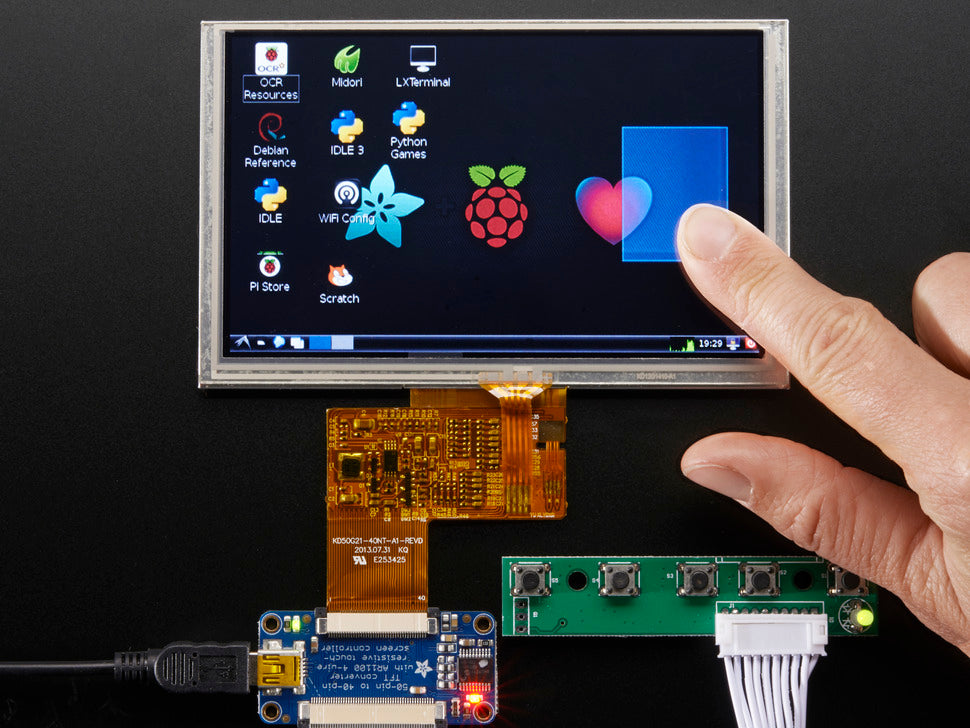

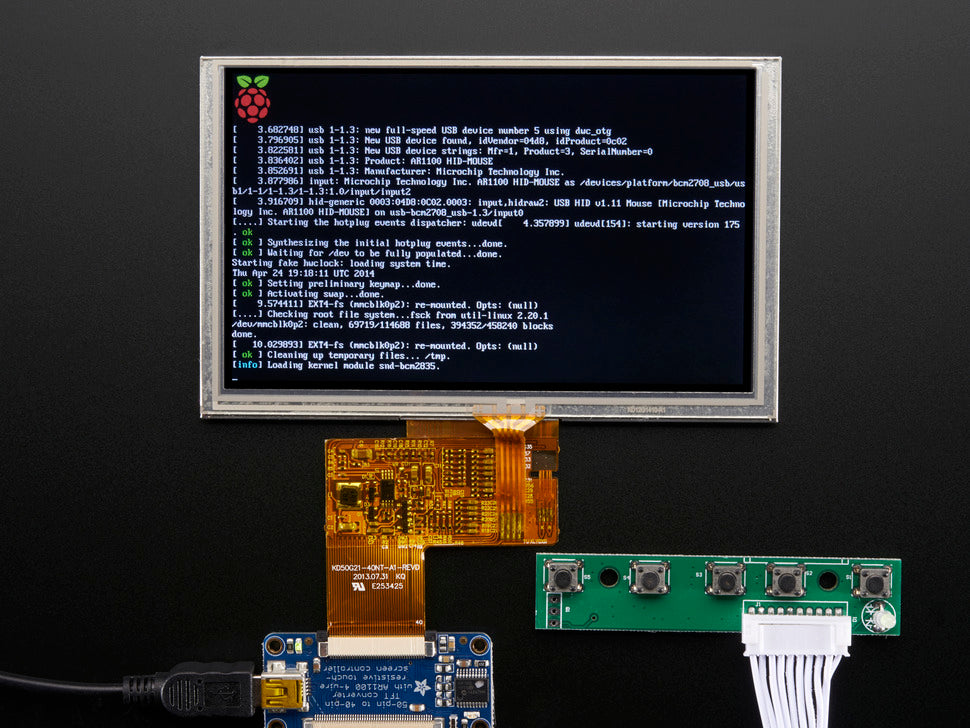

The touchscreen controller appears as a plain 'HID Mouse' device with plug-and-play calibration. A wired PCB with buttons allows brightness, color, and contrast adjustments. The display auto-detects inputs or can be manually selected.

For Raspberry Pi, it's suggested to edit config.txt for 800x480 resolution. The display works without configuration on Beagle Bone Black. A power adapter is not included; a 5V, 500mA USB power source is required along with a Mini B USB cable for the touchscreen sensor.

• 5" TFT display with 800x480 WVGA resolution
• Resistive touchscreen overlay
• Includes driver board and USB-enabled 40-pin to 50-pin touchscreen adapter
• HDMI input compatible with Raspberry Pi, BeagleBone Black, and other HDMI devices
• Touchscreen controller recognized as HID Mouse for easy plug-and-play
• Adjustable brightness, color, and contrast with onboard buttons
• Power requirement: 5V, 500mA (USB powered, power adapter not included)
• Screen dimensions: 121mm x 76mm x 4mm (4.8" x 3.0" x 0.2")
• Mini driver board dimensions: 50mm x 71mm x 2mm (2" x 2.8" x 0.08")
• Brightness: 200cd/m2, Contrast: 300:1
• Not HDCP compatible (does not work with secured HDMI sources)

For more technical details and support, please refer to the Adafruit HDMI Display ÜBERGUIDE and AR1100 Resistive Touch Screen Controller Guide available on the Adafruit Learn site.

Note: This product is currently Out of Stock. You may request notification when it becomes available.
