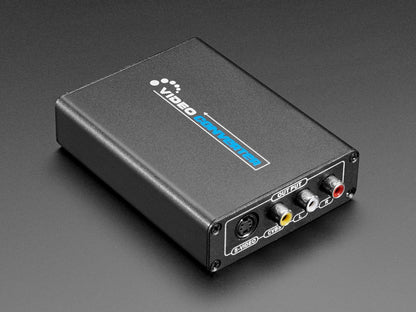

HDMI to RCA Audio and CVBS NTSC, PAL, or S-Video Converter

Convert your HDMI output to analog video formats such as S-Video or RCA composite with this versatile HDMI to RCA audio and CVBS video converter. Perfect for connecting HDMI-only devices to older S-Video displays, projectors, or monitors that do not support HDMI input.

This mini converter supports selectable output modes (Composite Video or S-Video) and selectable video standards (NTSC or PAL), providing flexible options to match your analog video equipment.

• Compatible with HDMI 1.3 (does not support 3D or HDCP)
• Supports input HDMI resolutions: 480p (60Hz), 576p (50Hz), 720p (50/60Hz), 1080i (50/60Hz), and 1080p (50/60Hz)
• Outputs stereo line level audio (Left and Right) alongside Composite Video or S-Video
• Selectable output video systems: PAL or NTSC
• Output video impedance: 75Ω
• Powered by DC 5V (2.1mm power supply included)
• Operating temperature range: -25°C to 75°C
• Operating humidity: 10%–60%

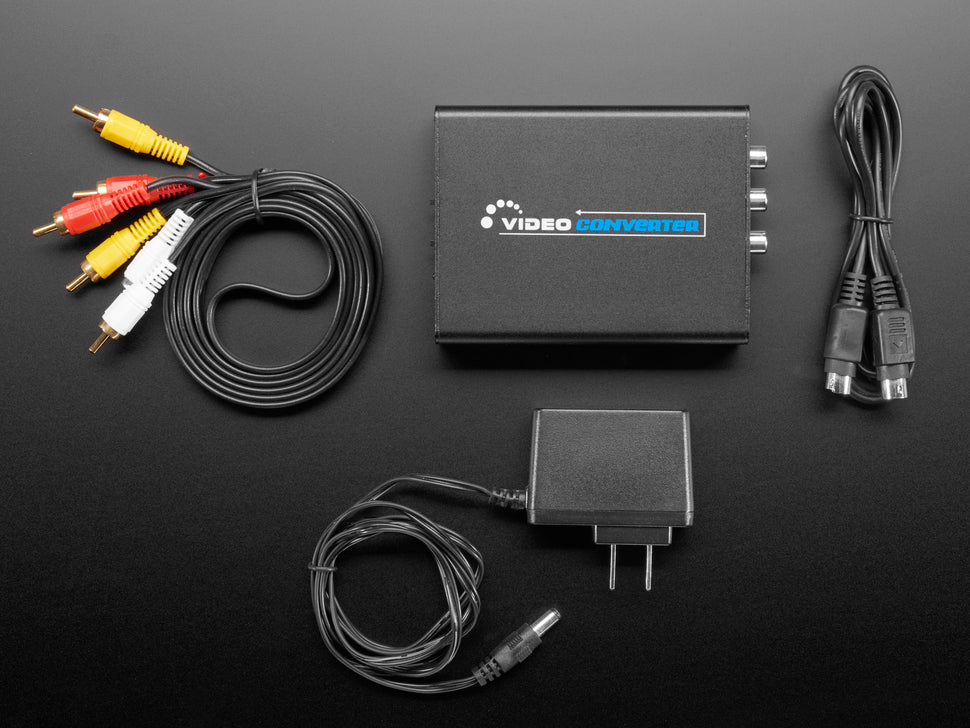

• Package includes: Converter box, 5V power supply, 3-channel AV cable, S-Video cable, and user manual

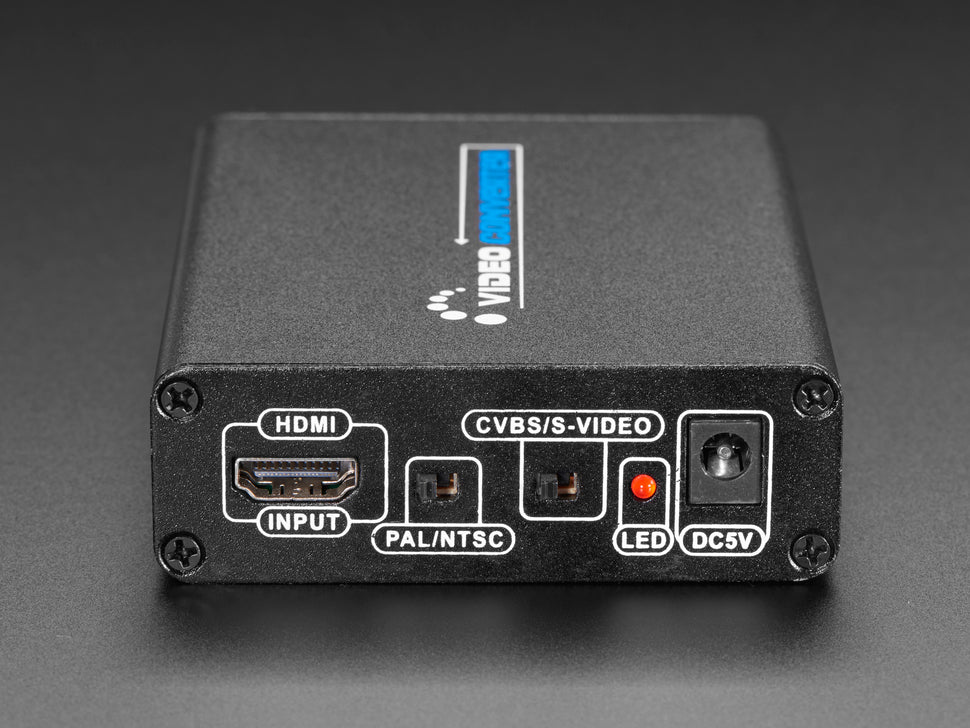

Note: This unit does not support simultaneous output of Composite and S-Video signals; choose one output mode via the side switch.
