JST PH 2mm 4-Pin to Male Header Cable - I2C STEMMA Cable - 200mm

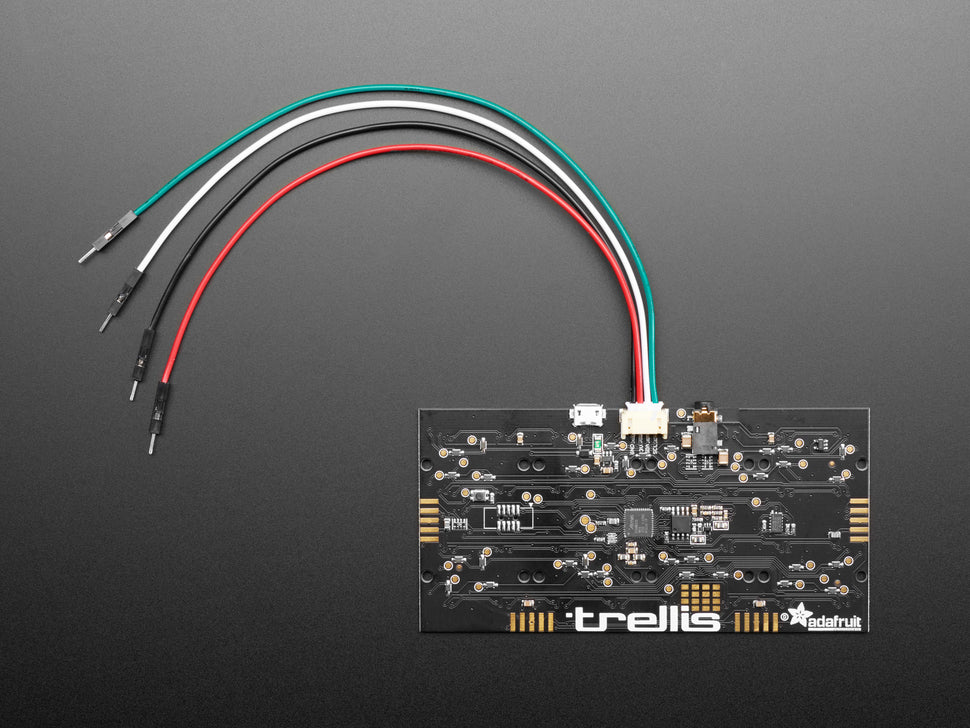

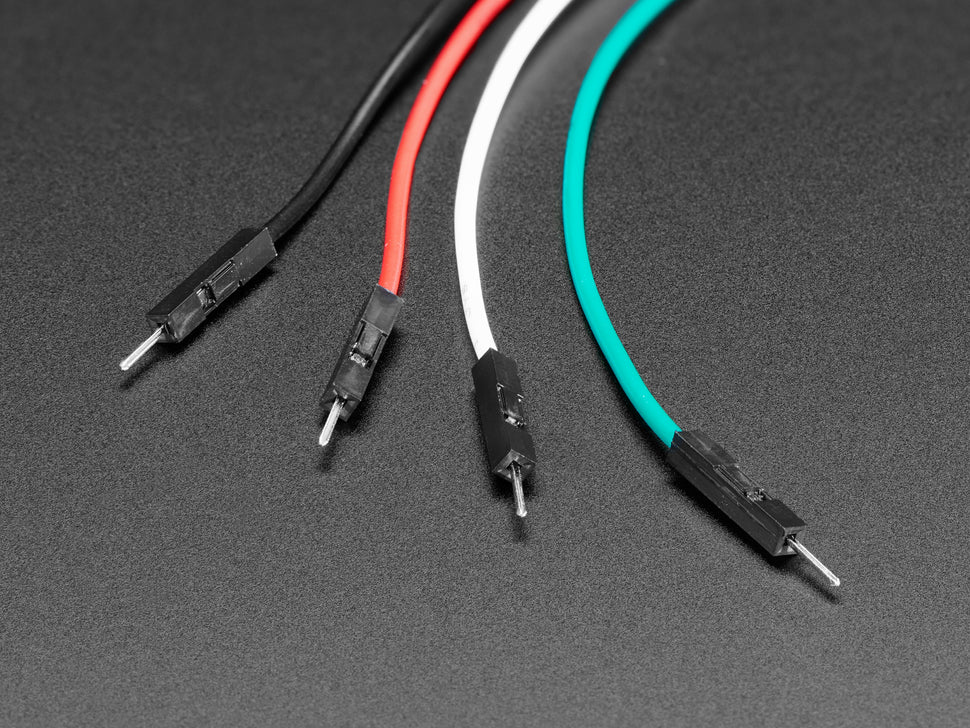

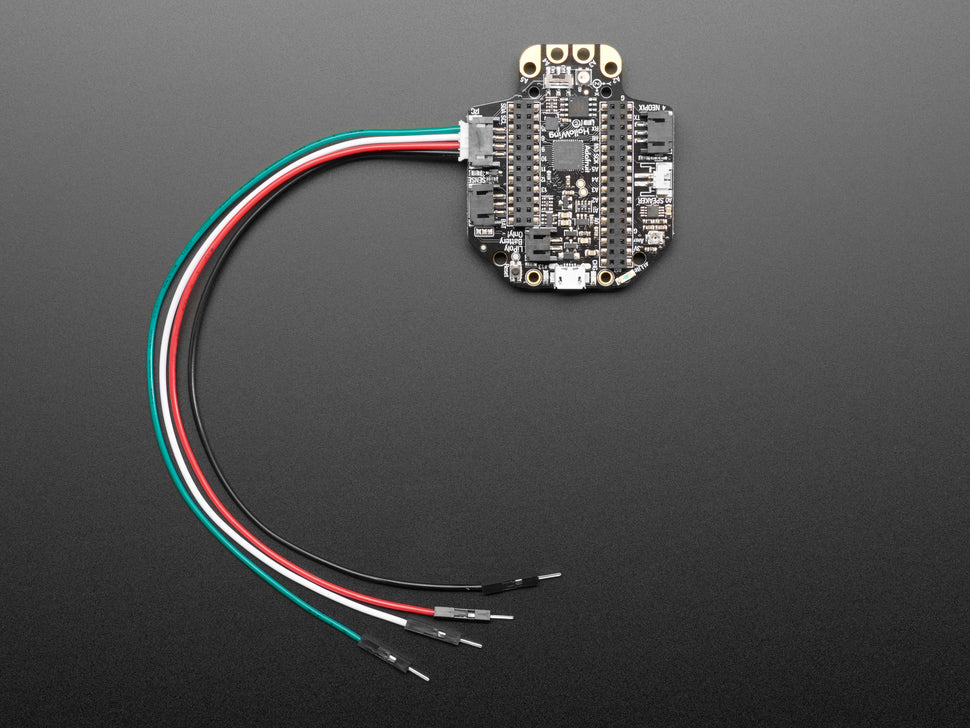

This cable converts a JST PH 4-pin cable port into 4 individual wires with high-quality 0.1" male header plugs. It is designed for use with any boards featuring 'STEMMA' connectors, such as the Hallowing or Trellis M4, and can also be used with STEMMA breakouts. With male header pins, it connects easily to socket headers or breadboards.

• Color-coded wires for easy identification: Black for GND, Red for V+, White for SDA, Green for SCL

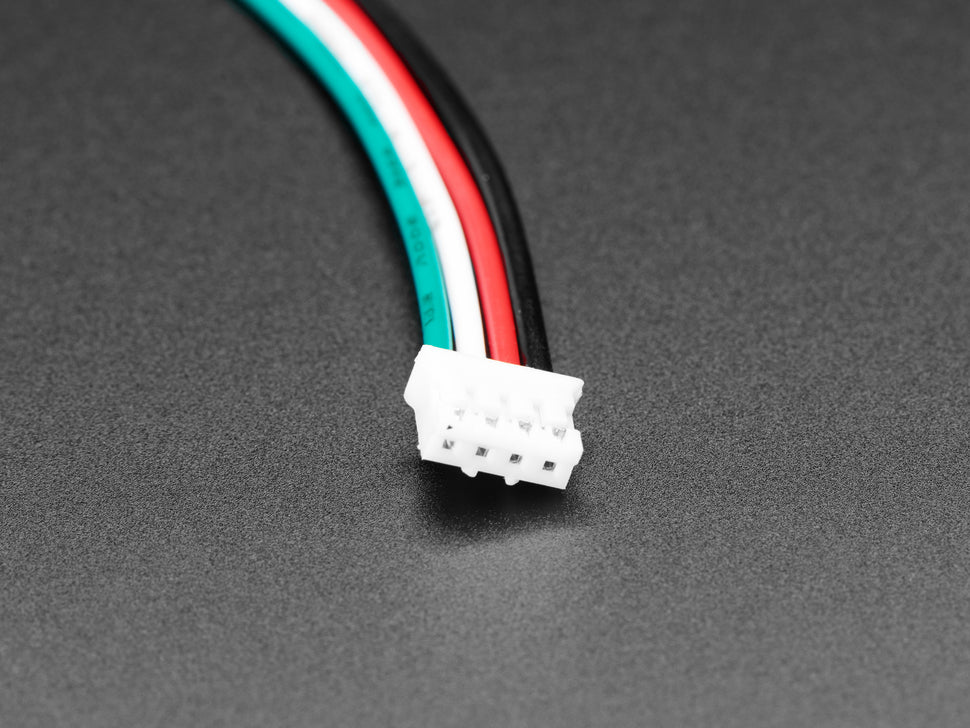

• Fits JST PH connectors and is compatible with Seeed Grove connectors with matching wires

See also the version with female headers available here. For more information about JST PH connectors, visit the JST website.

Technical Details

• Wire Length: 7.8" / 200mm
• Wire Diameter: 1.6mm
• JST Connector Width: 8.5mm
• JST Pitch: 2mm
• Wire Gauge: 22 AWG
