Kitronik 3.5mm Jack - Deluxe Stereo Amplifier Kit

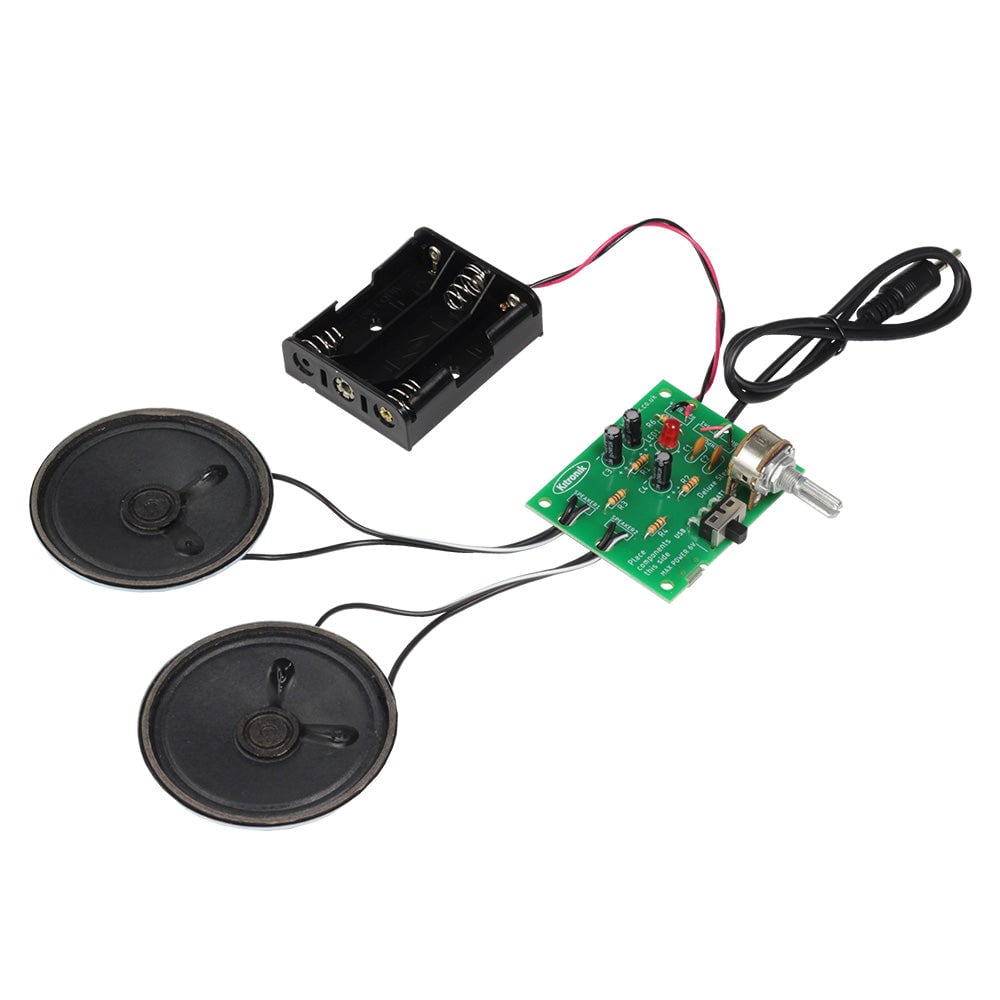

The Kitronik 3.5mm Jack Deluxe Stereo Amplifier Kit is a versatile and educational electronics kit designed for personal stereo equipment such as MP3 players and mobile devices with a 3.5mm jack socket. Perfect for classroom use, this kit helps teach electronics and product design with comprehensive documentation available for both teachers and students.

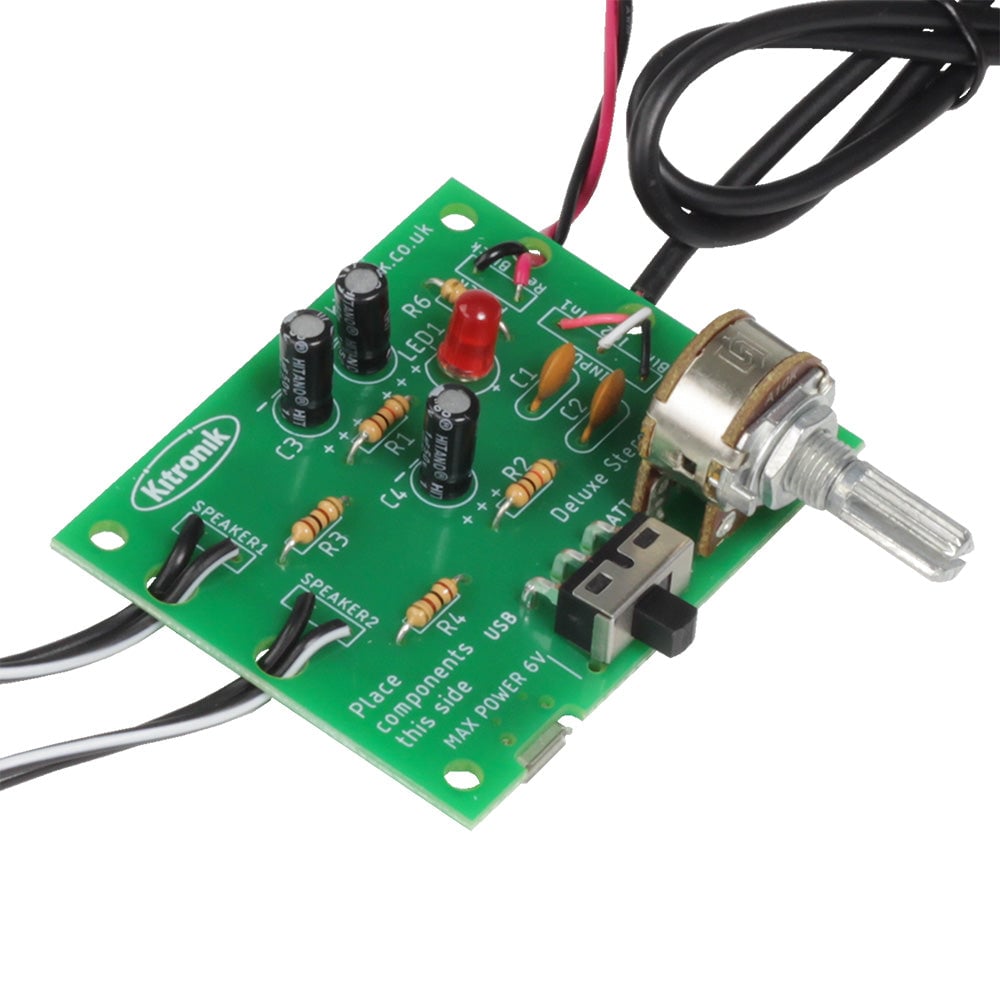

The amplifier features two FM8002A mono amplifier ICs pre-mounted on the PCB, delivering 1.5W per channel into 8Ω speakers. Additional features include an on/off switch with status LED, a dual wipe potentiometer volume control, and M3 mounting holes for easy enclosure attachment.

The kit is supplied with a 3xAA battery holder (batteries not included) and can be powered by a standard 5V USB power supply, drawing less than 100mA. Assembly and soldering are required to complete the build.

• 1.5W per channel stereo amplifier
• Compatible with personal stereo devices with 3.5mm jack
• Designed for educational use with detailed documentation
• Includes 2 x FM8002A mono amplifier ICs pre-fitted on PCB
• Supplied with 3xAA battery holder (batteries not included)
• On/off switch with status LED and dual wipe potentiometer volume control
• M3 mounting holes for secure enclosure attachment
• PCB dimensions: 62mm x 50mm
• Requires soldering for assembly

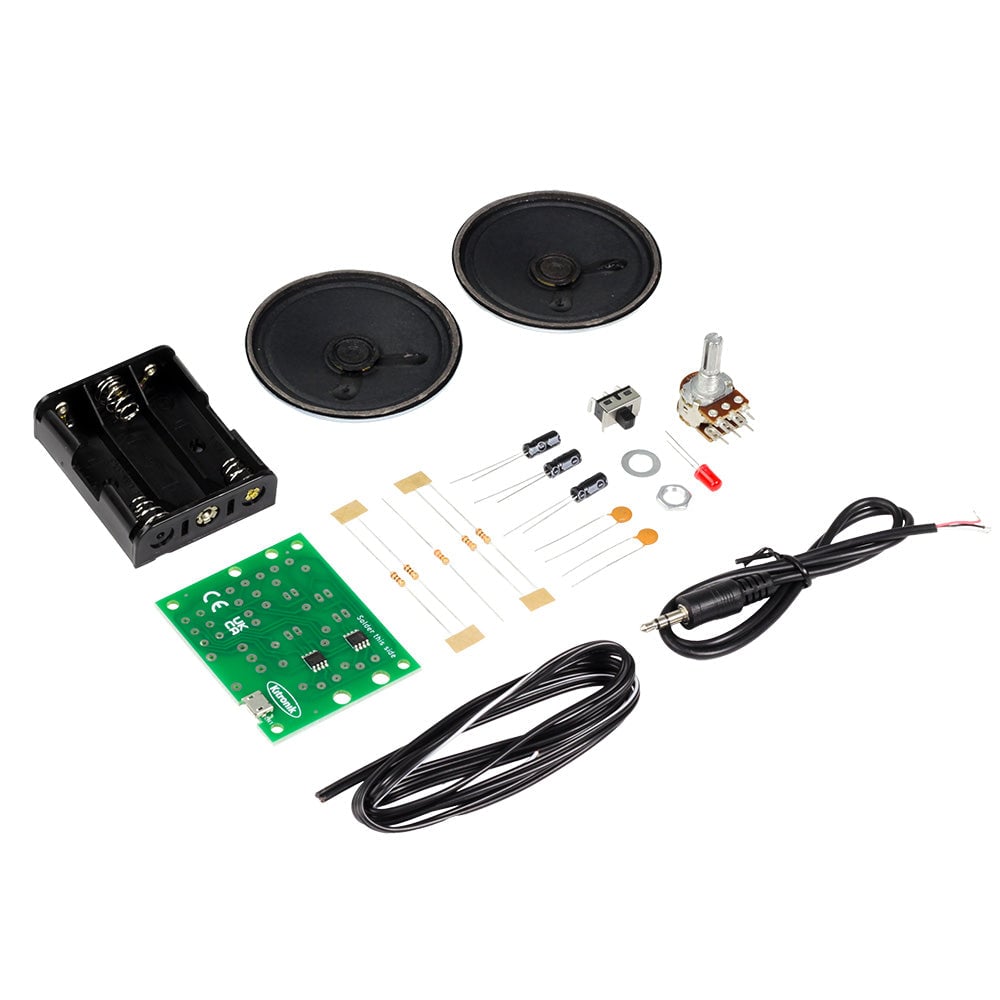

Kit Contents:

• Red 5mm diffused LED – 275mCd
• PCB mount slide switch
• Dual wipe potentiometer, 10K
• Resistors: 1 x 330Ω, 2 x 1KΩ, 2 x 100Ω
• Ceramic Capacitors: 2 x 100nF, 50V
• Electrolytic Capacitors: 3 x 1µF, 50V
• Stereo Amp Cable
• 3xAA Battery Holder with Flying Leads
• 2 x 8Ω 66mm Speakers
• 1m Figure 8 speaker cable
• Stereo Amplifier PCB with SMT parts pre-fitted
