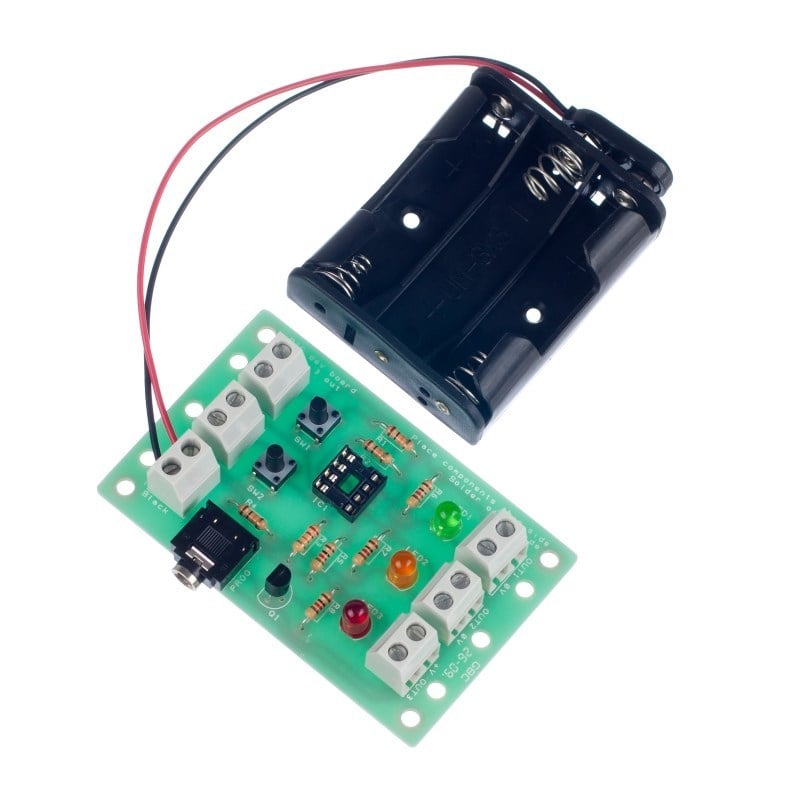

Kitronik 8 Pin PIC Development Board (2 in, 3 out)

The Kitronik 8 Pin PIC Development Board is designed as a larger development platform to complement the smaller project board. It allows users to attach inputs and outputs via terminal blocks to develop and test PIC software projects without soldering. Once the design is finalized, it can be transferred to the project board with soldered peripherals. This development board is reusable for future projects.

Features:

• Compatible with most educational flowcharting systems.
• Supports connection of devices such as LEDs, sounders, and motors to outputs.
• Reusable development platform for multiple projects.
• Includes teaching notes with projects like decision maker, traffic light, timer, quiz buzzer, alarm, and timed fan.

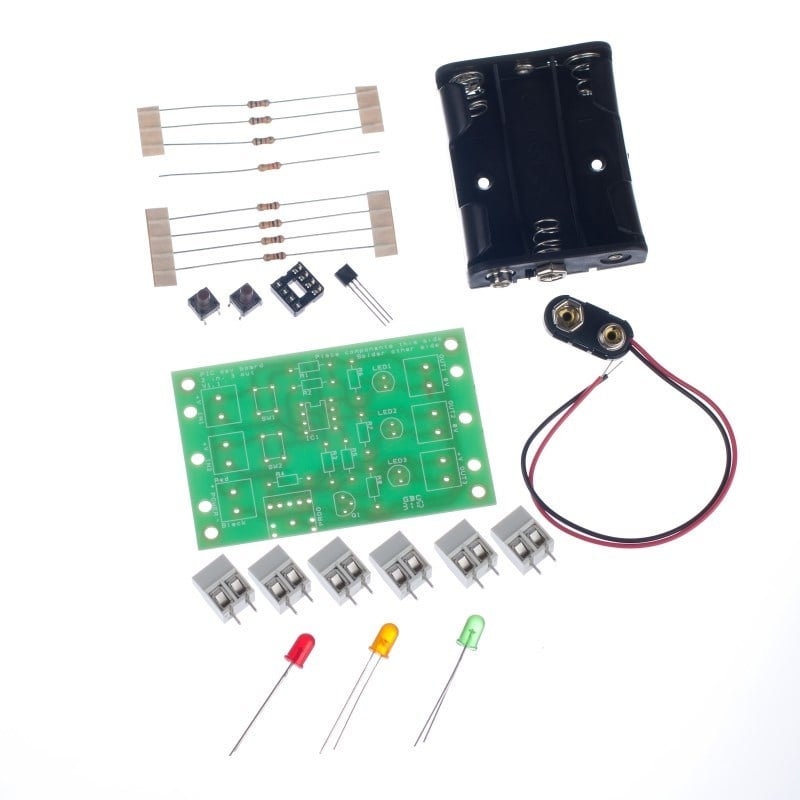

Kit Contents:

• 4 x 1KΩ Resistors
• 3 x 10KΩ Resistors
• 1 x 22KΩ Resistor
• 1 x BC337 NPN Transistor
• 2 x 6mm PCB Mount Tactile Switch
• 1 x 3.5mm PCB Mount Jack Socket
• 6 x Two Way Terminal Blocks
• 1 x 8 Pin IC Socket
• 1 x Heavy duty PP3 Clip Lead
• 1 x 3AA Battery Cage with Clip
• 1 x Red Low Current LED
• 1 x Green Low Current LED
• 1 x Yellow Low Current LED
• 1 x PIC development board PCB

Dimensions:

• PCB Length: 76mm
• PCB Width: 48mm

Requirements:

• Your choice of processor (PICAXE or GENIE, not included)
• PICAXE or GENIE programming software and lead
• 3 x AA Batteries
• Soldering iron and solder
• Wire cutters

Note: This kit requires soldering. Processor not included.
