Kitronik Clippable 360 Degree Servo
Couldn't load pickup availability
Description

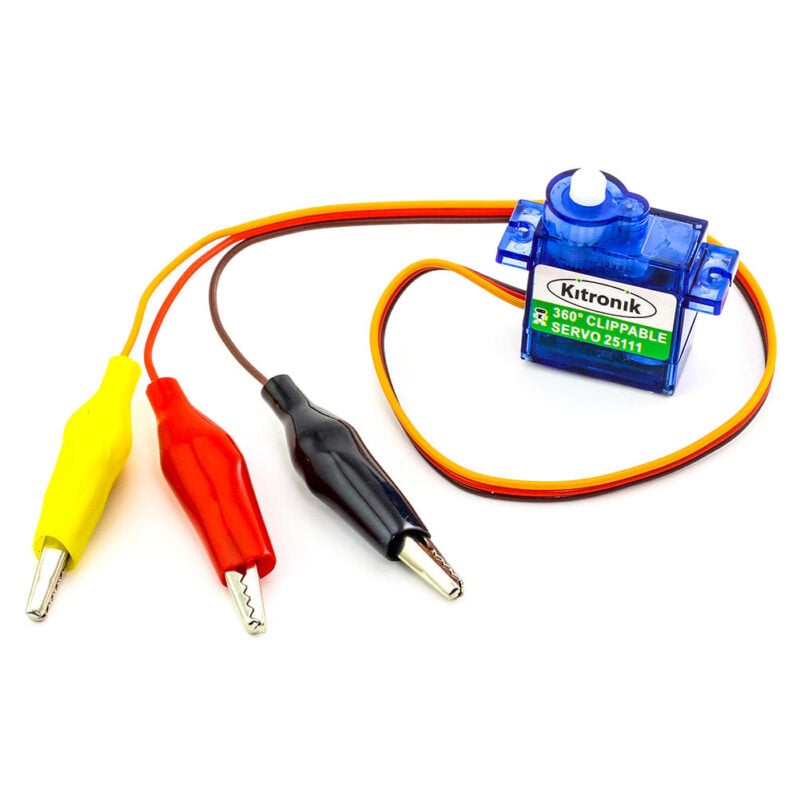

The Kitronik Clippable 360 Degree Servo is a versatile servo motor designed with crocodile clip connections instead of the standard pin header, making it ideal for projects that utilize clippable connection points such as the Kitronik Klip Motor Driver.
This servo features plastic gears that are lightweight and suitable for most applications, providing approximately 360 degrees of rotation. It operates at a voltage range of 4.8V to 6V and delivers a maximum stall torque of 1.5kg.cm at 6V.
This product is perfect for use in RC models, robotics projects and works seamlessly with micro:bit using MakeCode or Python editors. The servo is supplied with four horns and fixings to enable easy integration into your projects without the need to create custom horns.
Features:
- Crocodile clips replace the standard pin header for easy clippable connections.
- Compact size with high power output (1.5kg.cm@6V).
- Compatible with MakeCode and Python editors for micro:bit.
- Ideal for RC models and robotics projects.
- Provides 360 degrees of rotation.
- Operating voltage: 4.8V – 6V.
- Works with Kitronik clippable micro:bit accessories such as the Klip Motor Driver.

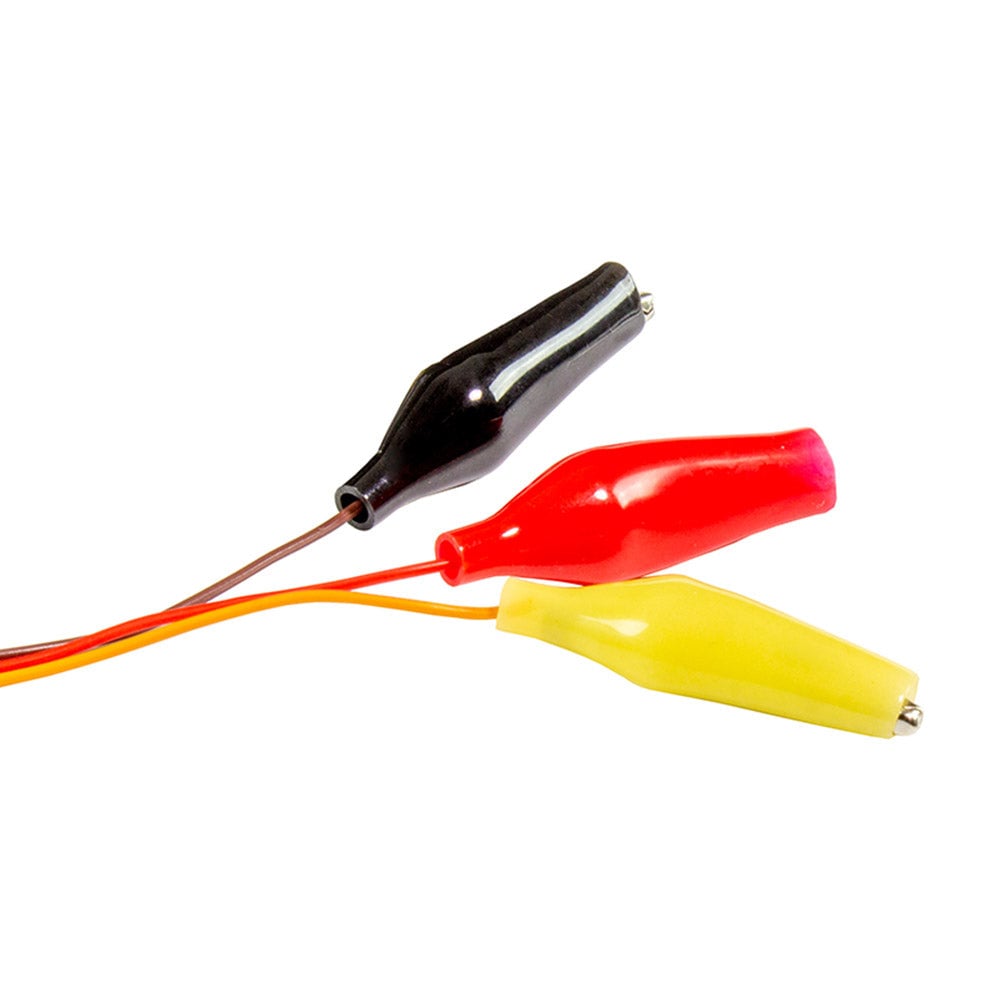

Pin Assignments:
| Servo Wire Colour | Clip Cover Colour | Connection Type |
|---|---|---|
| Brown Wire | Black Clip Cover | GND |
| Red Wire | Red Clip Cover | +ve |
| Orange Wire | Yellow Clip Cover | Signal |
Contents:

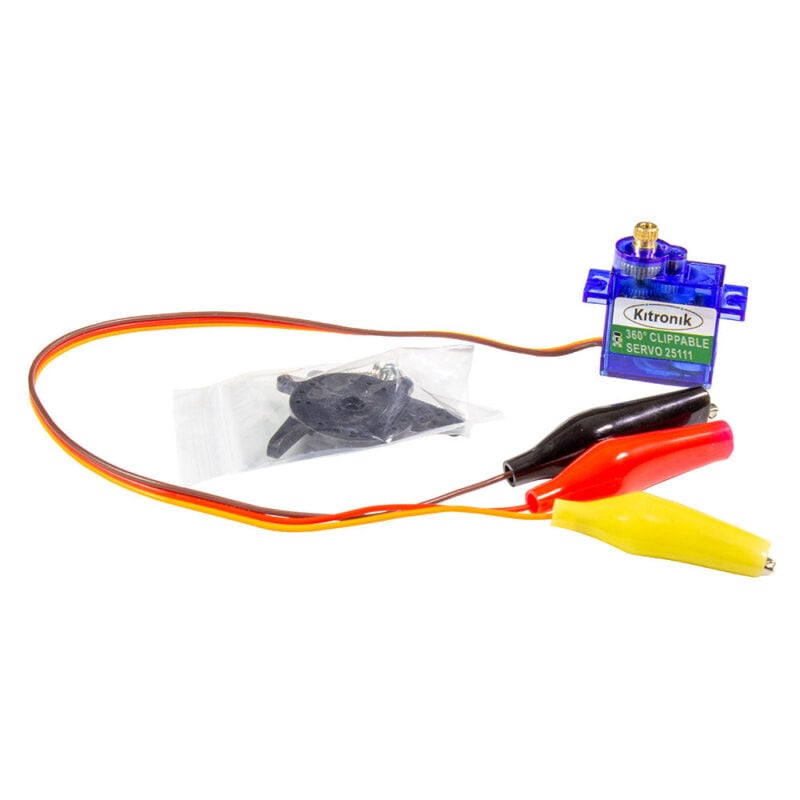

- 1 x Kitronik Clippable 360 Servo with 4 horns and fixings.
Dimensions:
- Length: 22.5mm
- Width: 12.1mm
- Height: 30.7mm
- Lead Length: 250mm
- Clip Length: 34mm
Important Note:
This servo requires a separate power supply from the controlling micro:bit. Powering this servo directly from the micro:bit can cause permanent damage to the micro:bit.
