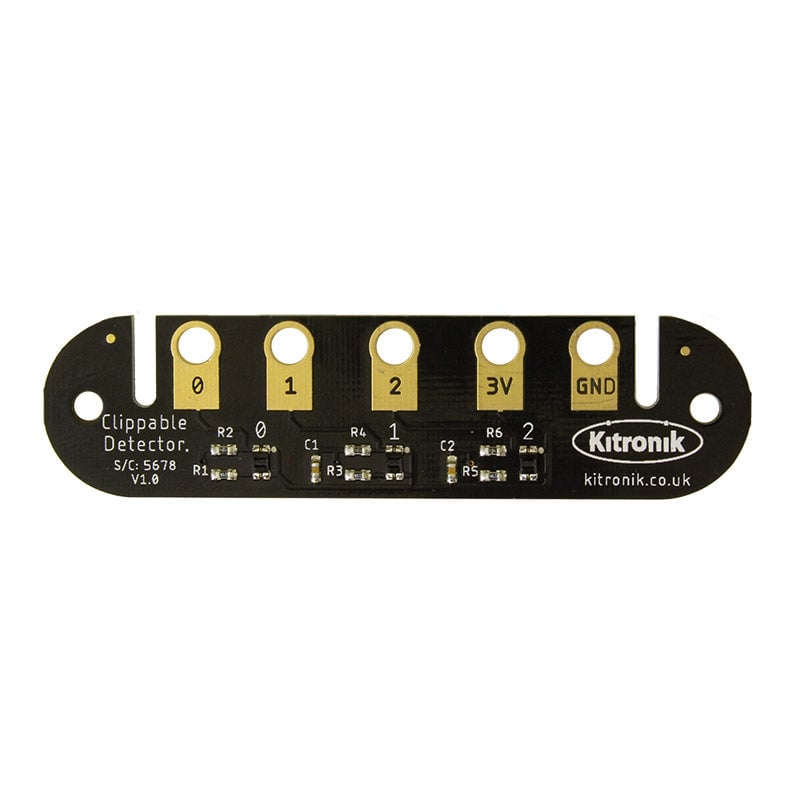

Kitronik Clippable Detector Board V1.0 for BBC micro:bit

The Kitronik Clippable Detector Board V1.0 is designed for the BBC micro:bit and detects light, objects, and can follow lines using three phototransistor sensors. It measures the reflectiveness of different surfaces and provides analogue voltage outputs to the micro:bit.

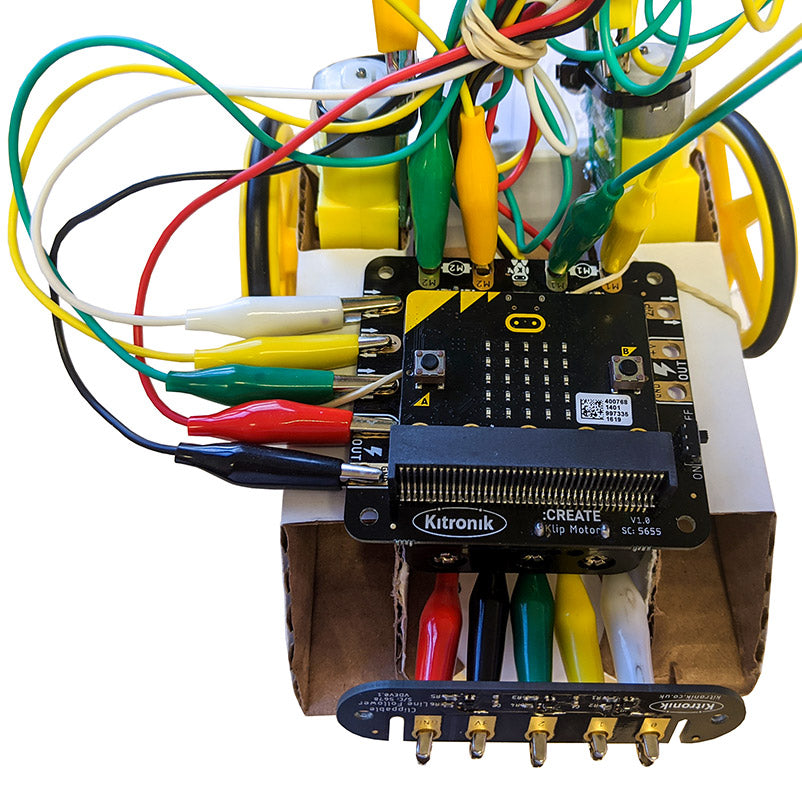

This board is compatible directly with the BBC micro:bit and compatible Kitronik boards like the Klip Motor Board.

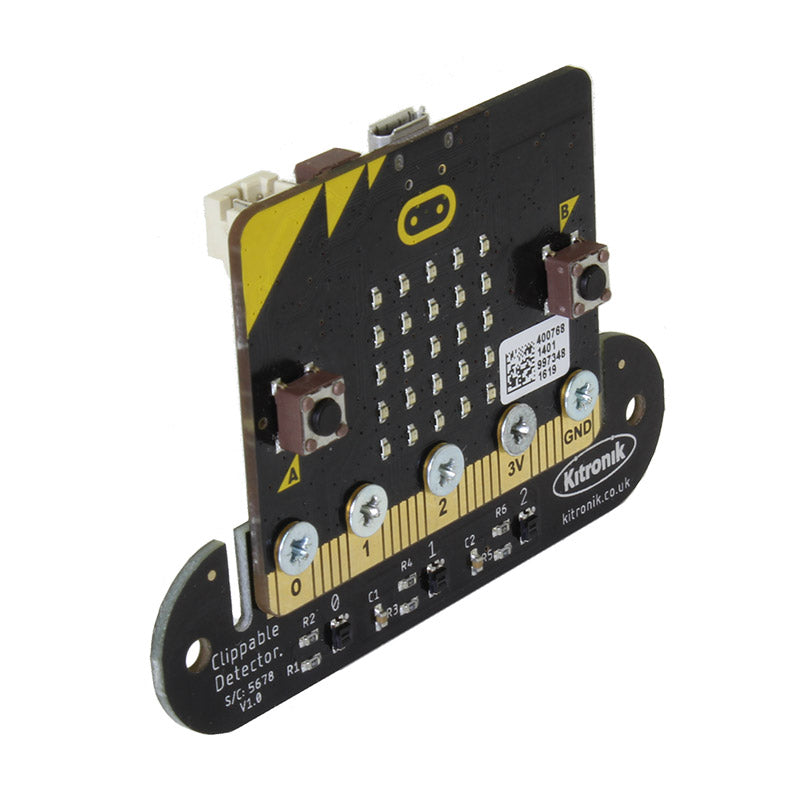

Connect the board to the micro:bit using bolts or crocodile clip leads and program it using custom MakeCode blocks or MicroPython.

Features:

• Detect light, objects, or follow lines using 3 phototransistor sensors.
• Compatible with BBC micro:bit and Kitronik boards.
• Custom MakeCode blocks available for easy coding.
• Supports MicroPython programming with example code on GitHub.

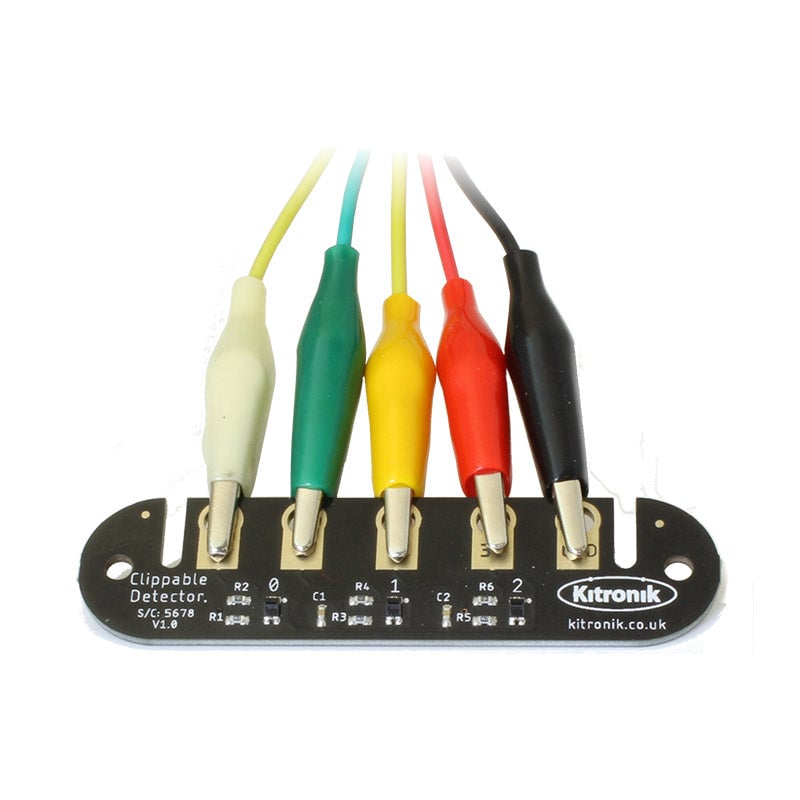

• Connect via bolts or crocodile clip leads.

Contents:

• 1 x Clippable Detector Board for BBC micro:bit.

Dimensions:

• Length: 77mm
• Width: 20mm
• Height: 2.8mm
• Mounting Hole Diameter: 3mm

Specifications:

• Operating Voltage (Vcc): 2V - 5.5V
• Number of Output Channels: 3
• Max Current (at 3V): 54mA
• Pin P0, P1, P2: Sensor analog output
• 3V: Voltage supply
• GND: Ground connection

Requirements:

• BBC micro:bit
• Micro USB Cable
• Crocodile clip leads (if not bolt connected)
