Kitronik Clippable Servo FS90MG-CL 180 Degree
Couldn't load pickup availability
Description

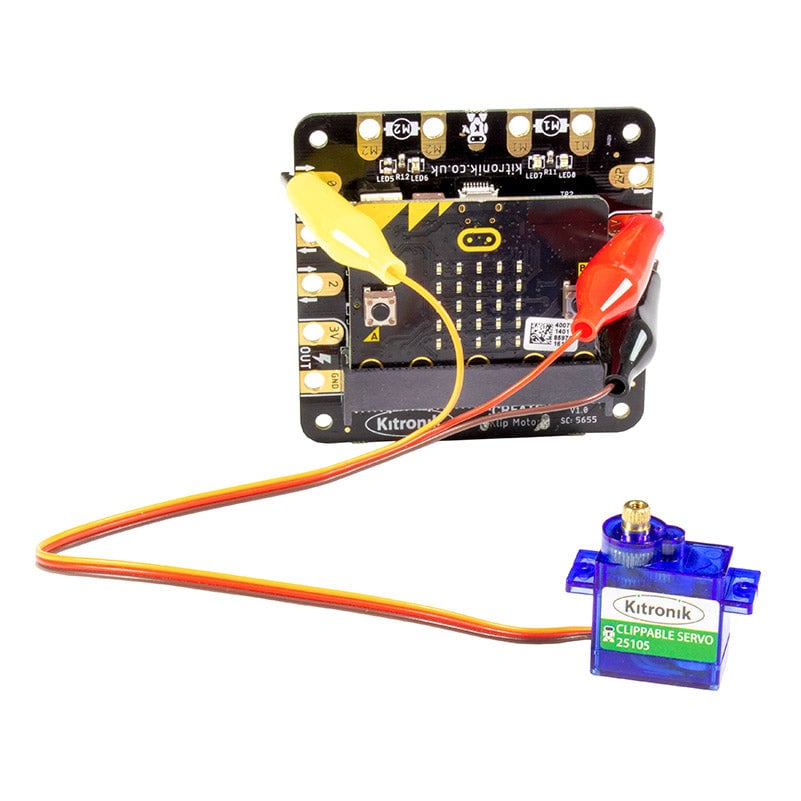

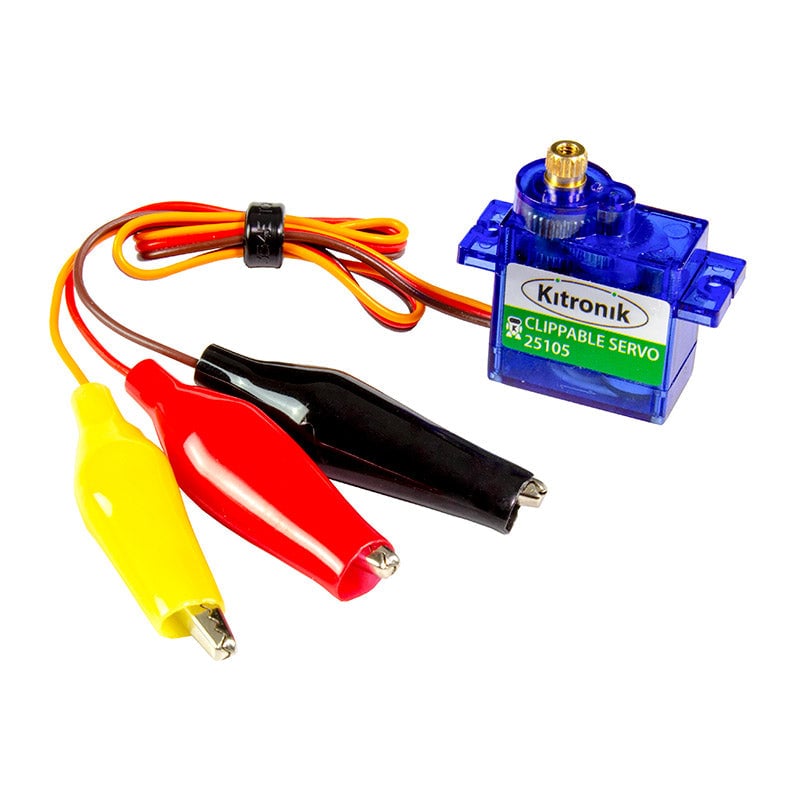

The Kitronik Clippable Servo replaces the standard pin header with crocodile clips for easy connection to clippable connection points, such as the Kitronik Klip Motor Driver. Based on the Feetech FS90MG-CL, this 180-degree rotation servo features durable metal gears and is rated to operate between 4.8V and 6V, delivering output torque between 1.8kg and 2.2kg.
Ideal for micro:bit projects, robotics, and RC models, the servo supports standard 180-degree servo code and can be programmed using MakeCode or Python editors.
- Crocodile clips for easy connection
- High power output: 1.8kg torque at 4.8V, 2.2kg at 6V
- Metal gears for durability
- Compatible with MakeCode and Python editors
- 180 degrees rotation (90 degrees each direction)
- Operating voltage: 4.8V – 6V
- Includes 4 servo horns and fixings
- Requires separate power supply when used with micro:bit
Pin Assignments:

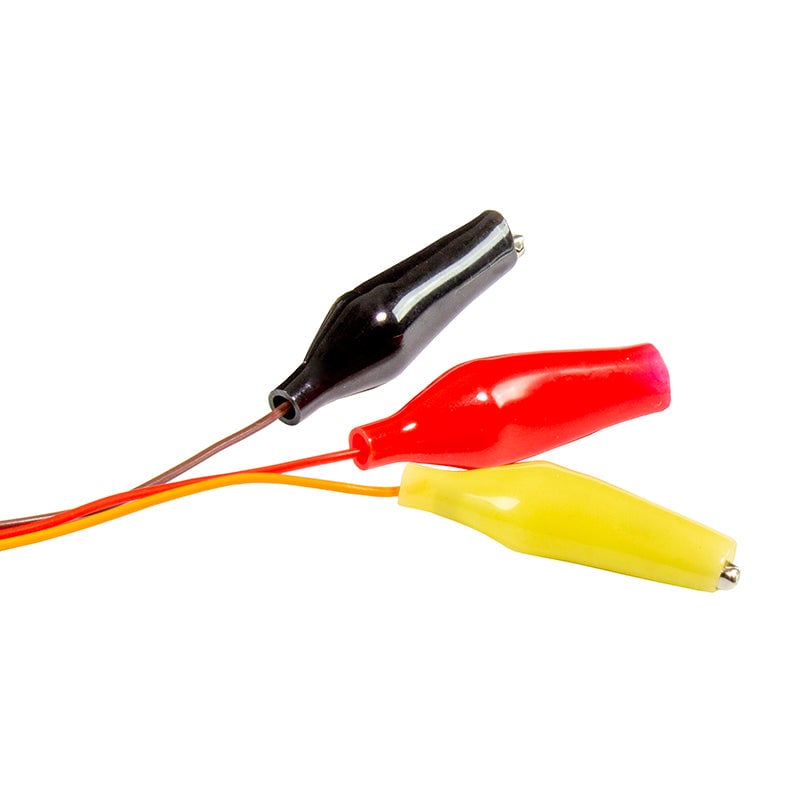

| Servo Wire Colour | Clip Cover Colour | Connection Type |
|---|---|---|
| Brown Wire | Black Clip Cover | GND |
| Red Wire | Red Clip Cover | +ve |
| Orange Wire | Yellow Clip Cover | Signal |

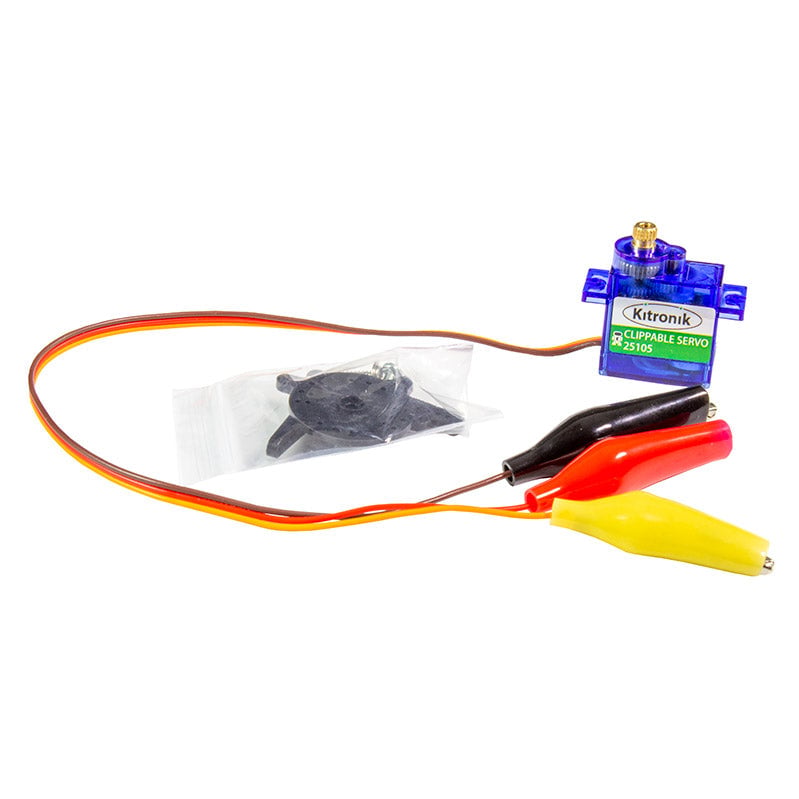

Package Contents: 1 x Kitronik Clippable Servo with 4 horns and fixings.
Dimensions: Lead length 250mm, Clip length 34mm. Detailed dimensions can be found in the technical drawing PDF.
