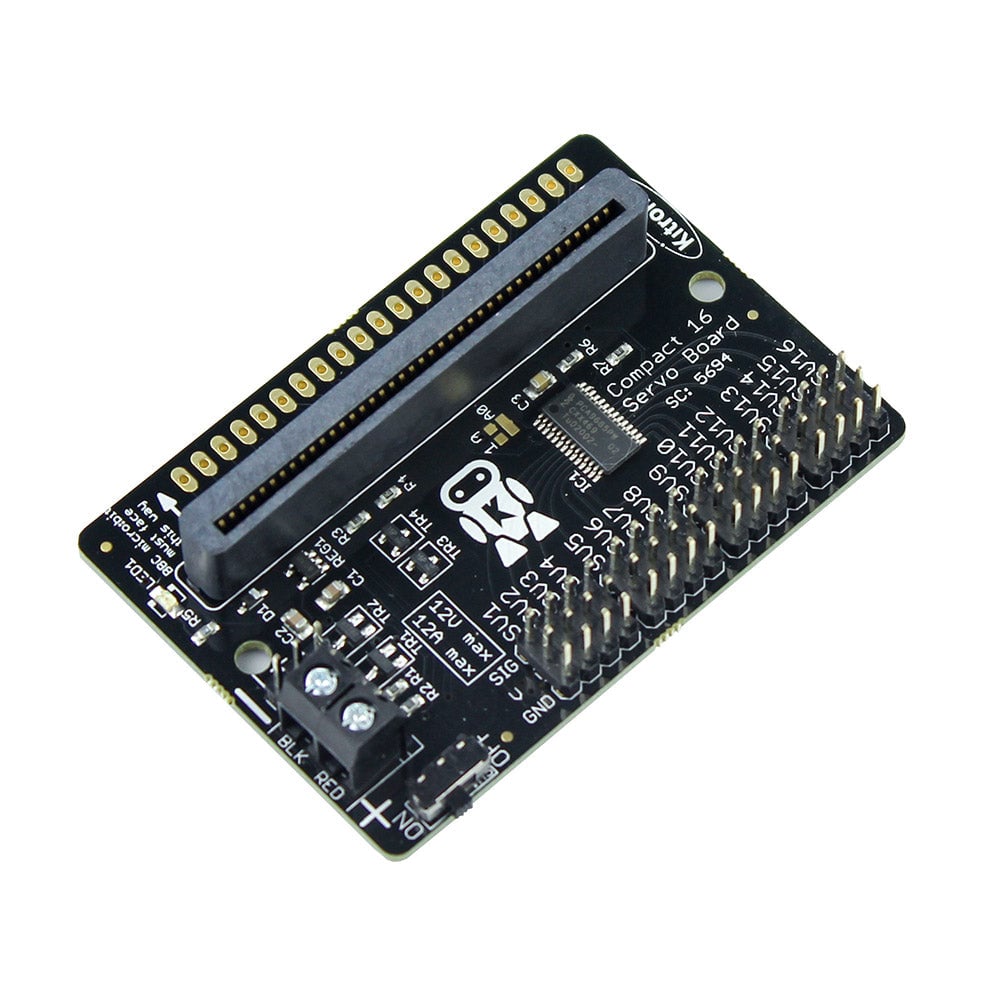

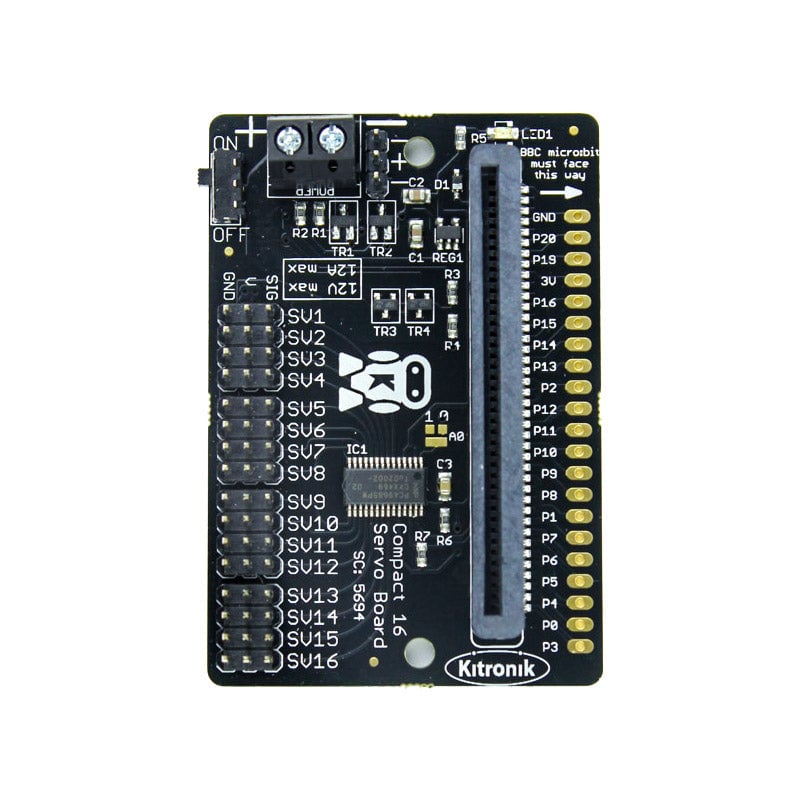

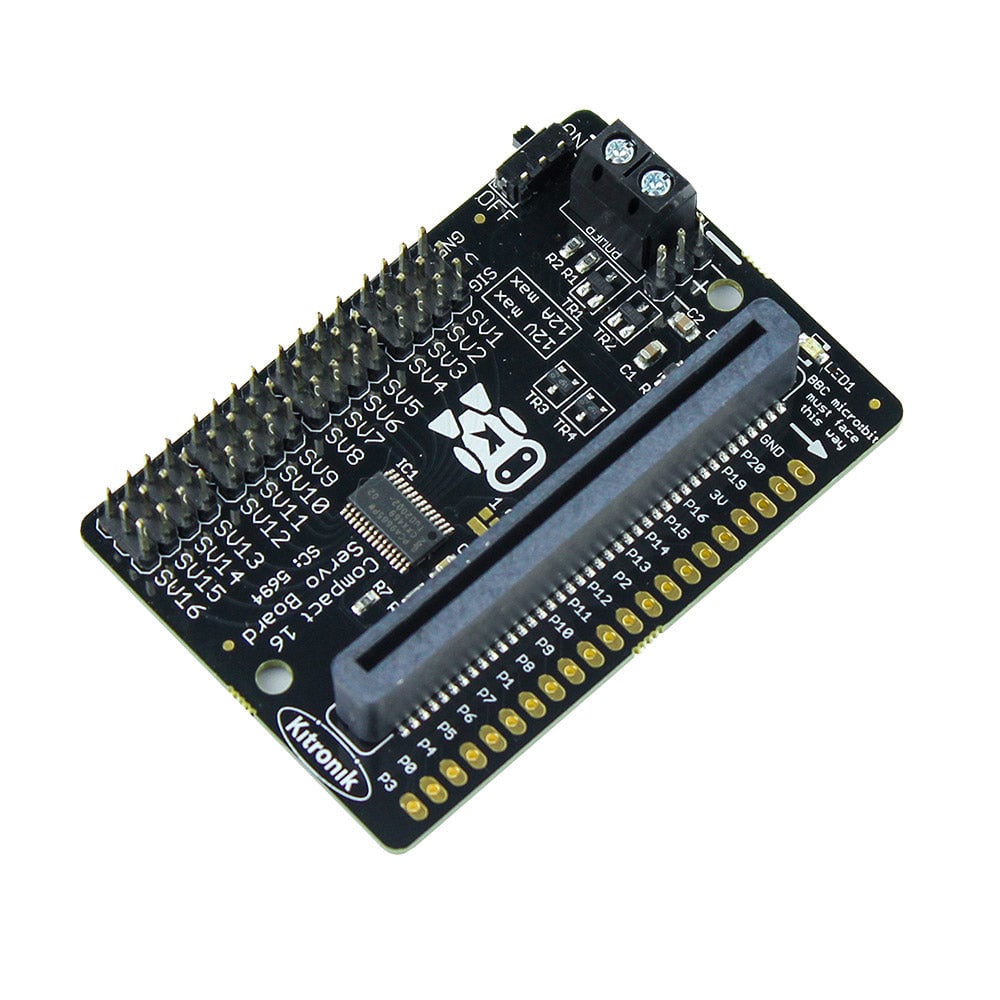

Kitronik Compact 16 Servo Driver Board for the BBC micro:bit

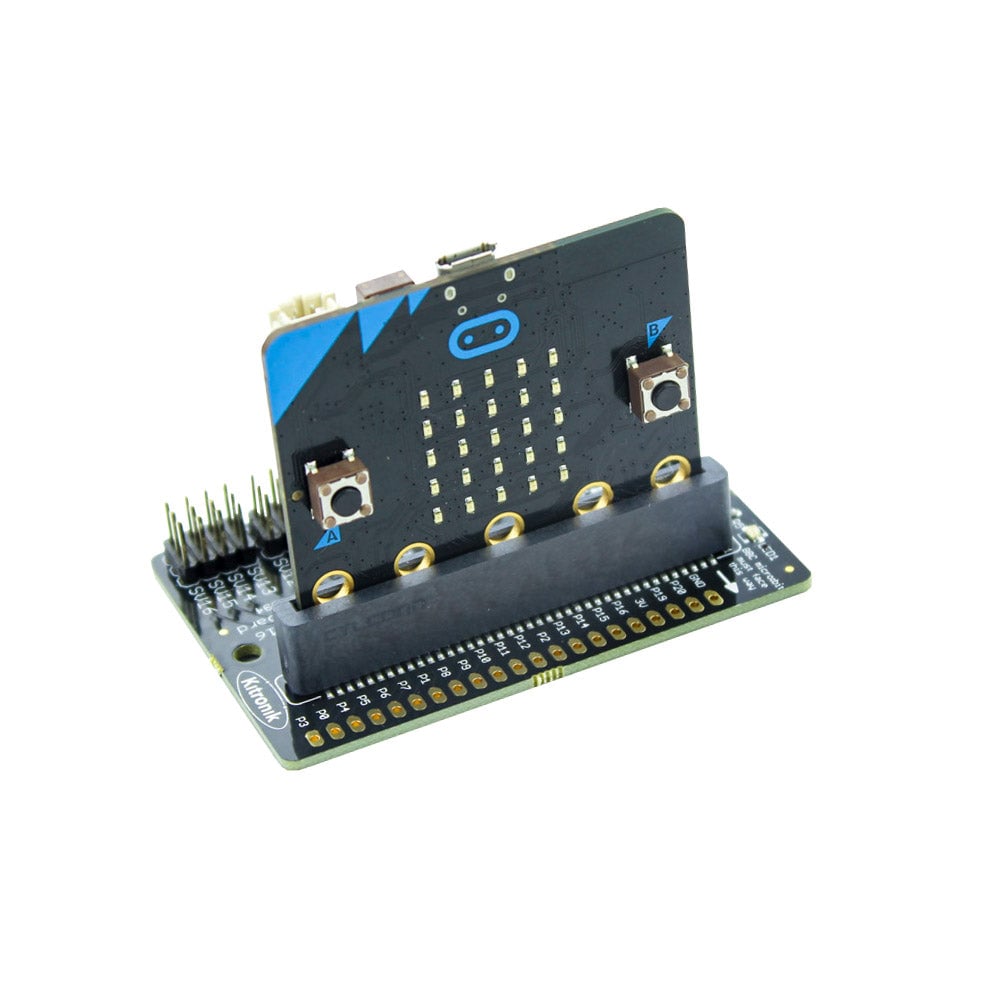

The Kitronik Compact 16 Servo Driver Board for the BBC micro:bit is designed to drive up to 16 servo motors simultaneously, based on the PCA9685 driver IC. It features a fitted Edge Connector that allows the BBC micro:bit to slot in directly, making it an ideal accessory for robotics and motor control projects.

This board powers servos directly from its power supply and supports power input via either a terminal block or a servo style connector, controlled conveniently by an on/off switch and indicated by a green LED. Additionally, it supplies a regulated 3.3V for the micro:bit itself, eliminating the need for separate power supply to the micro:bit.

Designed for easy integration, it is compatible with the 'Link' standard allowing connections to other micro:bit accessory boards. You can program this board either with Microsoft MakeCode using custom Kitronik I2C-16-servo blocks or with Python.

• Supports driving up to 16 servo motors simultaneously.
• Servos powered directly from the board's power supply.
• Standard 0.1" pitch servo connectors.
• Compatible with the Link Standard for expansion.
• Features an on/off switch and power status LED.
• Powered via terminal block or servo connector.
• Regulated 3.3V output powers the BBC micro:bit.
• 3V and GND pins broken out on the Link header for external devices.
• Program with Microsoft MakeCode or Python.

Dimensions: Length 68mm, Width 46.5mm, Height 10.6mm, PCB Thickness 1.6mm.

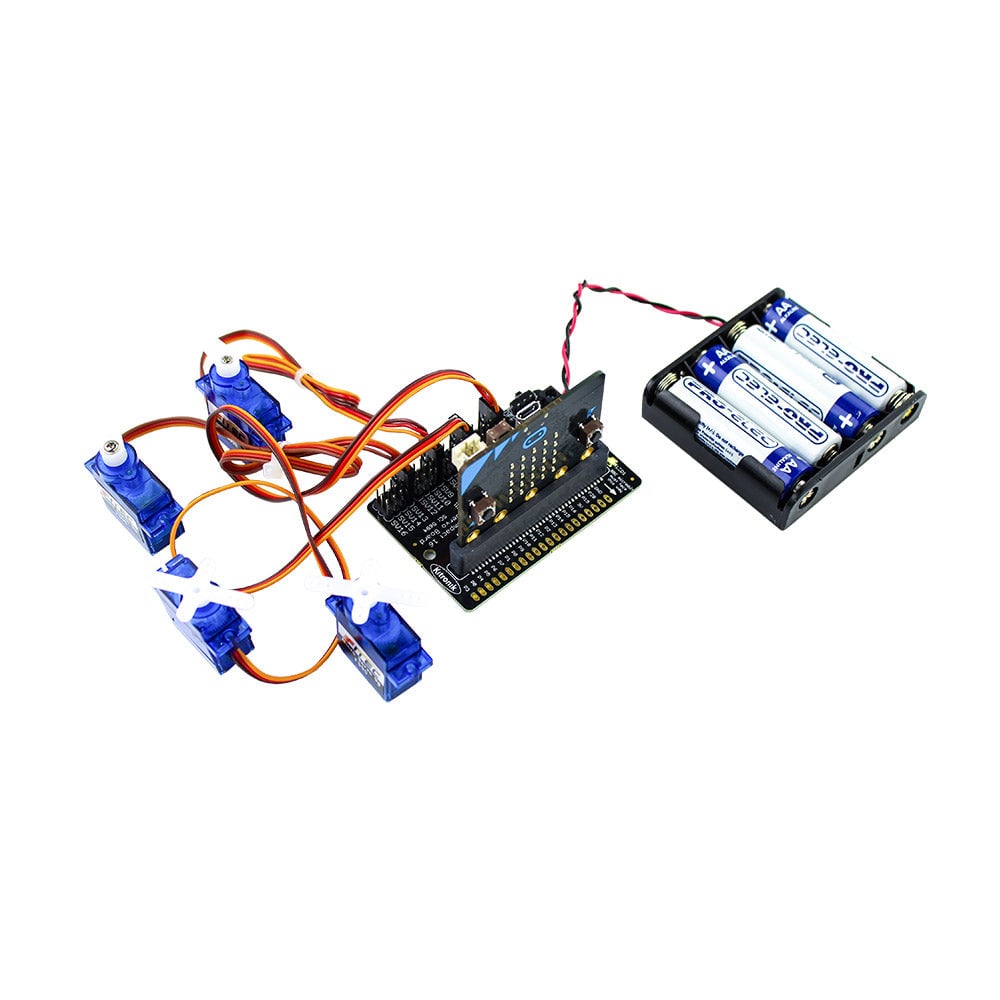

Required Accessories: BBC micro:bit, USB Cable, Power Supply, and Servos (sold separately).

This product is designed and manufactured in the UK by Kitronik.
