Kitronik Craft & Code for the BBC micro:bit

Get creative by combining the BBC micro:bit and electrical components with Kitronik Craft & Code! Designed by teachers and tested by pupils for learners aged 8+. This fun and engaging kit enables students to learn coding as part of craft-based projects using any BBC micro:bit version.

The kit includes a Craft and Code board, a servo, a motor, crocodile leads, bulb holder, bulb, and a Finnboard wheel—everything needed except craft materials and the micro:bit itself. It requires 3x AA batteries (not included) and features an onboard on/off switch to protect battery life.

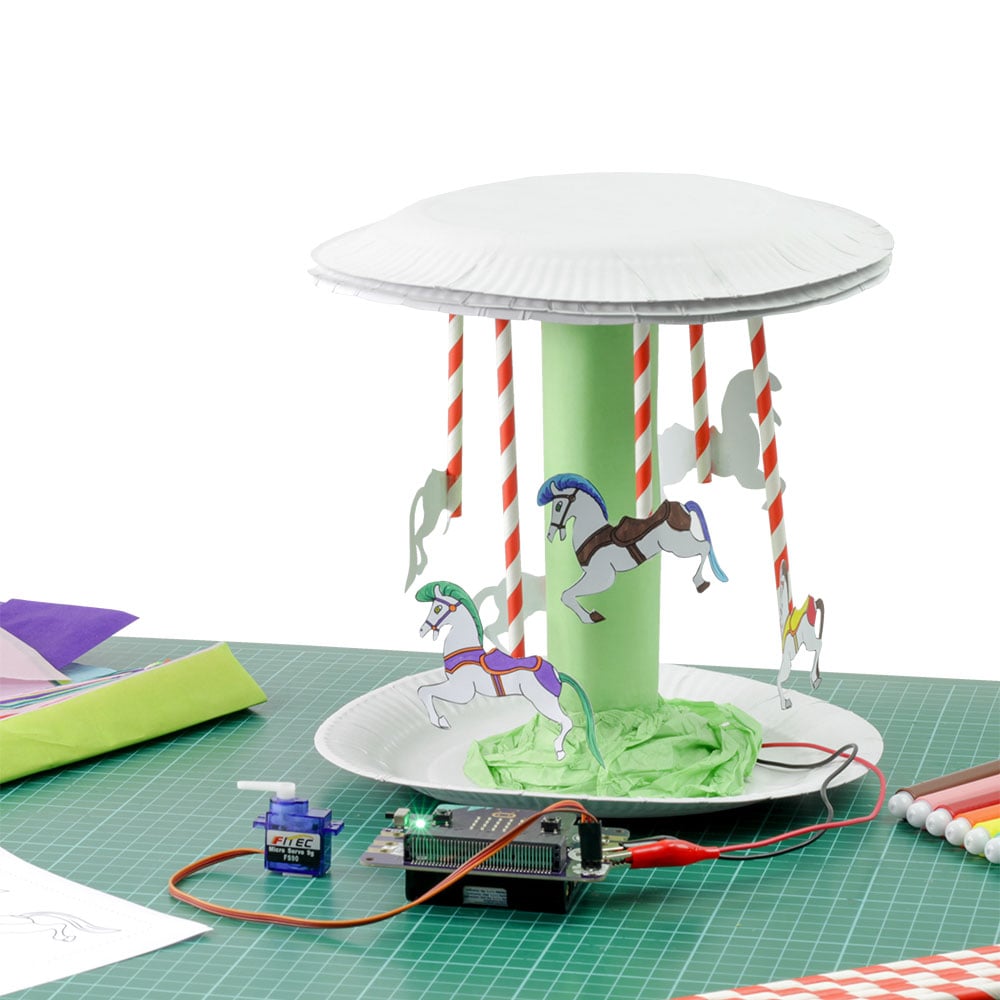

Learn coding with MakeCode for micro:bit, using a custom Kitronik extension that provides all the blocks needed to control the board and connected hardware. The included booklet contains two detailed projects: a tabletop carousel and a touch-operated night light, with full coding instructions.

Features:

• Innovative learning environment for beginners to build circuits and projects combining electronics and code.
• Compatible with micro:bit V1 and V2.
• Includes servo, motor, crocodile leads, bulb holder, bulb, and Finnboard wheel.
• No tools required; devices connect via standard connectors and crocodile leads.
• Board has clear markings for correct device connections.
• Printed guide introduces board, MakeCode editor, and coding with two sample projects.
• Custom MakeCode extension for full control of board features.
• Powered by 3x AA batteries with an onboard on/off switch.
• Available also as a classroom-orientated Lesson in a Box.

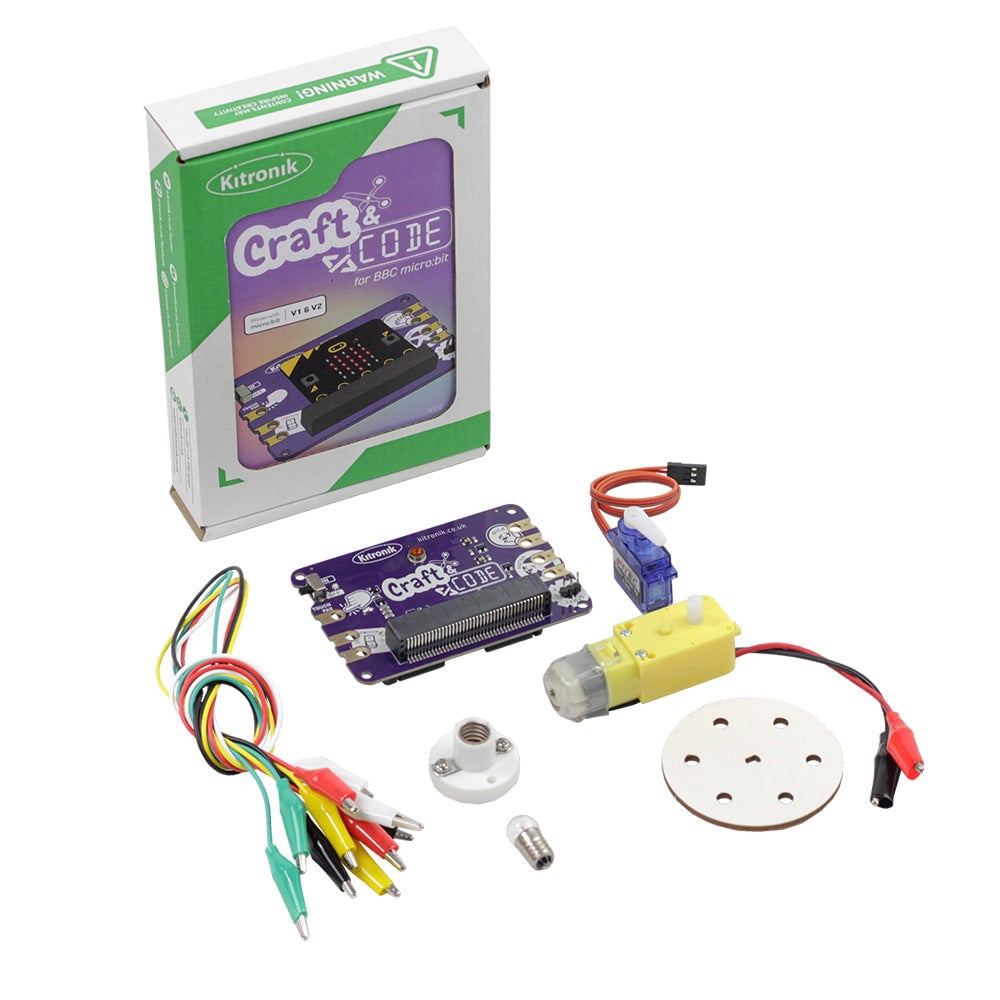

Contents:

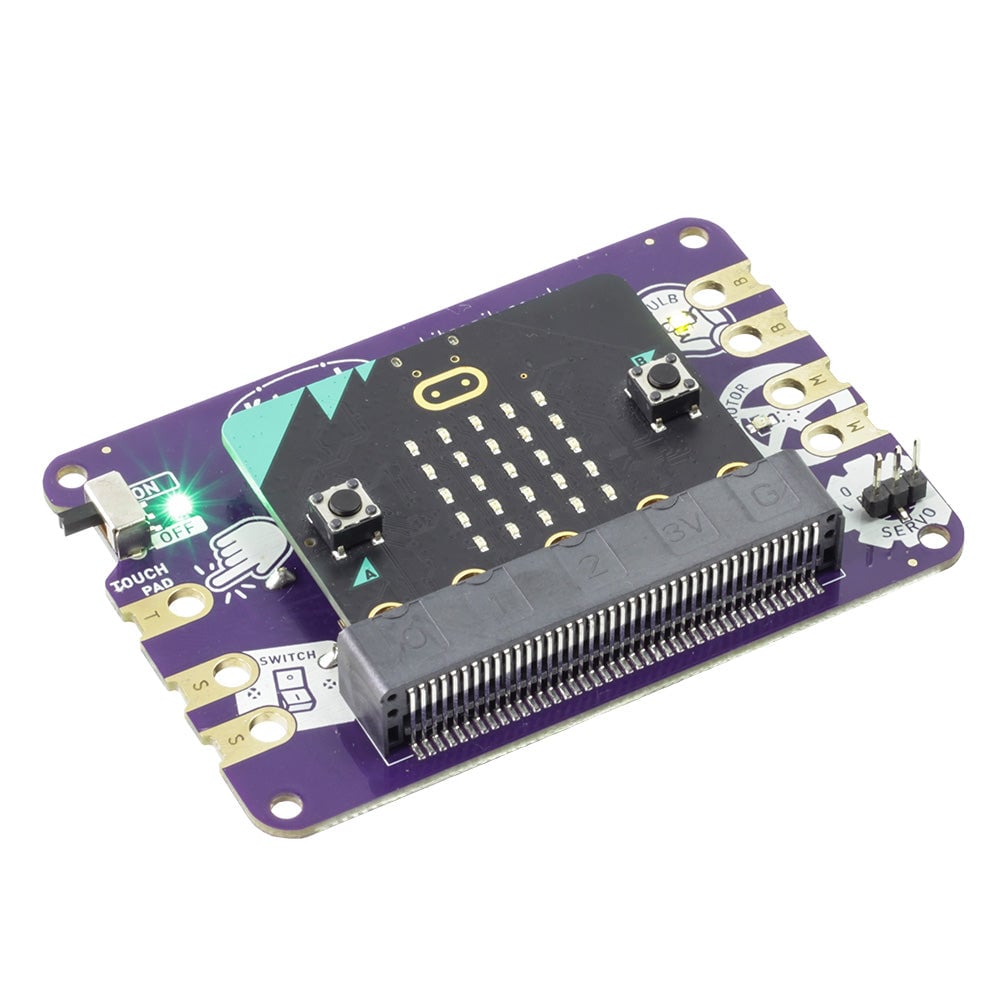

• 1 x Kitronik Craft & Code board
• 5 x Crocodile leads (half pack of 10)
• 1 x In-line geared TT hobby motor with wires and crocodile clips
• 1 x Mini 180 degree resin gear servo SG90
• 1 x MES lamp holder with plastic base
• 1 x MES bulb 4.5V
• 1 x Finnboard wheel for motor accessory
• 1 x Craft and Code booklet

Dimensions:

• Length: 89mm
• Width: 62mm
• Height (max): 29.5mm

Technical Specifications:

• Processor: BBC micro:bit (V1 or V2)
• Operating voltage: 3.5 – 4.5V
• Typical current draw: 470mA (approx.)
• Typical battery life: 2 hrs 30 mins (depending on use)
• Quiescent current: 11mA (approx. 60 hrs)
• Battery types supported: Alkaline, NiMH, NiCad, ZnCl2
• Number of batteries: 3 x AA
• Total connection pads: 7 (2 lamp, 2 motor, 1 touchpad, 2 switch)
• Number of mounting holes: 4 (M3 size 3.3mm)
• PCB size: 88.6mm x 61.6mm
• Micro:bit edge connector: 1

Note: Micro:bit, batteries, and USB cable are not included and sold separately.
