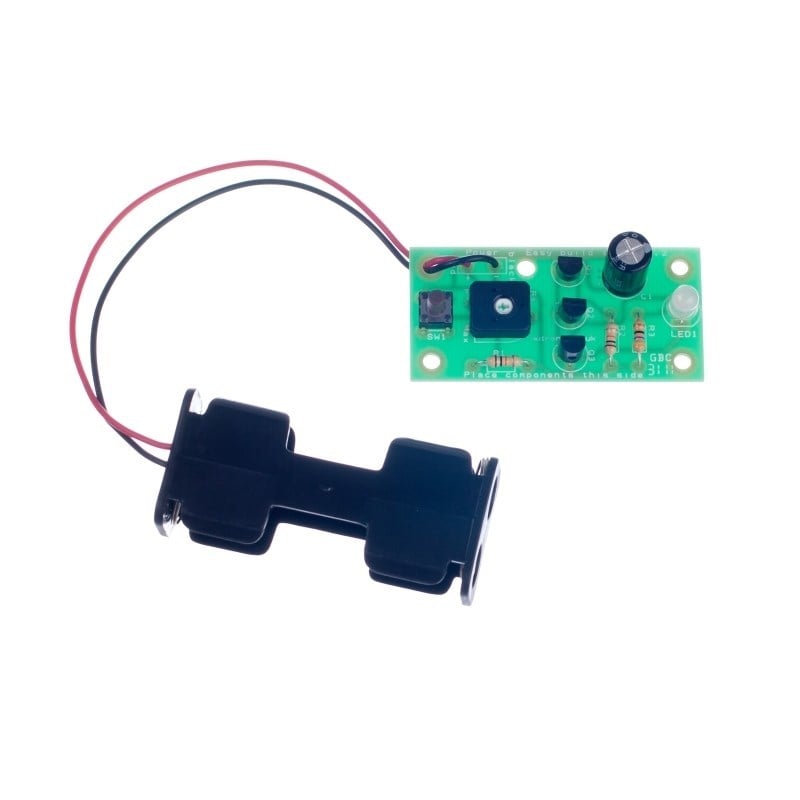

Kitronik Easy Build Timer Project Kit

The Kitronik Easy Build Timer Project Kit is a simple and engaging introduction to electronics, designed to teach the basics of soldering and circuit assembly. Using a resistor capacitor network, the timer provides a delay adjustable between 1 second and 4 minutes by a PCB mounted variable resistor. When the start button is pressed, the LED changes from red to green, reverting to red at the end of the time interval.

Features:

• Easy build timer kit, perfect for electronics beginners.
• LED changes color to indicate timer status.
• Adjustable time delay using the variable resistor.

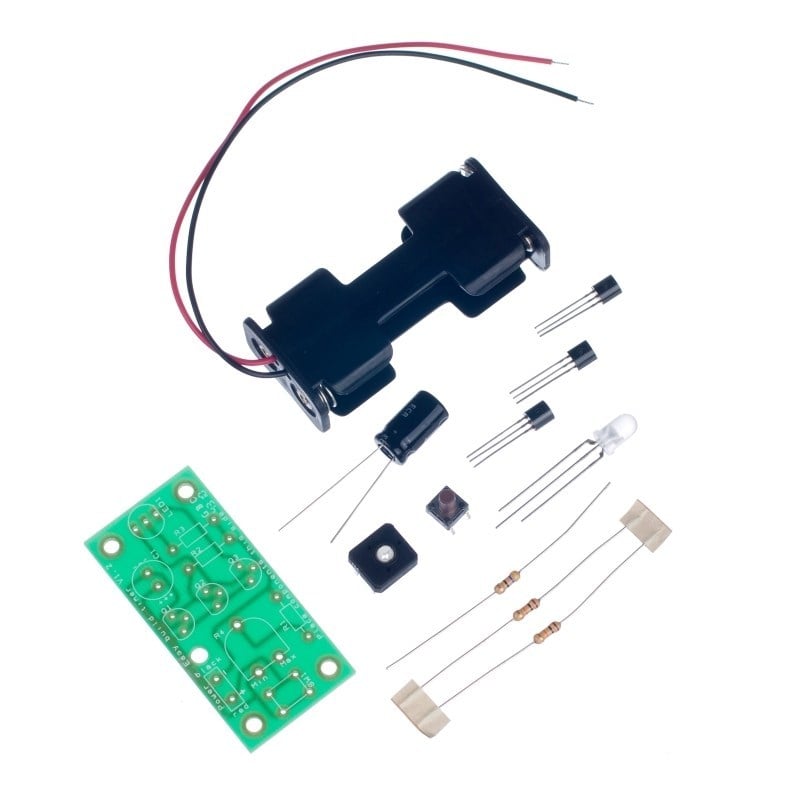

Contents:

• 1 x 2AA Battery Cage with leads
• 1 x 479 Resistor
• 2 x 10K9 Resistors
• 1 x 1M9 Potentiometer
• 1 x Electrolytic Capacitor (10V, 1 mF)
• 1 x BC558 PNP Transistor
• 1 x Tri-colour 5mm diffused LED (650mCd)
• 1 x 6mm PCB Mount Tactile Switch (9.5mm Height)
• 1 x Easy Build Timer PCB

Dimensions:

• PCB Length: 54mm
• PCB Width: 26mm

Requirements:

• 2 x AA batteries (sold separately) or a suitable power board like the Easy Build Coin Cell Power Board Kit.
• Soldering iron, solder, and wire cutters for assembly.
