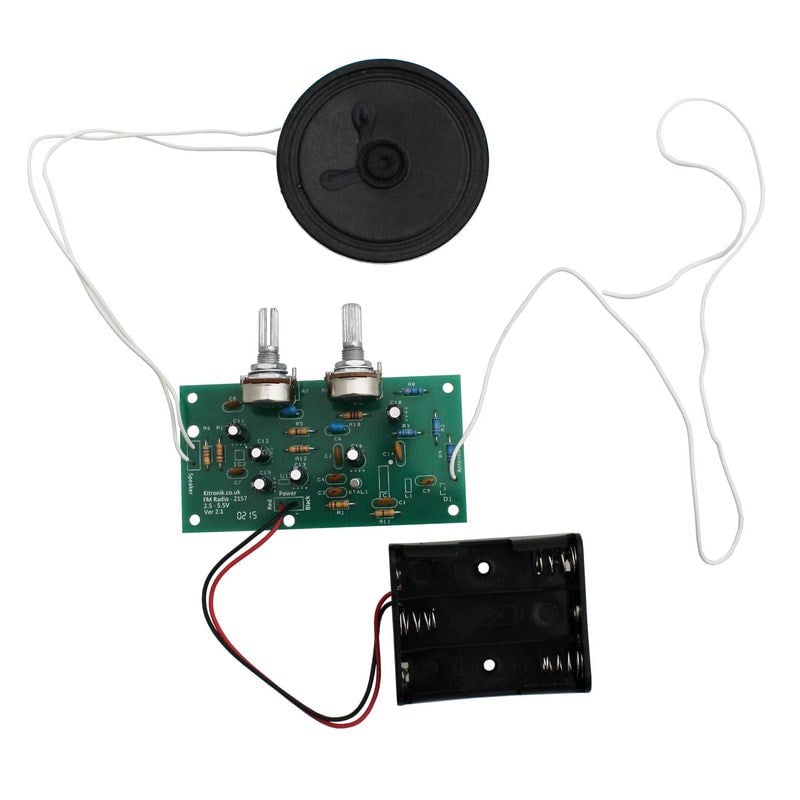

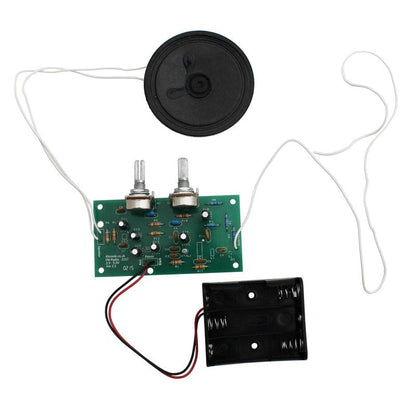

Kitronik FM Radio Kit V2.0

The Kitronik FM Radio Kit V2.0 is an electronic project kit designed for assembling a fully functional FM radio. It features industrial surface mount ICs (Si4820 and NCP2890) pre-mounted on the board, allowing users to easily solder remaining components to complete the kit.

The radio includes controls for tuning and volume adjustment, an audio amplifier, and a 66mm diameter speaker provided in the kit. The circuit operates on 2.5V to 5.5V power, compatible with a 5V wall supply or 3x AA batteries (not included).

Ideal for educational purposes and intermediate electronics enthusiasts, this kit promotes hands-on learning of radio technology and soldering skills.

Features:

• FM Radio kit with easy-to-assemble components.
• Audio amplifier built-in for clear sound output.

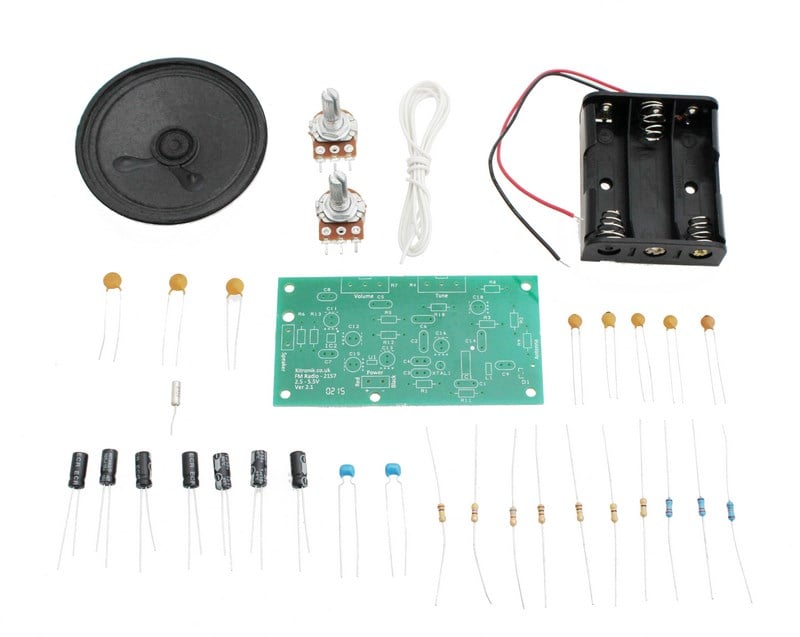

Contents:

• Si4820 FM Radio IC (Pre-mounted).
• CM1213A ESD Protection Diode (Pre-mounted).
• TLV700 3.3V LDO 200mA Regulator (Pre-mounted).
• NCP2890D Mono Amplifier IC (Pre-mounted).
• Fixed Inductor 270nH 5% (Pre-mounted).
• 100K and 10K 16mm Linear Potentiometers for tuning and volume control.
• Various capacitors: Electrolytic, Ceramic in multiple values.
• Resistors in various values including 220K, 56K, 3.3K, 100K, 0R, 6.8K, 470R, 10K, and 100R.
• Watch Crystal for Radio.
• 3xAA Battery Cage with Flying Leads.
• 1m Single Core Wire.
• 8 ohm 66mm Speaker.
• FM Radio PCB.

Specifications:

• PCB Length: 88mm.
• PCB Width: 46mm.
• PCB Component Count: 36.
• Nominal Voltage: 5V.
• Voltage Range: 2.5V - 5.5V.
• Absolute Maximum Voltage: 6V.
• Typical Standby Current: 20mA.
• Maximum Current at Nominal Voltage: 250mA.

Requirements:

Soldering iron, solder, wire cutters, wire strippers, tape measure, and power source (5V wall power supply or 3 AA batteries). Optional FM radio telescopic antenna is recommended.
