Kitronik Heat Activated Switch

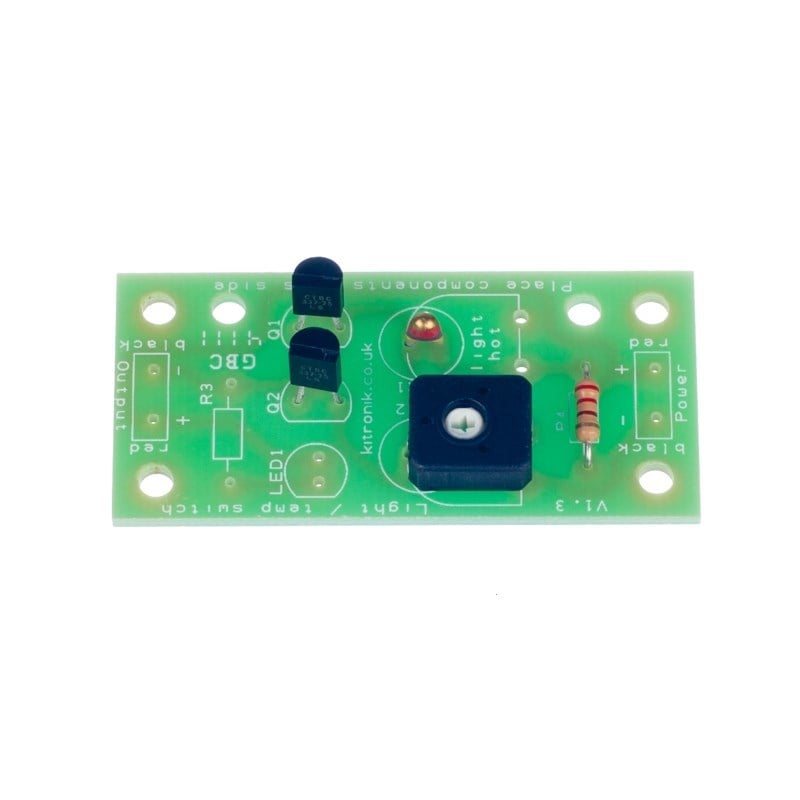

The Kitronik Heat Activated Switch is a temperature-dependent project kit that detects the temperature of its surroundings using a thermistor and acts as an automated on/off switch. It controls an output current up to half an amp, suitable for turning on other electronic circuits automatically when the temperature changes.

The board has space for an optional LED with a current limit resistor (both sold separately), which lights up when the output is turned on. Operating voltage ranges from 3V to 10V, with lower voltages allowing better adjustment of the switching point.

Features:

• Temperature detection using a thermistor.
• Automated on/off switch based on temperature.
• Output current control up to 0.5A with a Darlington pair transistor configuration.
• Operating voltage from 3V to 10V.
• Optional LED indicator support.

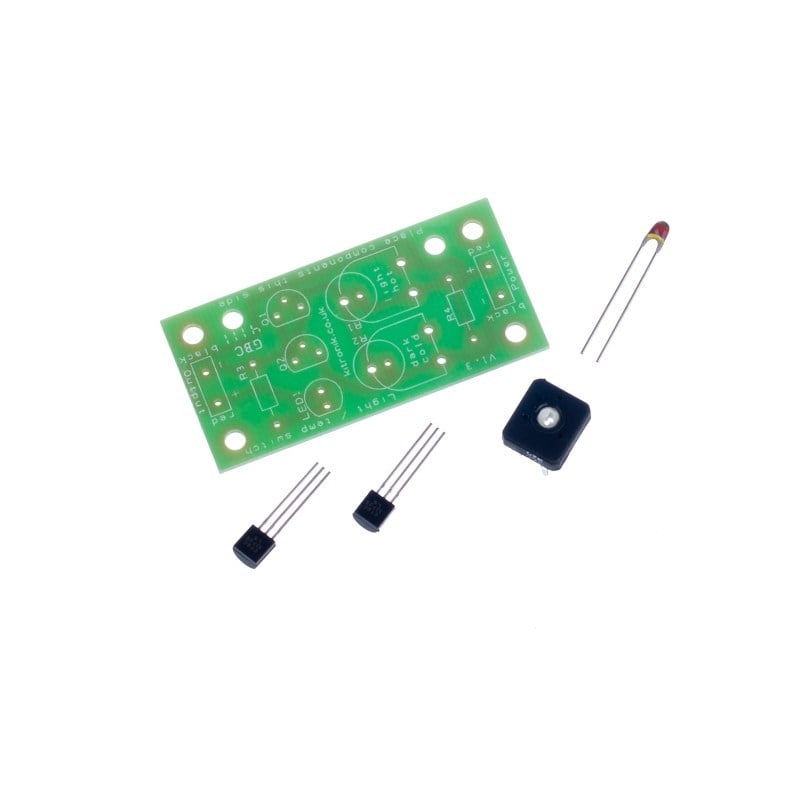

Contents:

• 1 x 47KΩ Potentiometer
• 2 x BC337 NPN Transistors
• 1 x Thermistor
• 1 x 220Ω Resistor
• 1 x Heat Activated Switch PCB

Possible Applications:

• Babies bath over temperature indicator.
• Automatic fan control.

Dimensions:

• PCB Length: 53mm
• PCB Width: 25.5mm

Requires (sold separately):

• Soldering Iron
• Solder
• Wire Cutters

Note:

This kit requires soldering.
