Kitronik Linear Actuator Kit

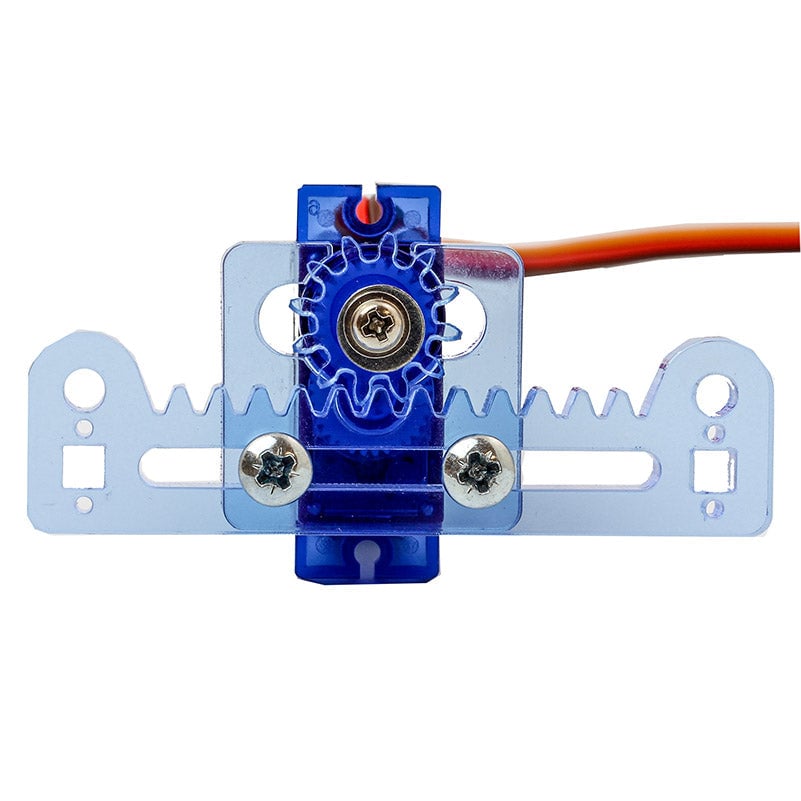

The Kitronik Linear Actuator Kit converts the circular motion of a 180 degree servo into linear motion, providing straight line movement useful in robotics, automated switching, model railways, and various automation projects. It can be mounted for either horizontal or vertical movement.

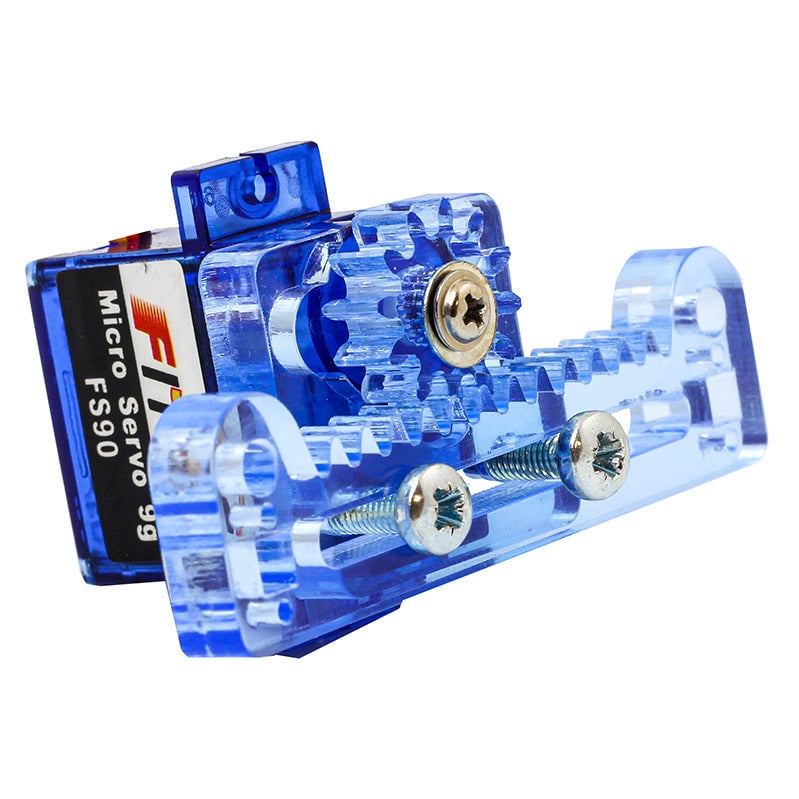

The actuator is made from a 5mm clear blue Perspex sheet with multiple mounting holes and approximately 20mm of travel. The included 180 degree FS90 servo provides a stall torque between 1.3kg/cm and 1.5kg/cm, depending on voltage.

Features:

• Converts 180 degree servo circular movement into linear motion.
• Supplied with a 180 degree FS90 servo and fixings.
• Suitable for robotics, animating displays, switching applications, and more.
• Compatible with micro:bit, Arduino, Raspberry Pi boards.
• Compatible with Kitronik microbit accessory boards including Servo:Lite, 16 Servo Driver, and All-in-One Robotics Board.

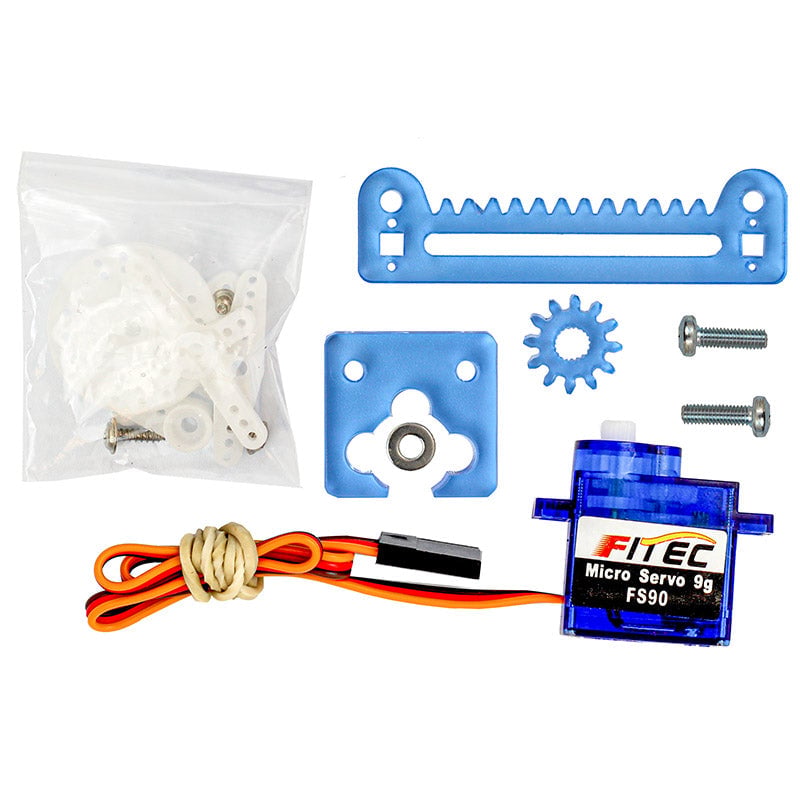

Contents:

• Linear Actuator Laser Cut Parts.
• 1 x Micro 180 Degree Servo with fixings.
• 2 x M3x10 Pozi PanSteel Machine Screws.
• 1 x M3 Form A Steel Washer.
• Assembly Instructions.

Requirements:

• Small Phillips Screwdriver.

Specifications:

• Material: 5mm Clear Blue Perspex sheet
• Travel Length: Approximately 20mm
• Gear Ratio: 2:3
• Stall Torque: 1.5kg/cm at 6V, 1.3kg/cm at 4.8V
