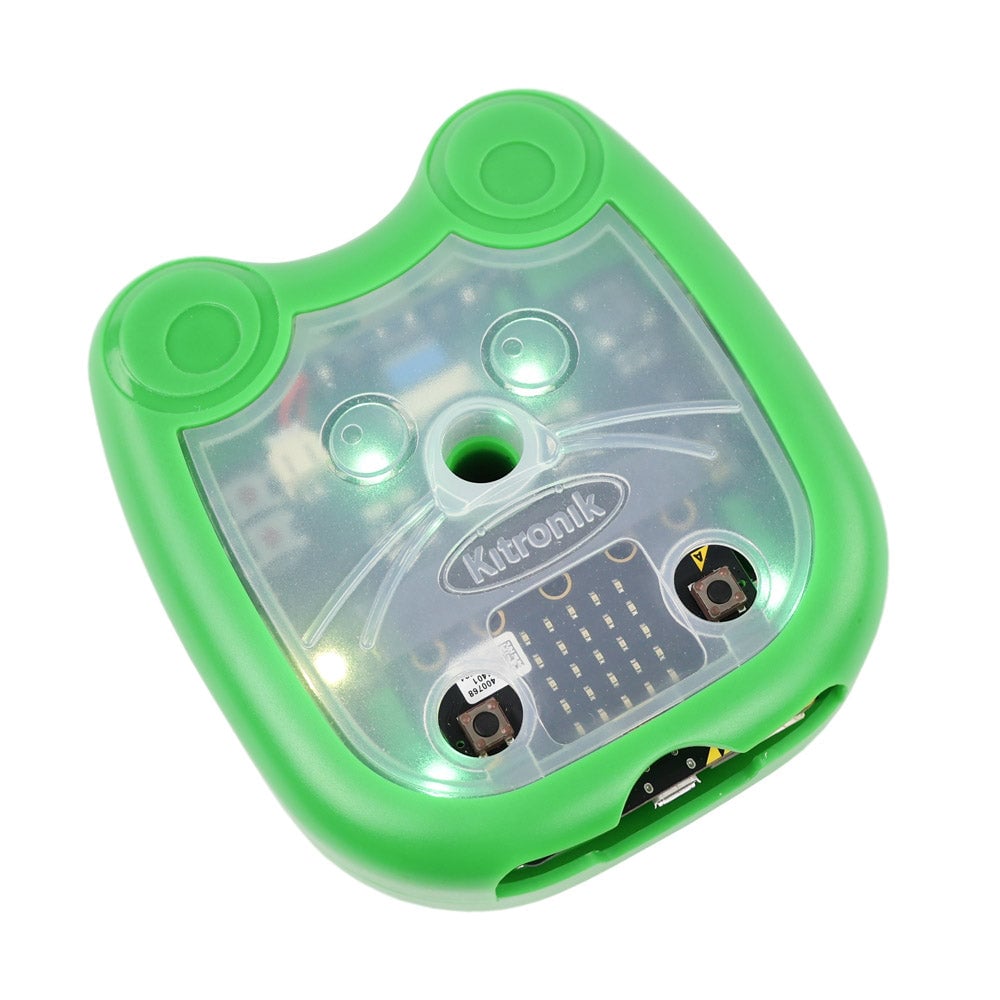

Kitronik Mai-Z the MouseBot for BBC micro:bit - Single Unit

Smart, playful, and packed with potential, meet Mai-Z, the ultimate programmable robot buggy for young coders aged 8–14! Designed for hands-on learning, the Kitronik Mai-Z is a versatile educational robot built for the BBC micro:bit. Whether you’re diving into coding with MakeCode’s block-based editor or exploring a world beyond monitor screens with our exclusive Screen-Free Programming add-on pack, Mai-Z makes STEM learning intuitive and fun. It’s even fully compatible with MakeCode CreateAI, allowing for gesture-based control and AI-powered coding right out of the box.

Mai-Z features an impressive array of sensors and components, including line following sensors, distance sensors, edge detecting sensors, 4 x programmable ZIP LEDs, pen holder, scoop, button holes for micro:bit A/B button access, BBC micro:bit edge connector, rechargeable LiPo battery, speaker, USB-C charging port, on/off switch, and status LED.

It is engineered to drive straight, turn precise angles, and travel specific controlled distances, providing exceptionally smooth and precise movement through continuous motor encoder monitoring.

Features:

• Programmable robot buggy for ages 8–14
• Code with MakeCode block-based or Screen-Free Coding add-on pack
• Line-following, edge-detecting, and distance sensors
• 4 x programmable ZIP LEDs and onboard speaker

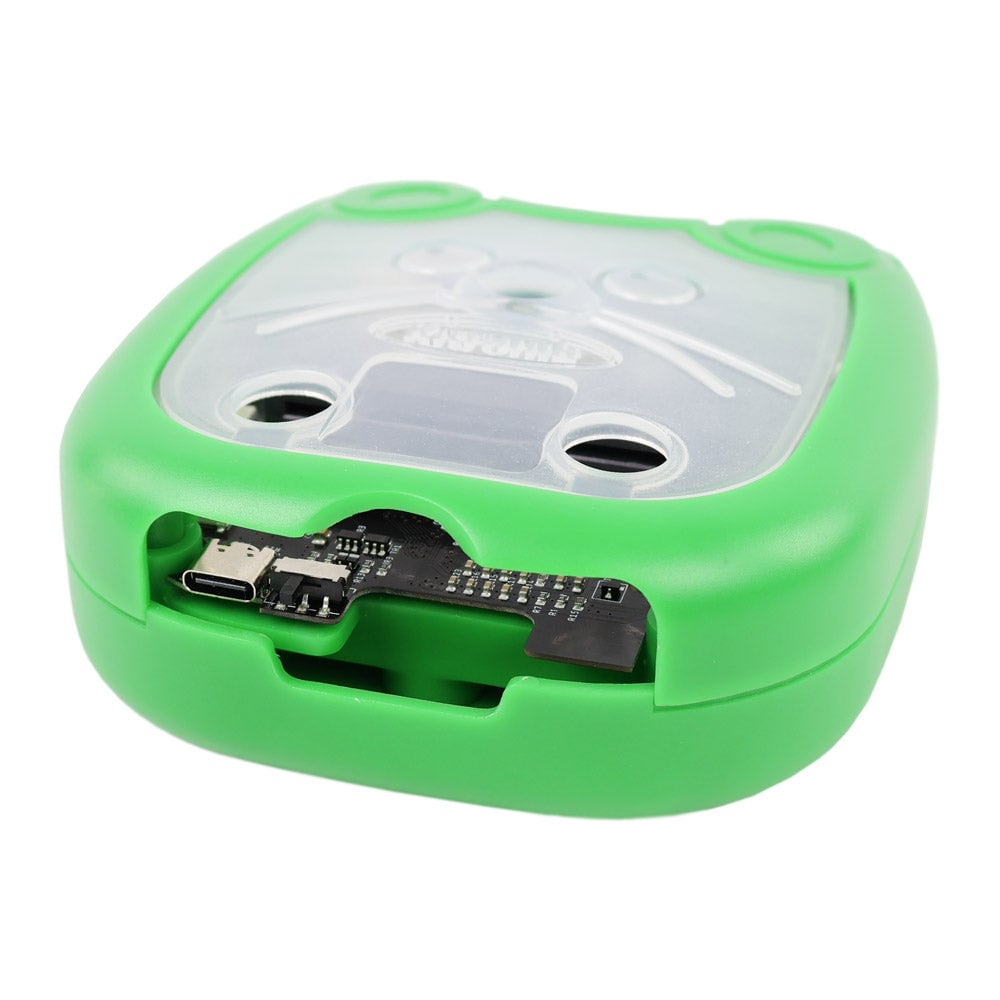

• Rechargeable LiPo battery with USB-C charging port
• Pen holder and scoop for creative tasks
• BBC micro:bit edge connector with easy access to A/B buttons
• Smooth, accurate motor control for precise driving
• Aligned with UK & US teaching curricula and ideal for STEM lessons and coding clubs
• Compatible with MakeCode CreateAI for gesture-based control and AI coding

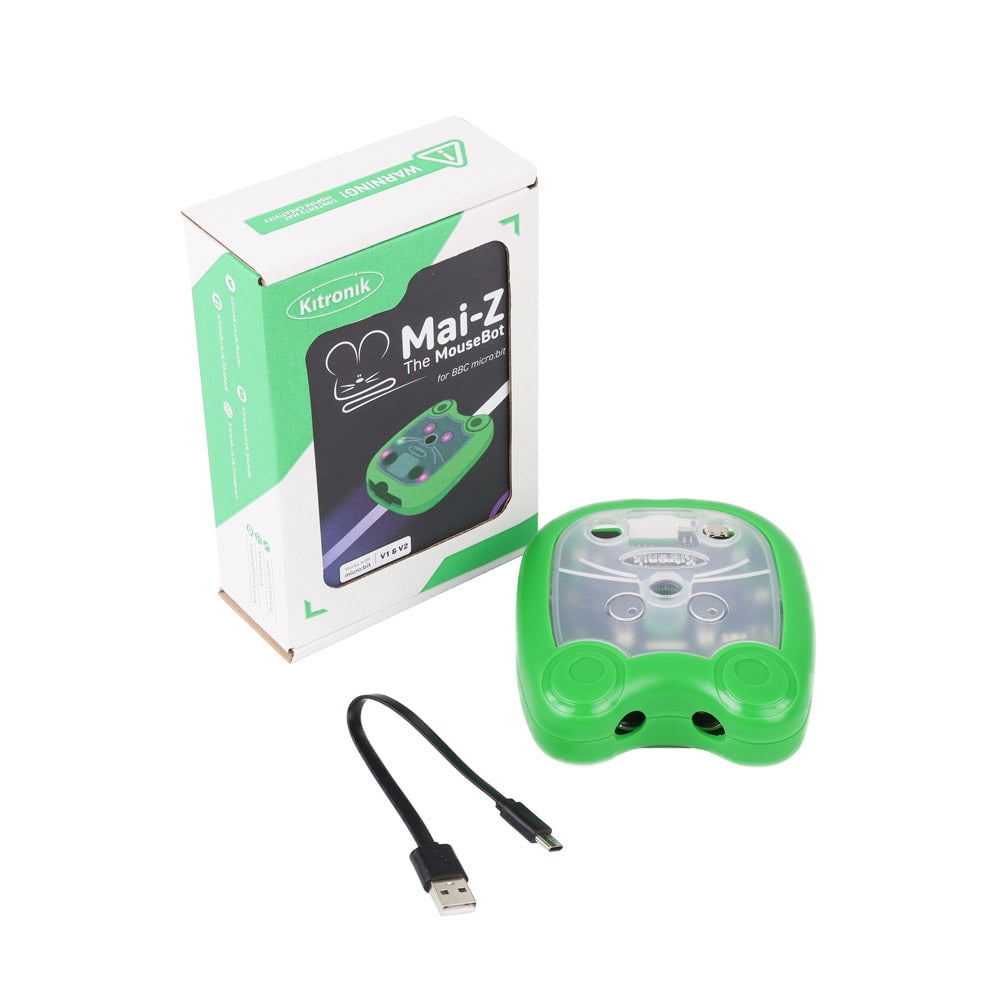

Contents:

• 1 x Kitronik Mai-Z the MouseBot for BBC micro:bit
• 1 x 20cm USB A to USB C charging cable

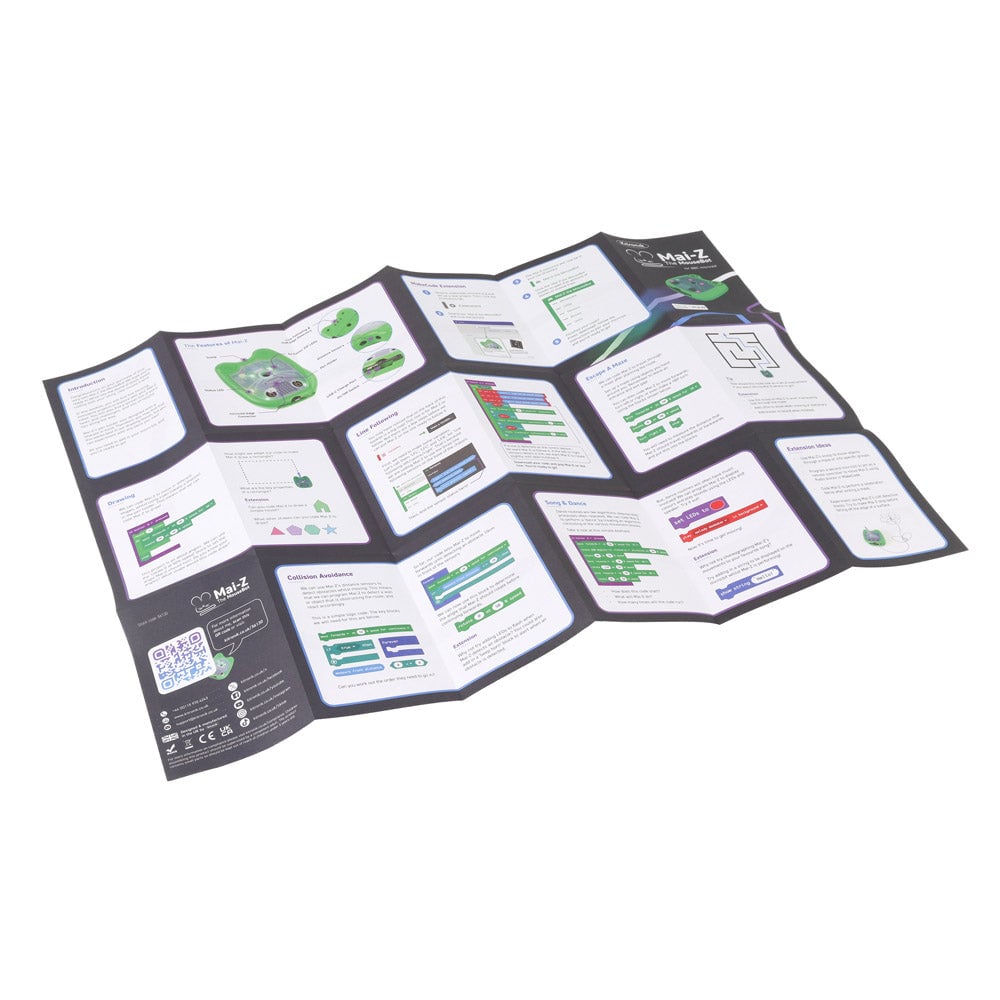

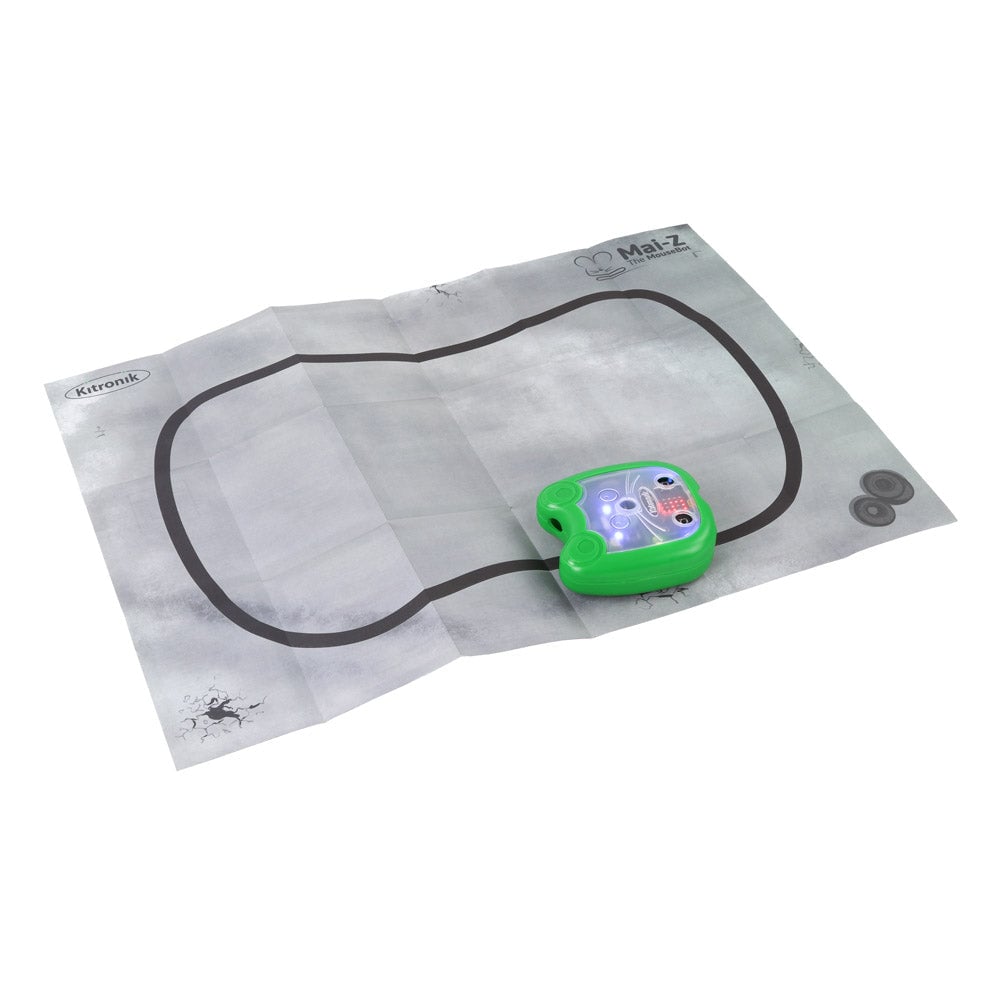

• 1 x A6 2-sided fold-out sheet with full instructions and line following track

Dimensions:

• Length: 117mm
• Width: 105mm
• Height: 45mm

Technical Specifications:

• Onboard Sensors: 1 x Ultrasonic Distance Sensor, 3 x Multifunctional IR sensor, 2 x Motor Encoder, 1 x Battery Level Monitor
• IR Sensors Functions: Line Following, Cliff Detection, Screen Free Bar Code Reading

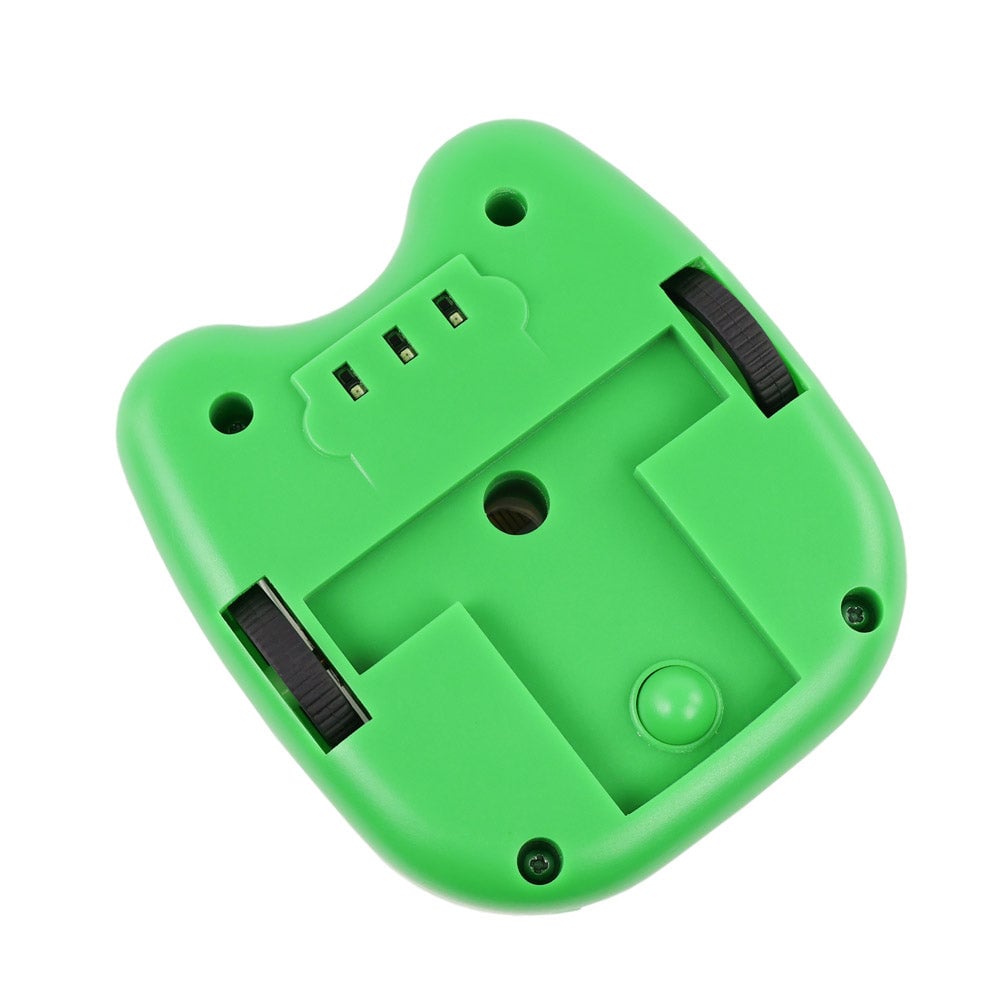

• Motors: N20 with Encoders, 33mm wheels with treaded rubber tyres
• LEDs: 4 x User Programmable RGB ZIP LEDs, 1 x System Status RGB LED, 1 x Bicolour Charging Status LED
• Audio: Onboard Electromagnetic Speaker
• Chassis: ABS Plastic with front scoop, pen holder, transparent window, micro:bit enclosure, A/B button openings
• Processor: Compatible with micro:bit V1 or V2, Onboard RP2040
• Battery: 1000mAh Rechargeable Lithium Battery, typical life >6hrs
• Charging: USB-C Charging Port, 5V, 1A recommended charger
• Switch: Rugged inset on/off toggle switch with 4mm lever
• Programming Support: Makecode custom extension (blocks, javascript, python), Screen Free Programming
• Charge Time: About 1 hour depending on battery status
