Kitronik Mono Amplifier Kit with Power Switch and Status LED

The Kitronik Mono Amplifier Kit with power switch and status LED is an enhanced version of the best-selling mono amplifier kit featuring an onboard on/off switch and a status LED for better power management and longer battery life without removing batteries. It uses the NCP2890 audio amplifier IC capable of 1.0W output power, ideal for portable communication devices and personal stereo equipment including MP3 players, computers, phones, and tablets.

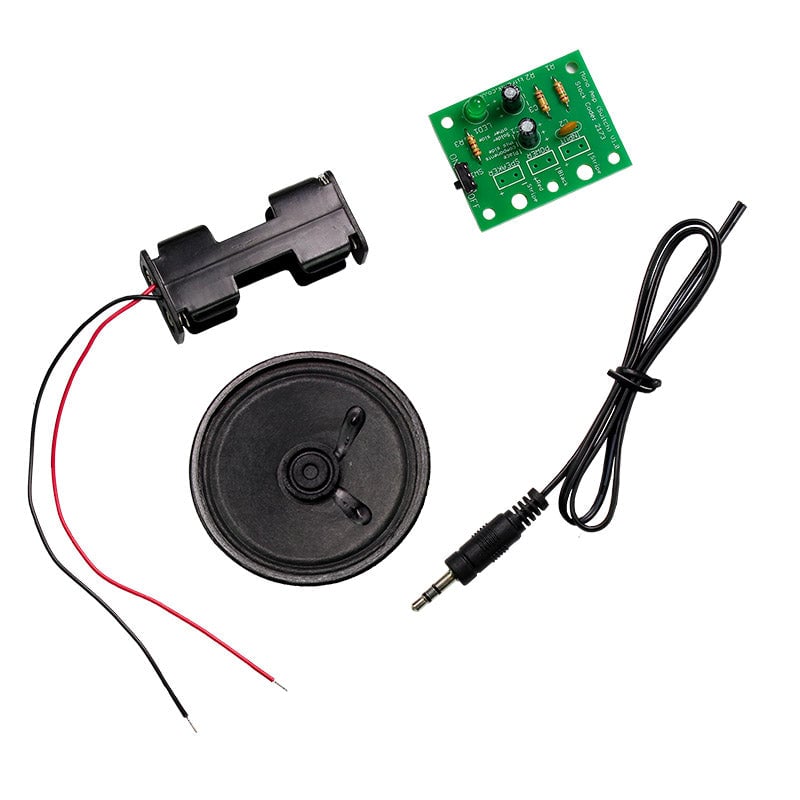

This kit includes a pre-built jack cable, an 8Ω 66mm speaker, and an AA battery pack, operating from 2.5 to 5.5 Volts (Maximum 6V).

Key Features:

• Cost-effective electronic project kit.
• Compatible with a wide range of stereo equipment.
• Onboard on/off switch enhances battery life.
• Power LED indicates operational status.
• Compact size ideal for enclosure design projects.

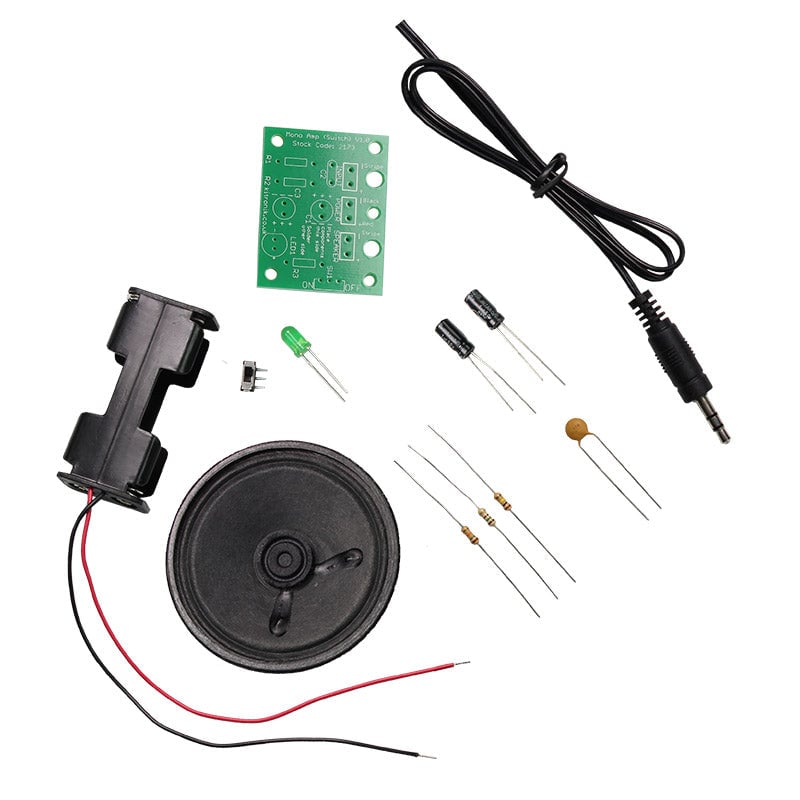

Kit Contents:

• 15KΩ Resistor
• 150Ω Resistor
• 100KΩ Resistor
• Ceramic Disk Capacitor 100nF
• 2 Electrolytic Capacitors, 50V, 1uF
• 3.5mm Mono Jack Lead (50cm)
• 8Ω 66mm Speaker
• AA Battery Cage with Leads
• Miniature PCB Mount Slide Switch
• Green 5mm LED

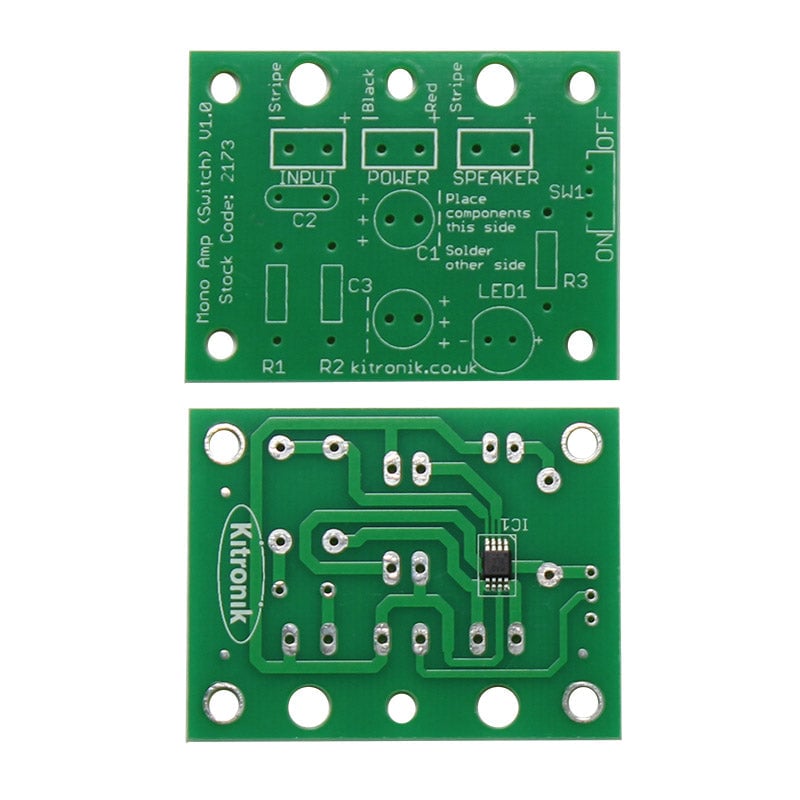

• Mono Amplifier PCB

Dimensions:

• PCB Length: 46.5mm
• PCB Width: 35.5mm
• PCB Height: 1.6mm

Technical Specifications:

• Voltage Nominal: 3V
• Voltage Maximum: 6V
• 4 Holes Diameter: 3.3mm

Recommended Additional Items:

• Soldering Iron
• Solder
• Wire Cutters
• Wire Strippers
• 2 x AA Batteries
