Kitronik Mono Amplifier Kit Version 3.2

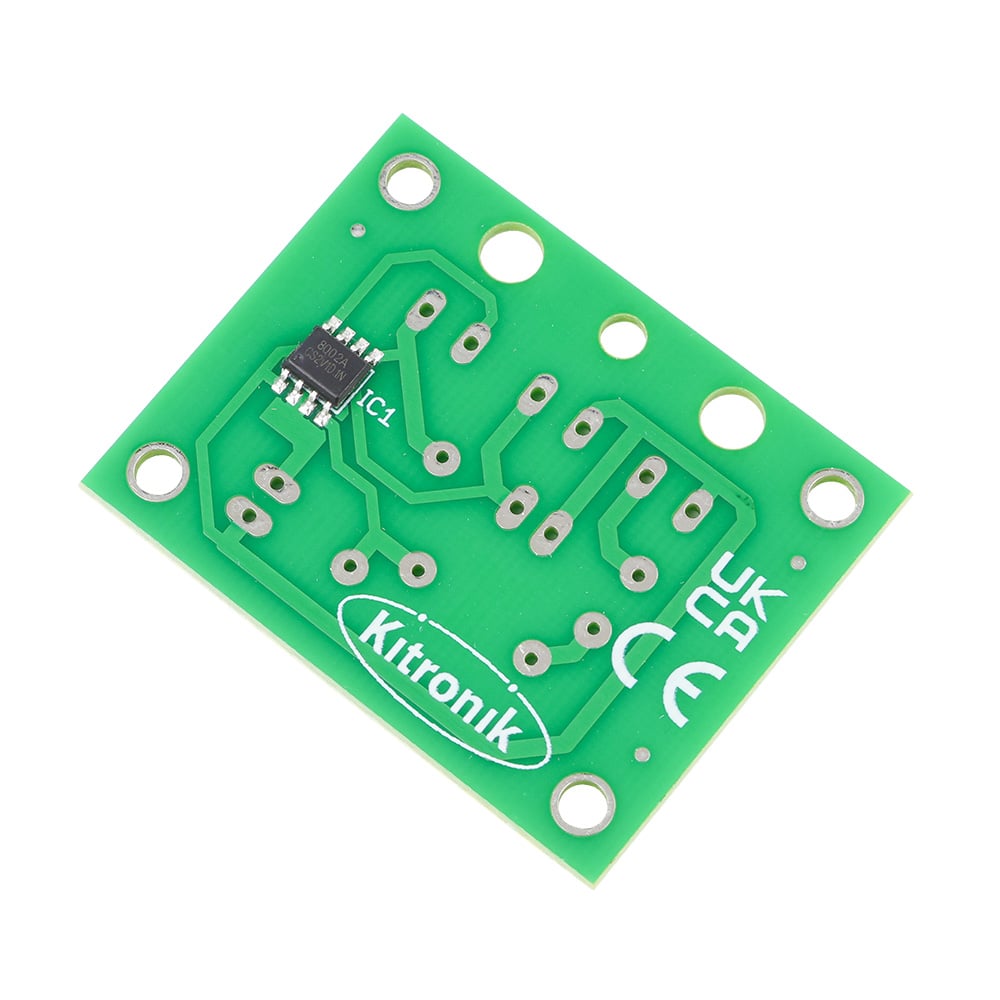

Version 3.2 of the Kitronik Mono Amplifier Kit is an ideal electronic project kit compatible with any personal stereo equipment, including MP3 players. It features a pre-mounted FM8002A audio amplifier IC on the underside of the board capable of delivering 1.0W output power. The IC includes an onboard "Pop and Click" noise protection circuit at startup and shutdown.

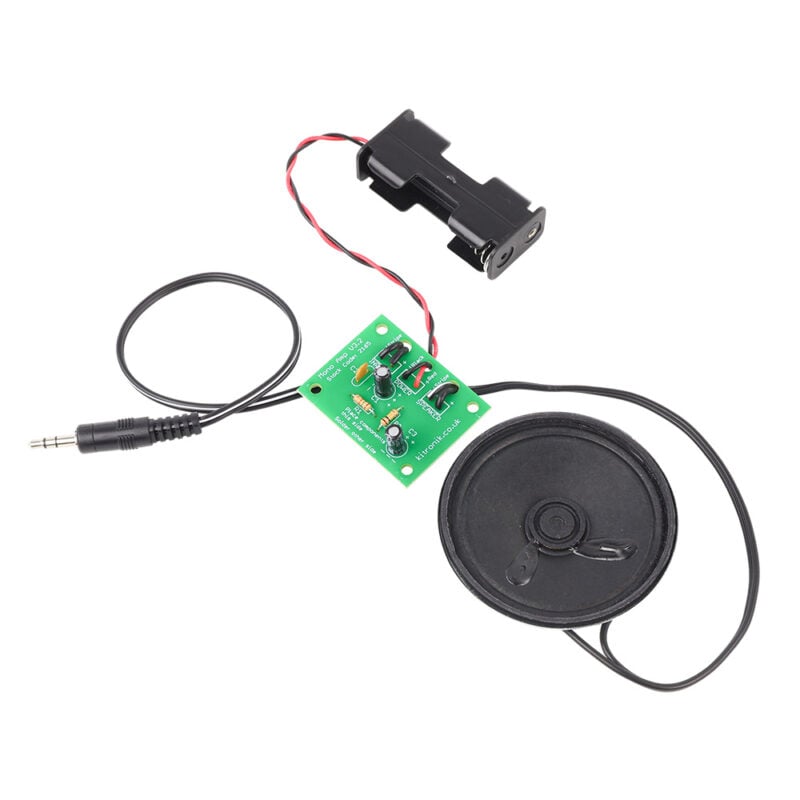

The kit operates on a voltage range from 2.2V to 5.5V (max 6V) and uses 2 x AA batteries for power, providing longer life and cost advantages over PP3 batteries. It includes a pre-built jack cable, an 8ohm 66mm speaker, and a battery pack. This version is designed specifically for AA batteries, which are more accessible and last significantly longer.

This amplifier kit is perfect for educational purposes and DIY projects involving amplifier case designs. It requires soldering skills and components such as soldering iron, solder, wire cutters, wire strippers, and 2 AA batteries to complete.

Features:

• Great value electronic project kit.
• Works with any stereo equipment, including computers, phones, and tablets with a compatible jack lead.

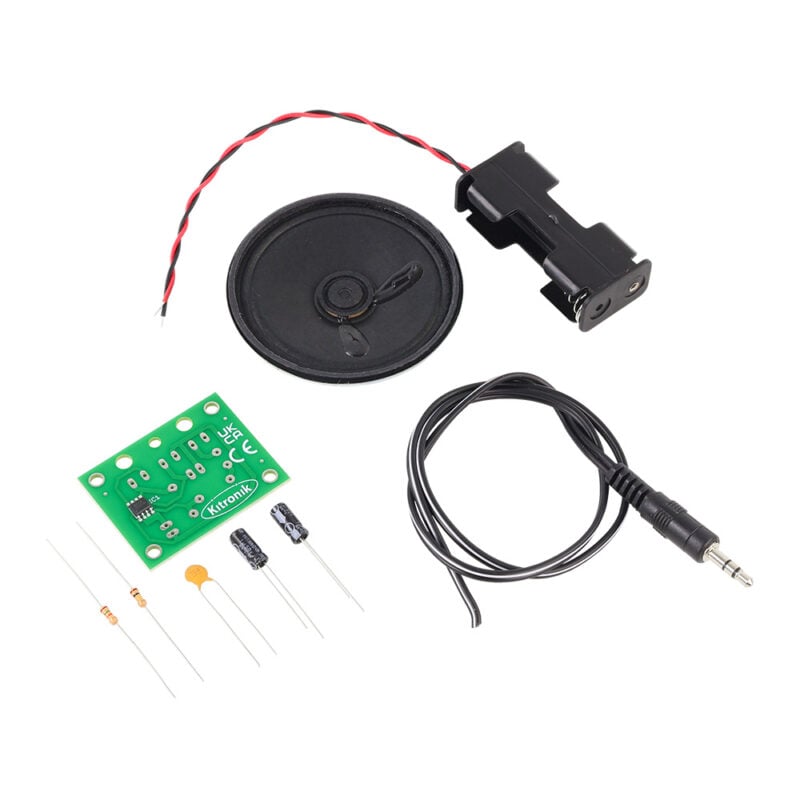

Contents:

• 1 x 15K Resistor
• 1 x 100K Resistor
• 1 x Ceramic Disk Capacitor 100nF
• 2 x Electrolytic Capacitor, 50V, 1uF
• 1 x 3.5mm Mono Jack Lead, 50cm
• 1 x 8 ohm 66mm Speaker
• 1 x AA battery Cage with Leads

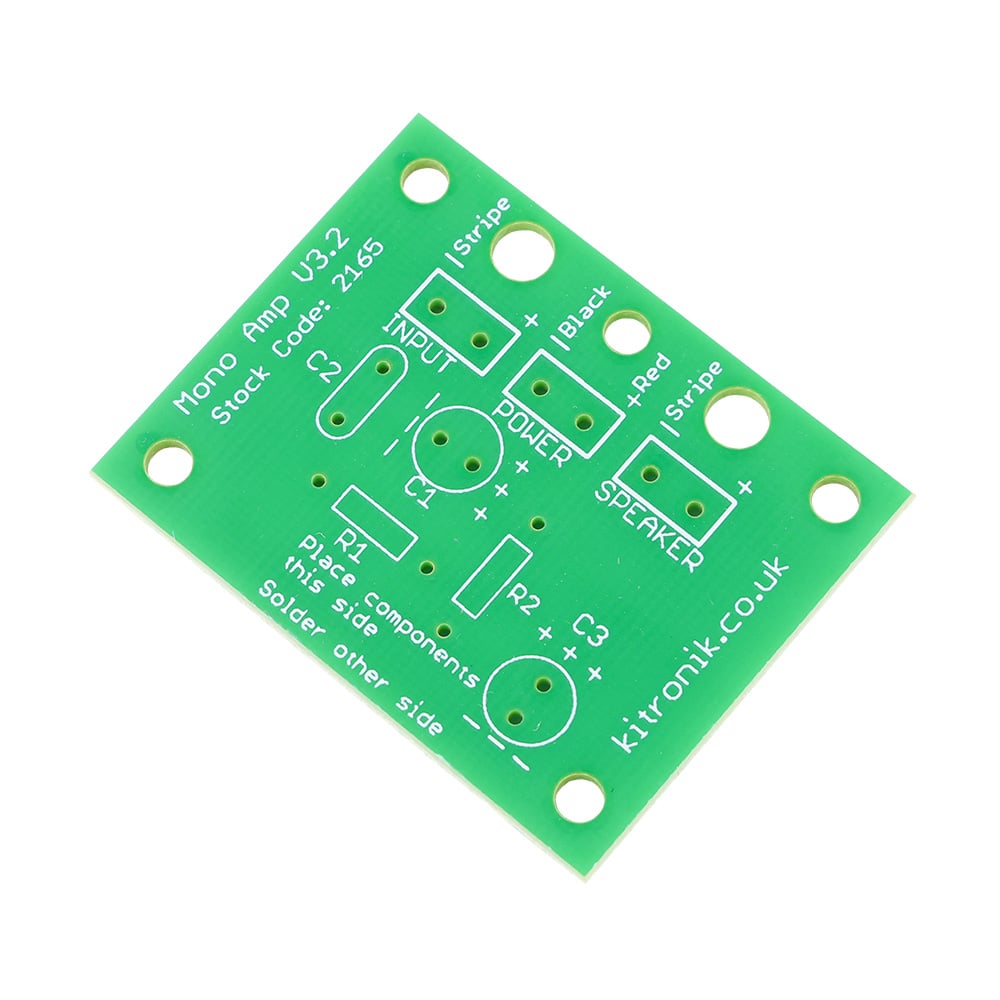

• 1 x Mono Amplifier PCB with pre-installed FM8002A audio amplifier IC

Dimensions:

• PCB Length: 44.5mm
• PCB Width: 35.5mm
• PCB Height: 1.6mm

Requires:

• Soldering Iron
• Solder
• Wire Cutters
• Wire Strippers
• 2 x AA Batteries
