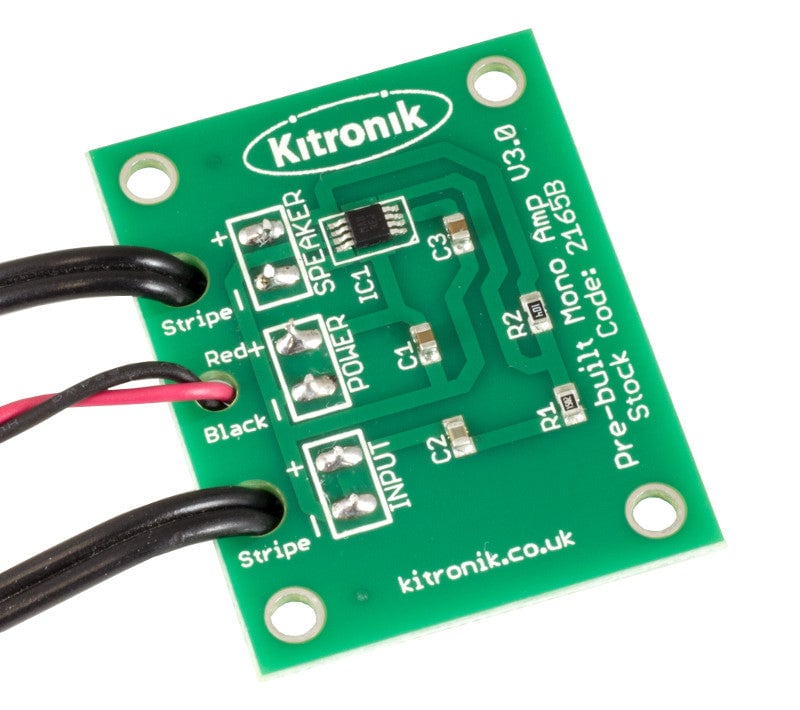

Kitronik Mono Amplifier V3.0 Pre-built

The Kitronik Mono Amplifier V3.0 Pre-built is the newest version of our best-selling pre-built Mono Amplifier Kit. Designed for use with any personal stereo equipment, including MP3 players, this amplifier is perfect for amplifier case design projects.

Featuring the NCP2890 audio amplifier IC, this board delivers 1.0W of power with onboard Pop and Click noise protection.

This kit comes pre-built and includes a pre-built jack cable, an 8 ohm 66mm speaker, and a AA battery pack. It operates with any voltage from 2.2V to 5.5V (max 6V). Assembly requires soldering of the jack lead, speaker, and battery cage to the board.

Features:

• Pre-built kit for easy use focusing on design
• Compatible with computers, phones, tablets, and other stereo equipment with a jack input
• Powered by 2 x AA batteries for longer life and availability

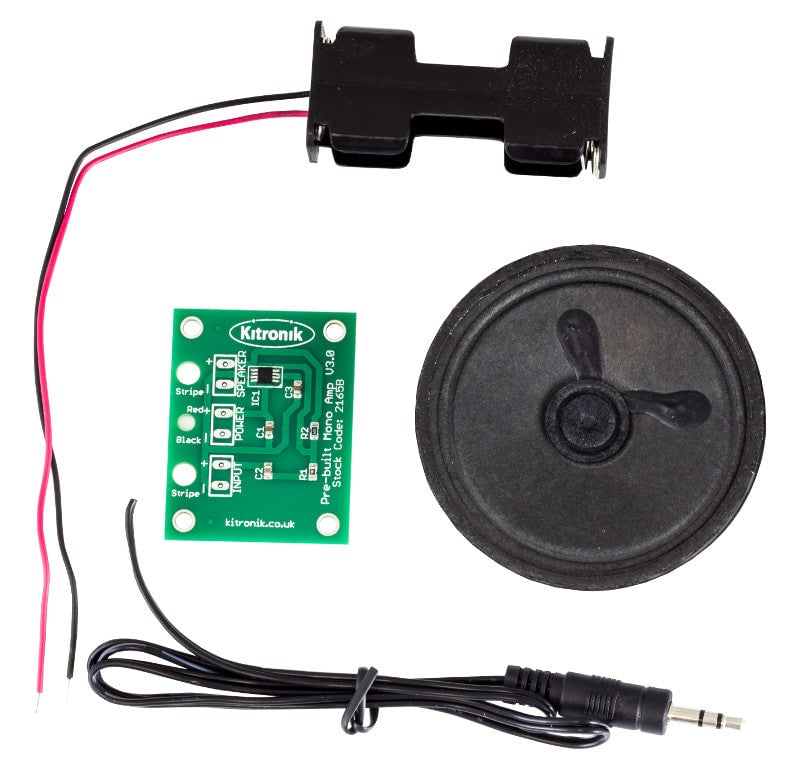

Contents:

• 1 x 3.5mm Mono Jack Lead, 50cm length
• 1 x 8 ohm 66mm Speaker
• 1 x AA battery Cage with Leads
• 1 x Pre-built Mono Amplifier

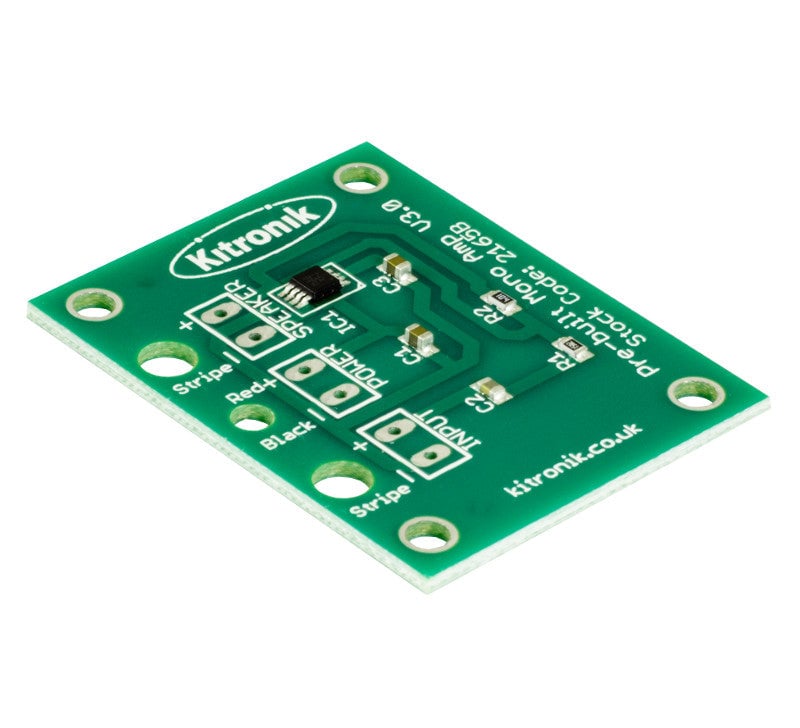

Dimensions:

• PCB Length: 44.5mm
• PCB Width: 35.5mm
• PCB Height: 1.6mm

Requires: Soldering iron, solder, wire cutters, wire strippers, and 2 x AA batteries (not included).
