Kitronik :MOVE Sensor Interface Board for the BBC micro:bit

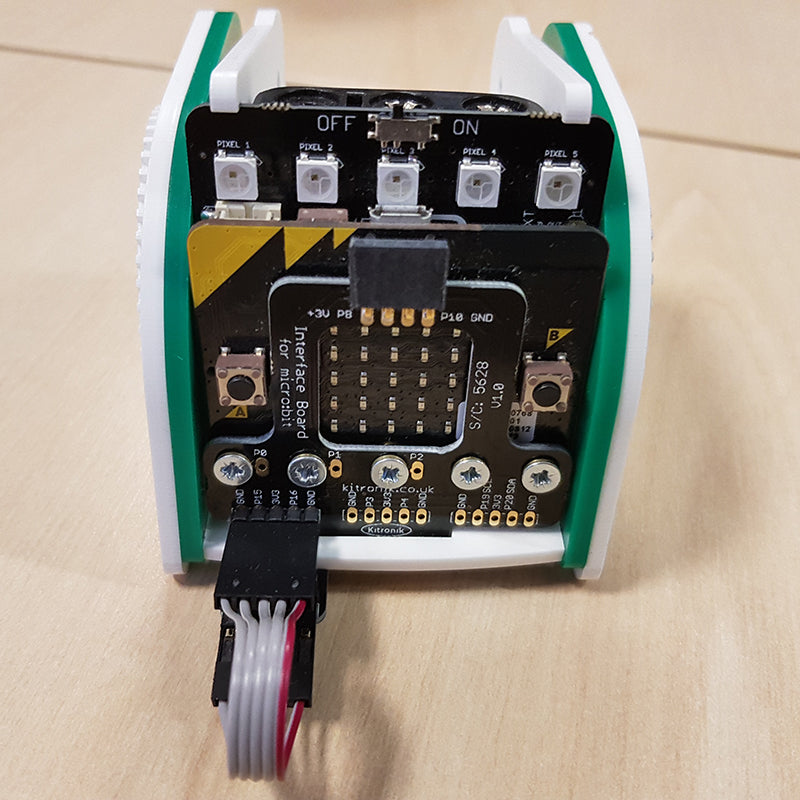

Expand the capabilities of your :MOVE mini Robotics projects with the :MOVE Sensor Interface Board for the BBC micro:bit. This breakout board connects directly to the micro:bit and Servo:Lite assembly, enabling the addition of various sensors such as line followers and ultrasonic sensors to add sensory input to your projects.

The interface board requires no soldering and is attached using the five provided screws, allowing for easy integration. By adding sensors, your :MOVE mini Robots can become more autonomous and responsive to their environment.

Features:

• Add external sensor input to the BBC micro:bit.
• Expand the functionality of your :MOVE mini Robots.
• Enable environmental interaction by adding sensors.

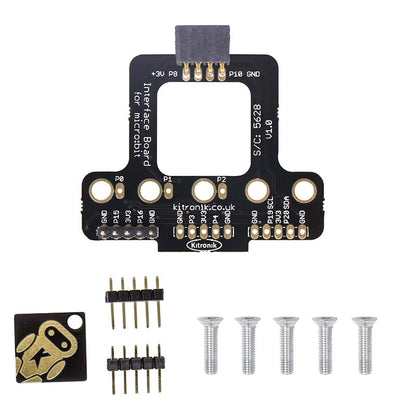

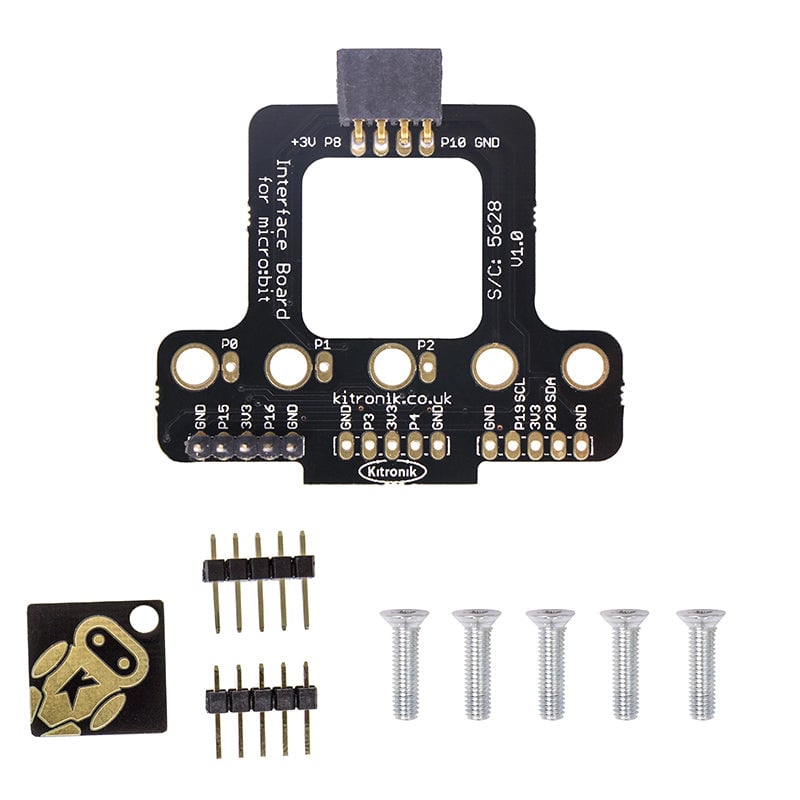

Contents:

• 1 x :MOVE Sensor Interface Board for the BBC micro:bit
• 5 x CS M3 12mm Screws
• 2 x 5 PCB pin headers
• 1 x small Kitronik keyring

Dimensions:

• Max Height: 48mm
• Max Width: 52mm
• PCB Thickness: 1.5mm

Requires:

• 1 x :MOVE mini buggy kit or 1 x Servo:Lite board
• 1 x Micro USB Cable
• 1 x Small Phillips Screwdriver

Note:

This product is discontinued and is not available for purchase; this page is for reference for existing customers.
