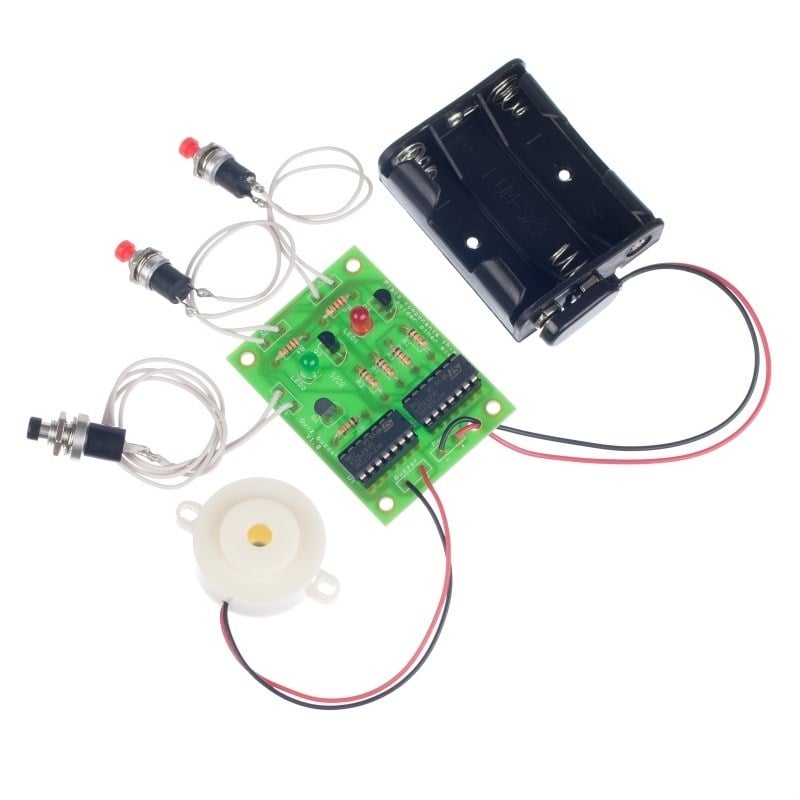

Kitronik Quiz Buzzer Project Kit

The Kitronik Quiz Buzzer Project Kit enables two people or teams to compete by pressing their buzzer first. When a button is pressed, the buzzer sounds and either a red or green LED lights to indicate who was fastest. This educational project is ideal for demonstrating a variety of electronic components and concepts.

Features:

• Audio and visual indicator (buzzer and LED).
• Demonstrates use of push to make and push to break switches, thyristors as latches, transistors, logic gates, LEDs, and buzzers.

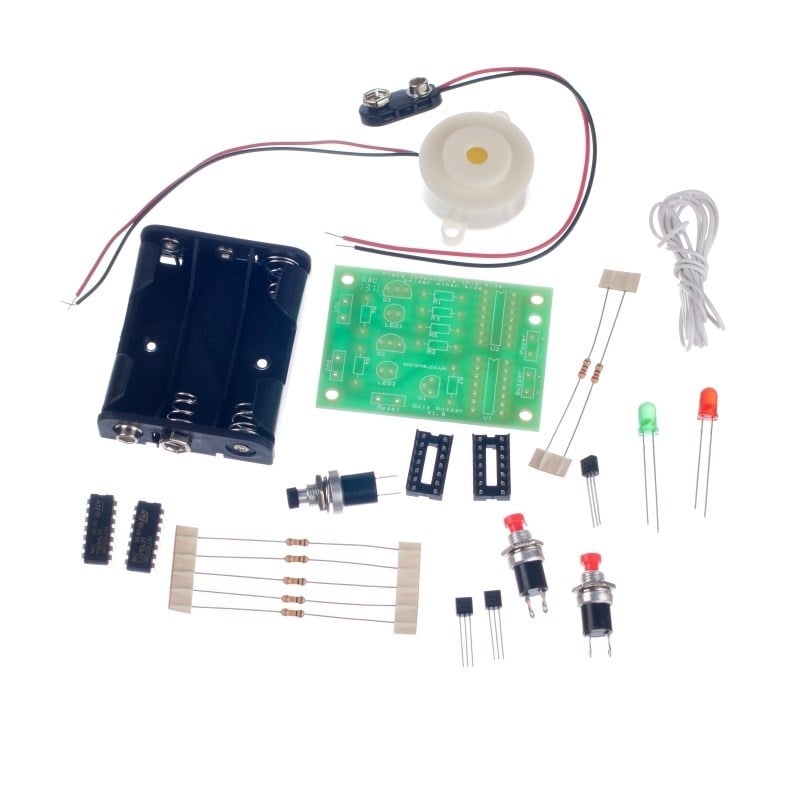

Contents:

• 1 x Quad 2 Input AND Gate (4081B)
• 1 x Quad 2 Input OR Gate (4071B)
• 2 x IC Socket 14 Pin
• 2 x Miniature Push to Make Switch, Red
• 1 x Miniature Push to Break Switch, Black
• 1 x Red 5mm Diffused LED – 275mCd
• 1 x Green 5mm Diffused LED – 35mCd
• 5 x 10K Resistor
• 2 x 220R Resistor
• 2 x 2N5061 Thyristor
• 1 x BC547 NPN Transistor
• 1 x Piezo Buzzer (with Drive)
• 1 x PP3 Battery Clip Lead (Heavy Duty)
• 1 x 3xAA Battery Cage with Clip
• 1 x Quiz Buzzer PCB

Dimensions:

• PCB Length: 60mm
• PCB Width: 43mm

Requires (not included): 3 x AA Batteries, Soldering Iron, Solder, Wire Cutters, Wire Strippers.

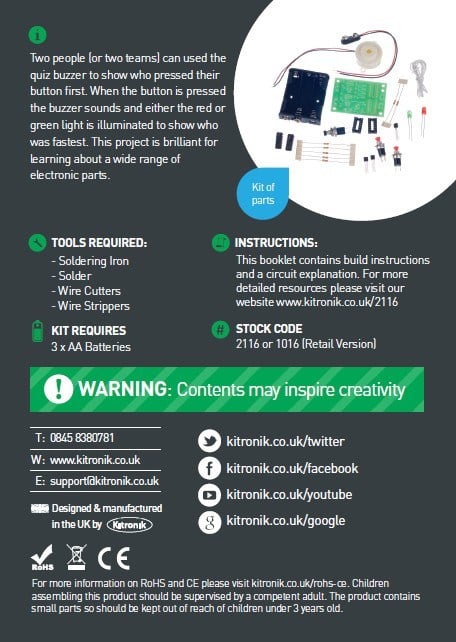

This kit is supplied in a grip seal bag and provides detailed notes for building and understanding the project. Perfect for educational use and electronics learning.
