Kitronik Round Side Illumination LED Module

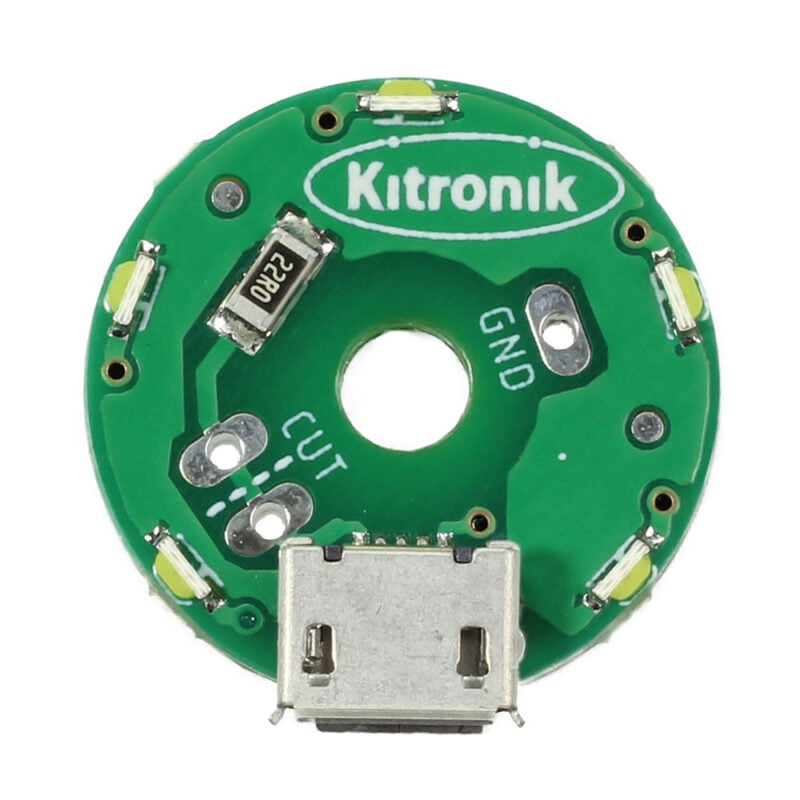

The Kitronik Round Side Illumination LED Module is a pre-built, low-power lighting solution ideal for custom enclosure designs. Featuring 5 bright white LEDs arranged around the board’s edge facing outward, it is perfect for accent lighting, such as corners, under-glow for shelving, desk lamps, and illuminated signs.

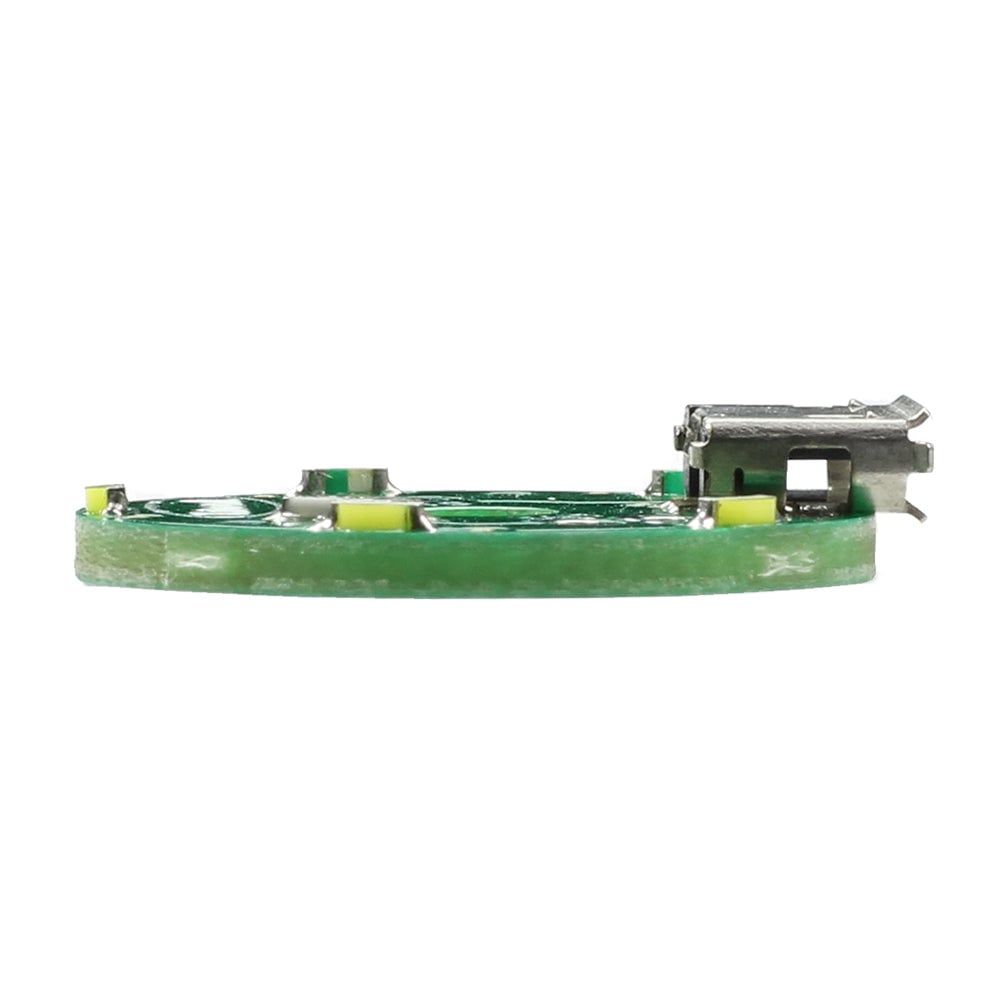

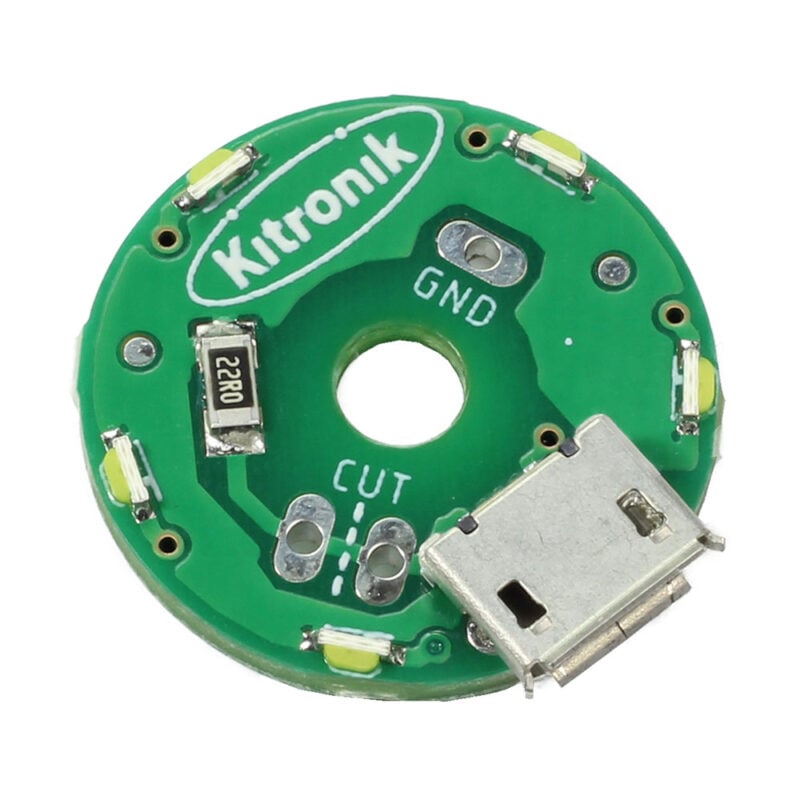

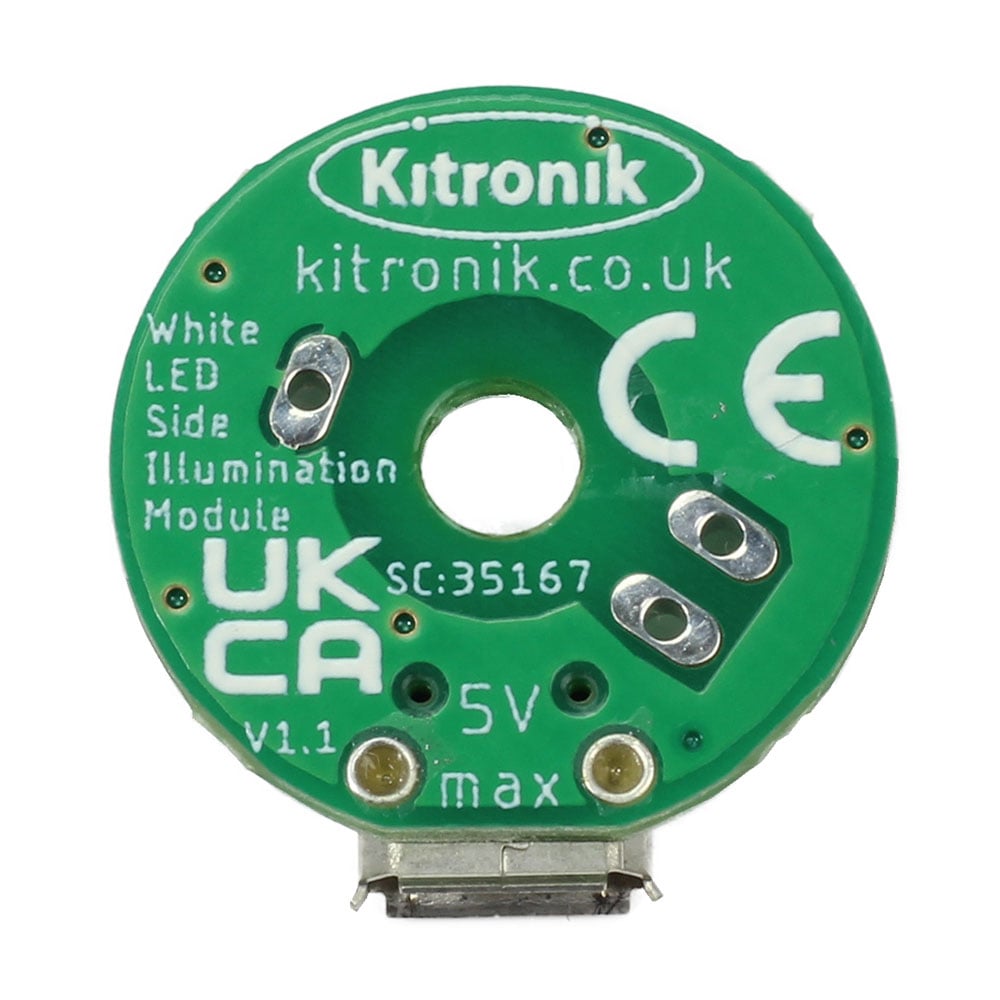

The PCB measures 20mm in diameter and 4.1mm high, with a single central M4 mounting hole. A remote switch can be connected via pads on the PCB for remote operation within an enclosure. The module can be powered via its onboard micro USB connector or power solder pads using a suitable 5V power supply such as a computer USB port.

• Low power consumption (under 100mA)
• Five bright white LEDs arranged around the edge
• Single central M4 mounting hole (4mm diameter)
• Option to connect a remote switch via PCB pads
• Powered by micro USB connector or solder pads, operating at 5V
• PCB diameter 20mm; including USB connector 21mm; height 4.1mm

Contents:

• 1 x Kitronik Round Side Illumination LED Module

Requires: USB lead or USB lead plus power supply (sold separately).

Resources:

• Datasheet
• Teaching Notes
• Essential Information
