Kitronik Round USB RGB LED Lamp

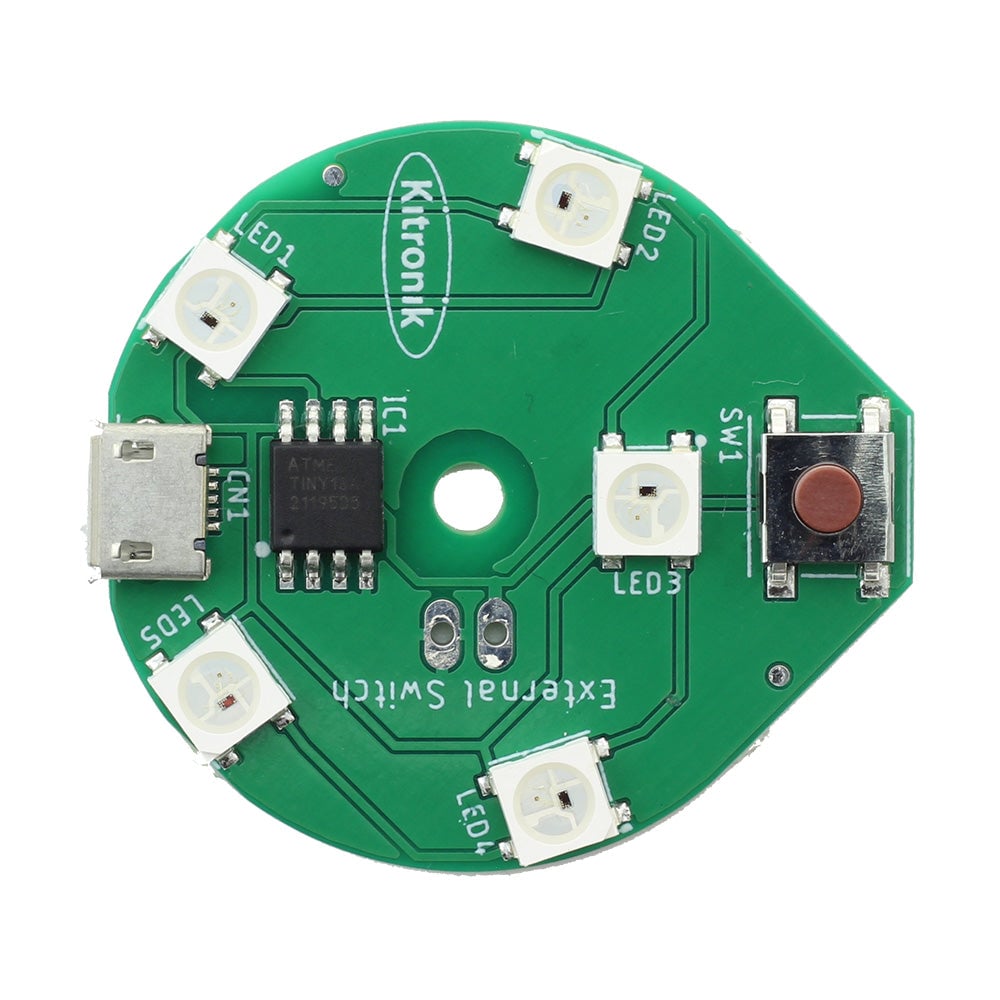

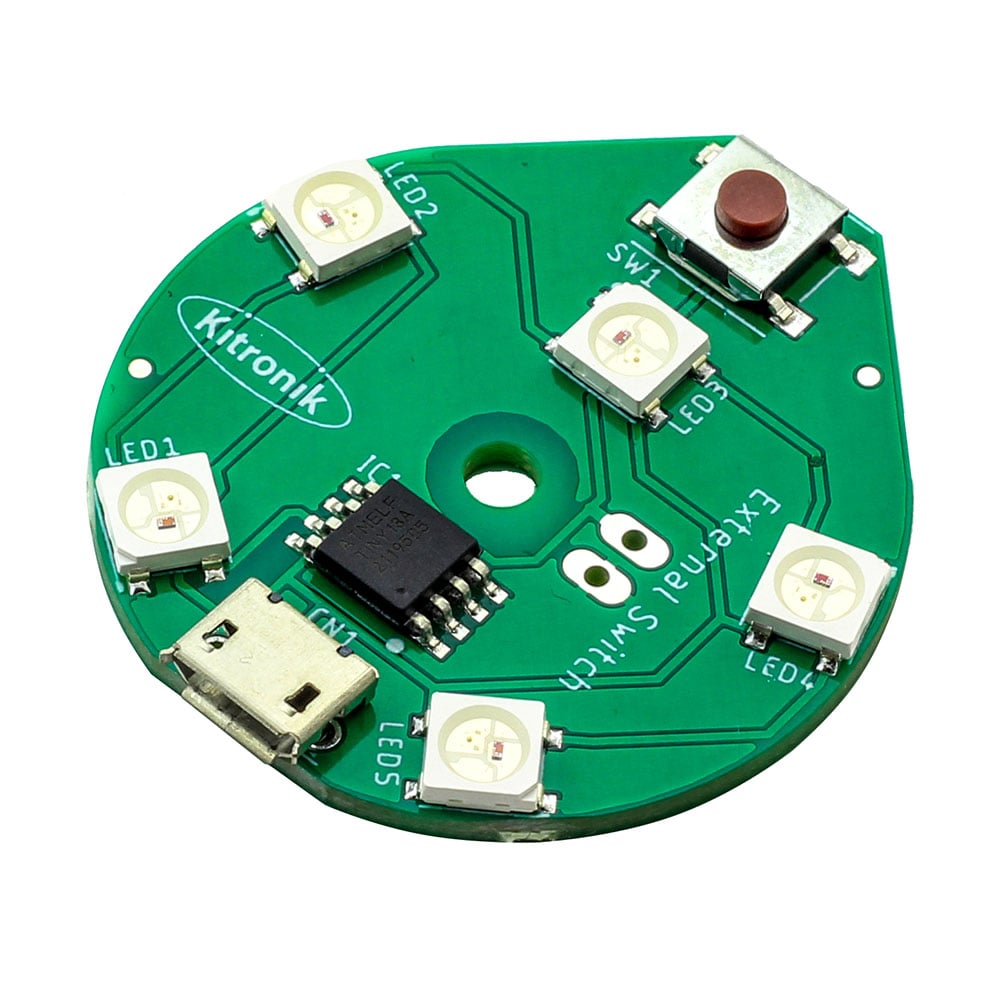

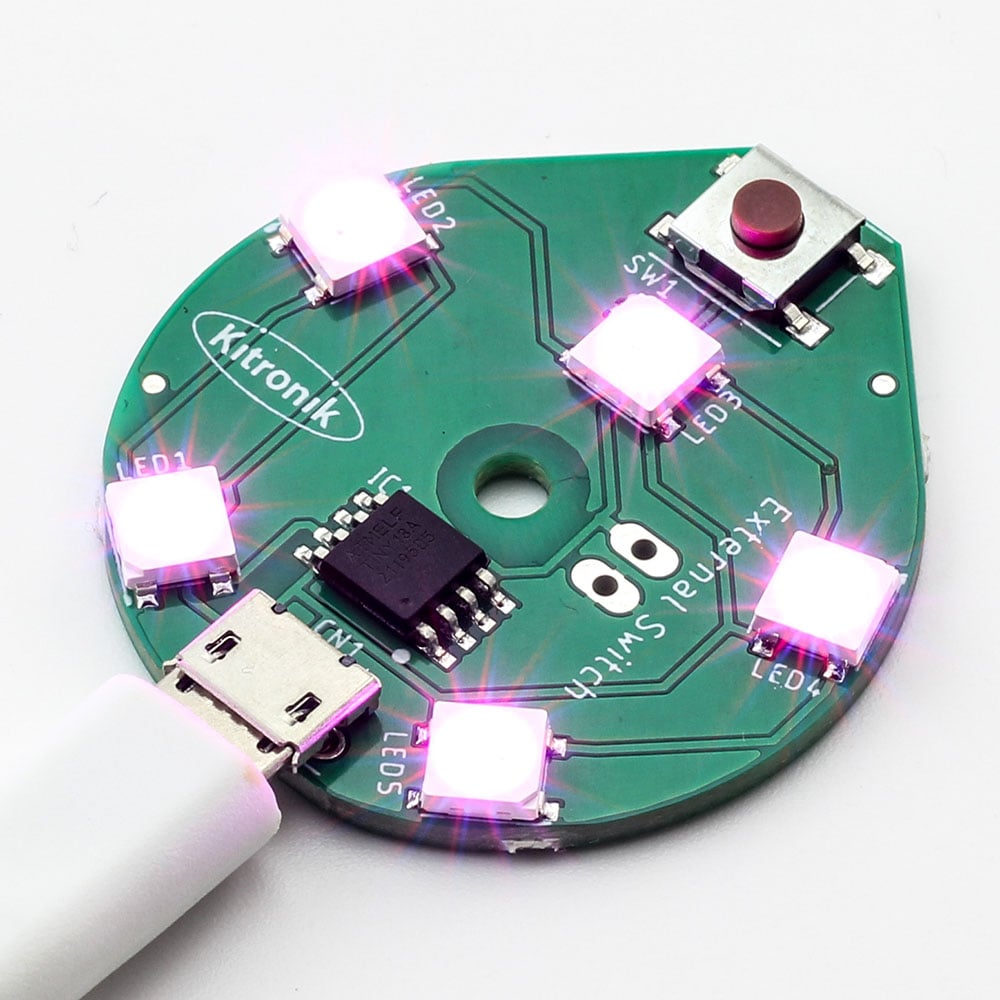

The Kitronik Round USB RGB LED Lamp is a low-power lighting solution designed for mood lighting and accent lighting applications. Featuring a compact and discreet circular PCB measuring 36mm in diameter with a flat underside for easy mounting, it is ideal for incorporation into custom enclosure designs. The lamp contains 5 full-color RGB LEDs spaced evenly for consistent light distribution.

The lamp is powered conveniently via USB, drawing less than 100mA, making it compatible with computer USB ports and other 5V USB power supplies. A momentary tactile switch on the board allows cycling through four distinct lighting patterns and an off state. A remote momentary switch can also be added in parallel for remote operation within enclosures.

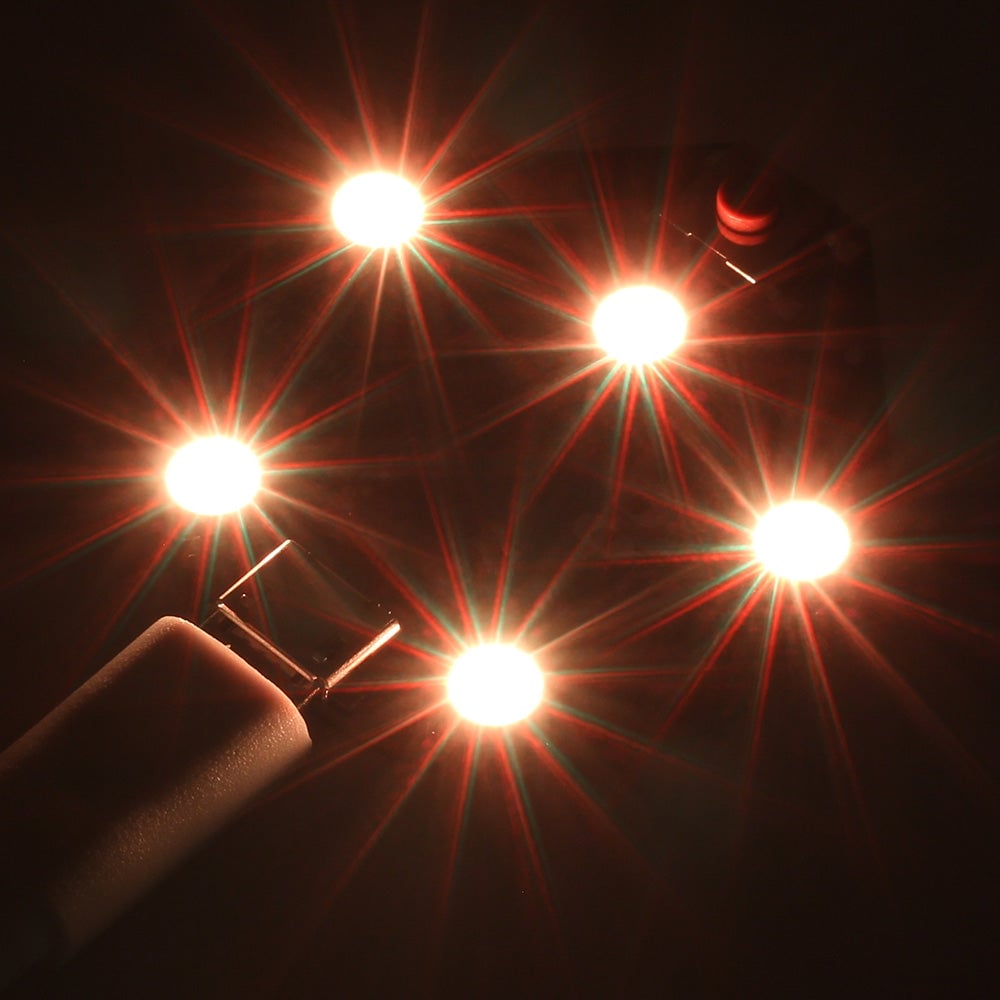

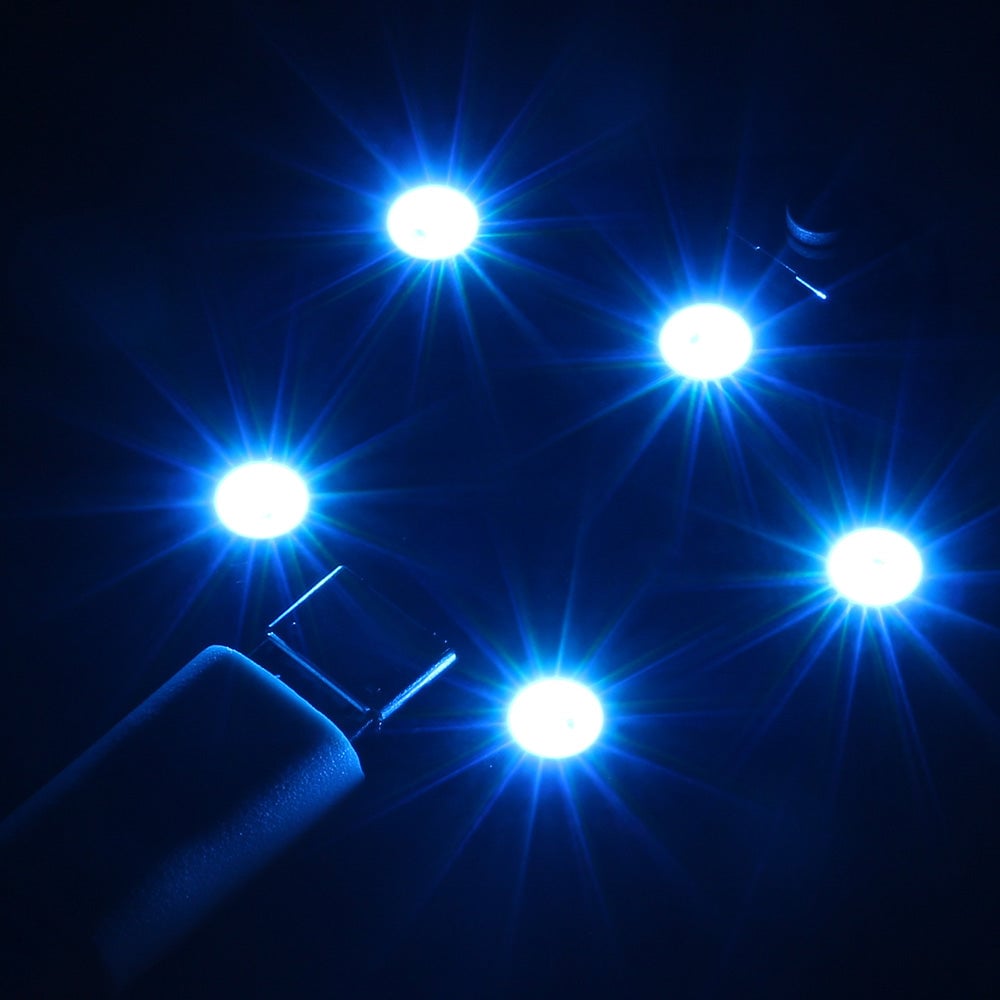

• 5 full-color RGB LEDs with 4 user-selectable lighting patterns (rainbow fade, brightness fade, RGB chase, and off)

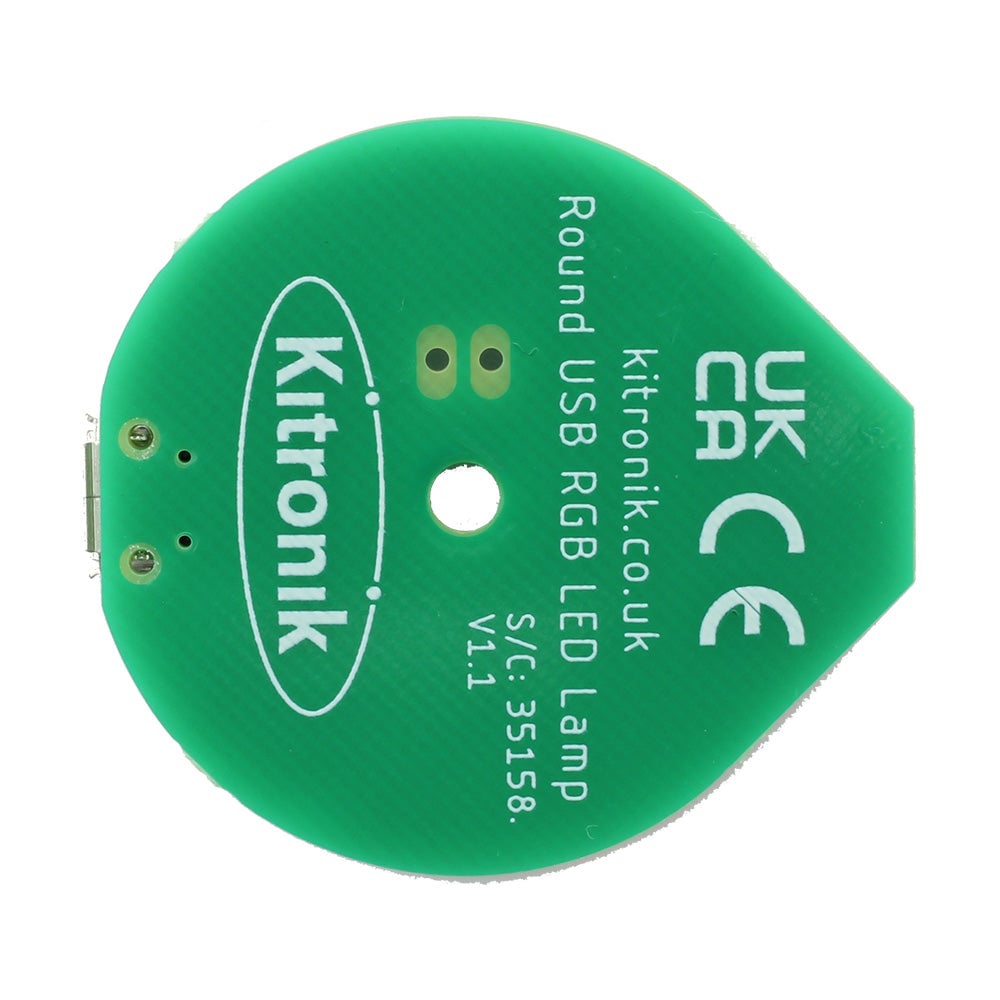

• Compact 36mm diameter PCB with single centred M3 mounting hole (3.3mm diameter)
• Low power consumption: typically 60mA at 5V, peak under 90mA
• Powered via USB connector compatible with computer USB ports
• Onboard tactile button and remote switch option for pattern selection
• Maximum height of 10mm and flat underside for simple enclosure integration

Contents: 1 x Kitronik Round USB RGB LED lamp with pattern selector switch.

Dimensions: Diameter 36mm, Max height 10mm, Mounting hole diameter 3.3mm (M3).

Recommended Accessories: USB lead (1m USB Type-A to Micro-B cable) or USB lead plus power supply for standalone use.
