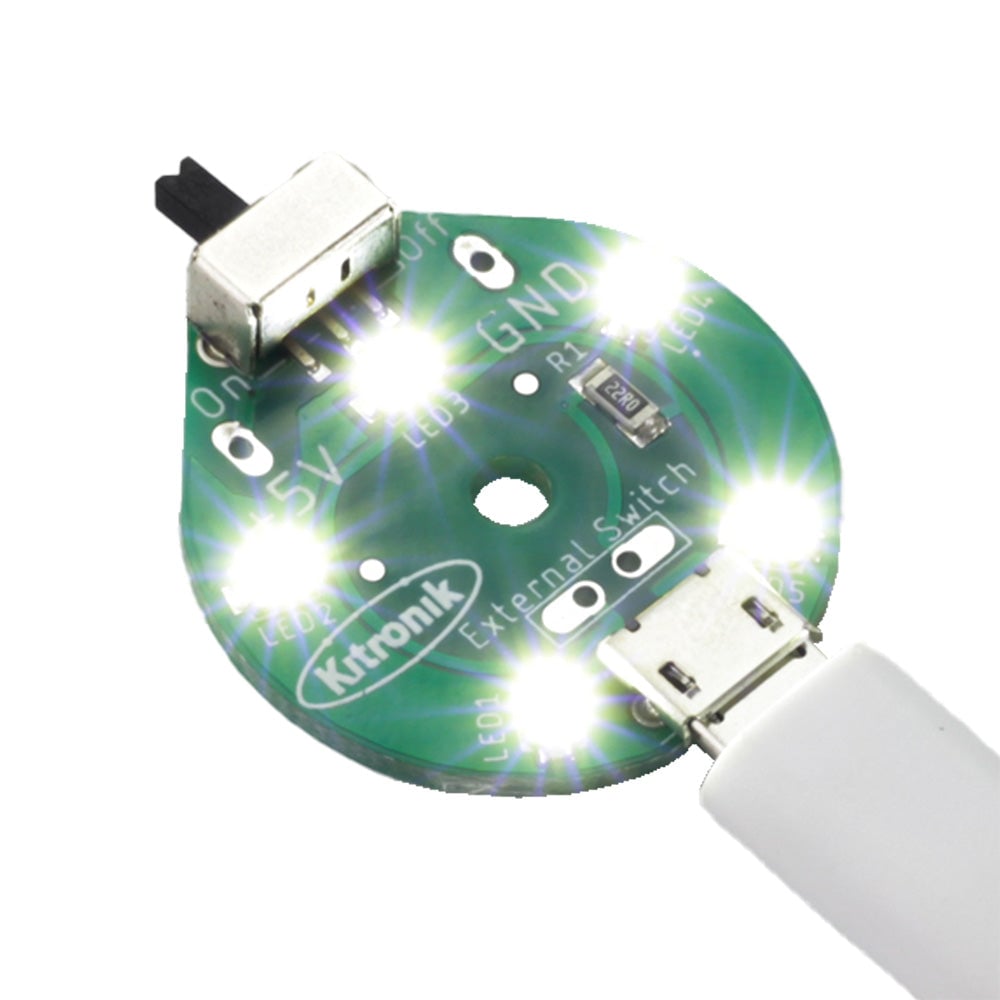

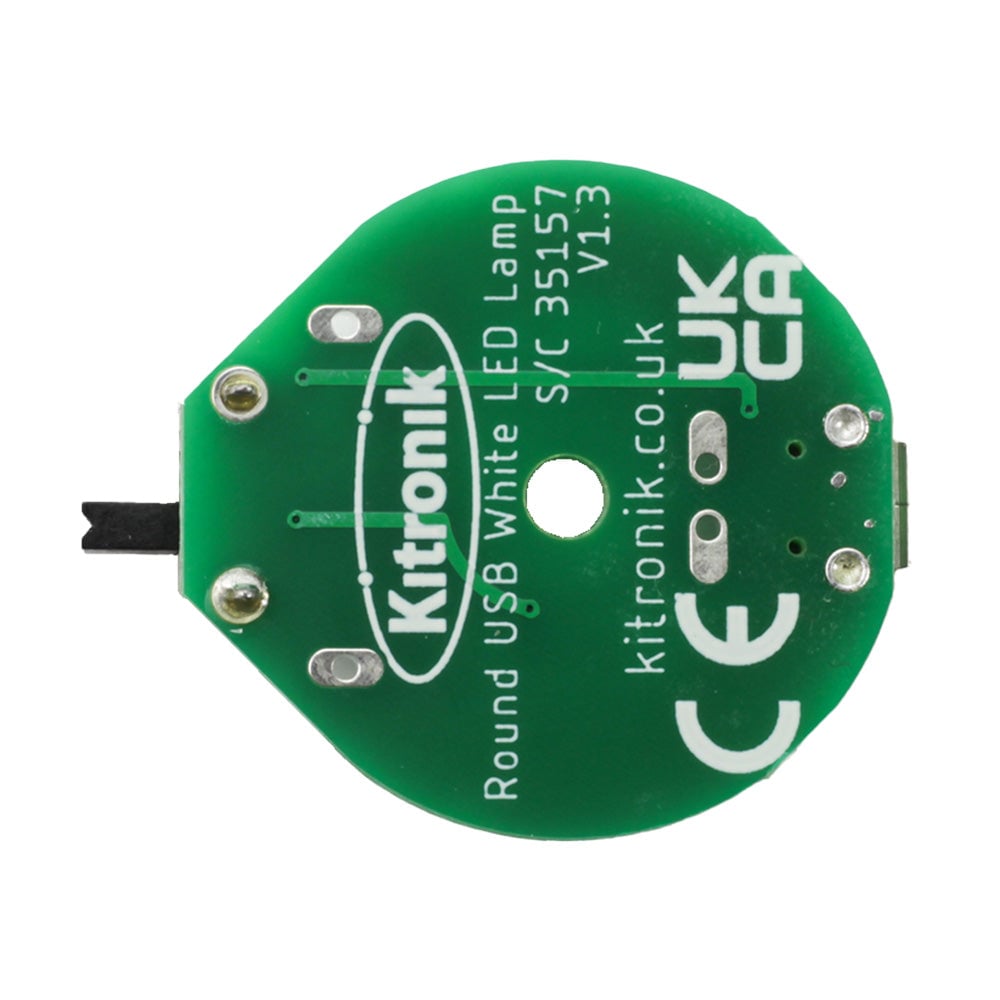

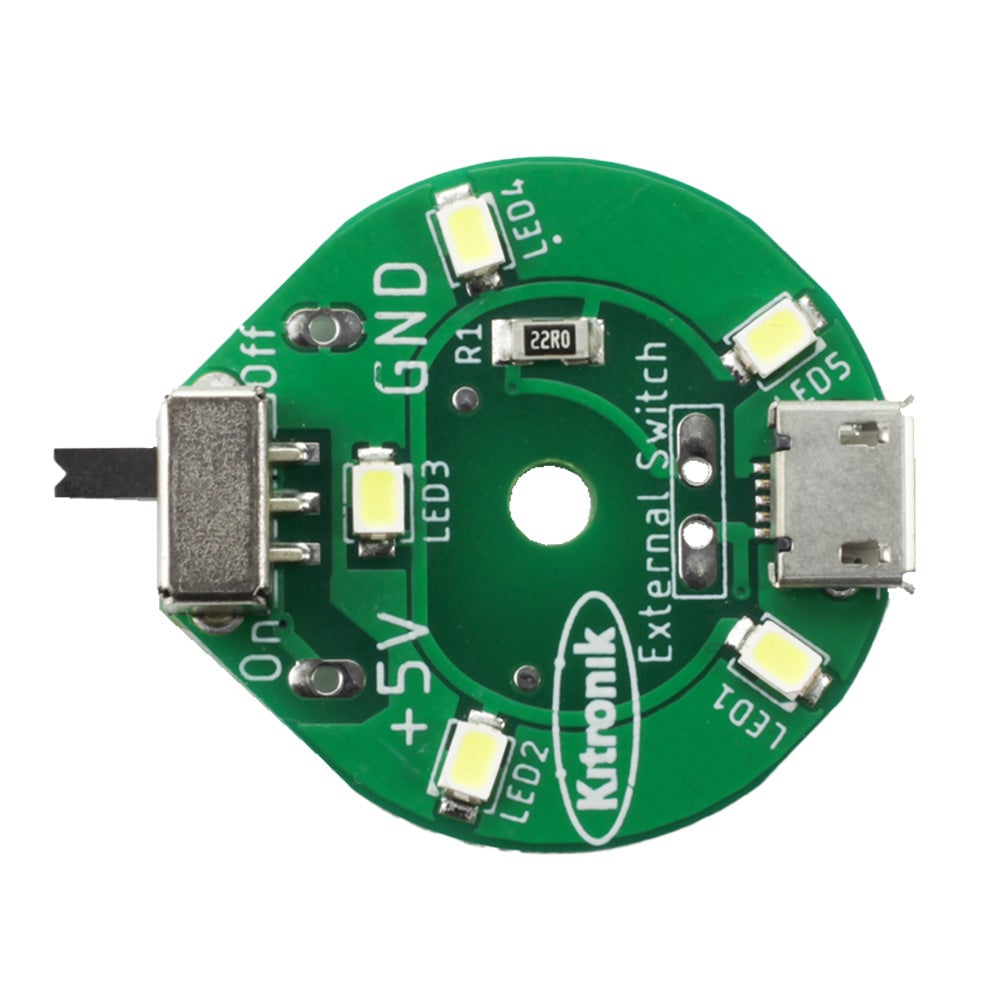

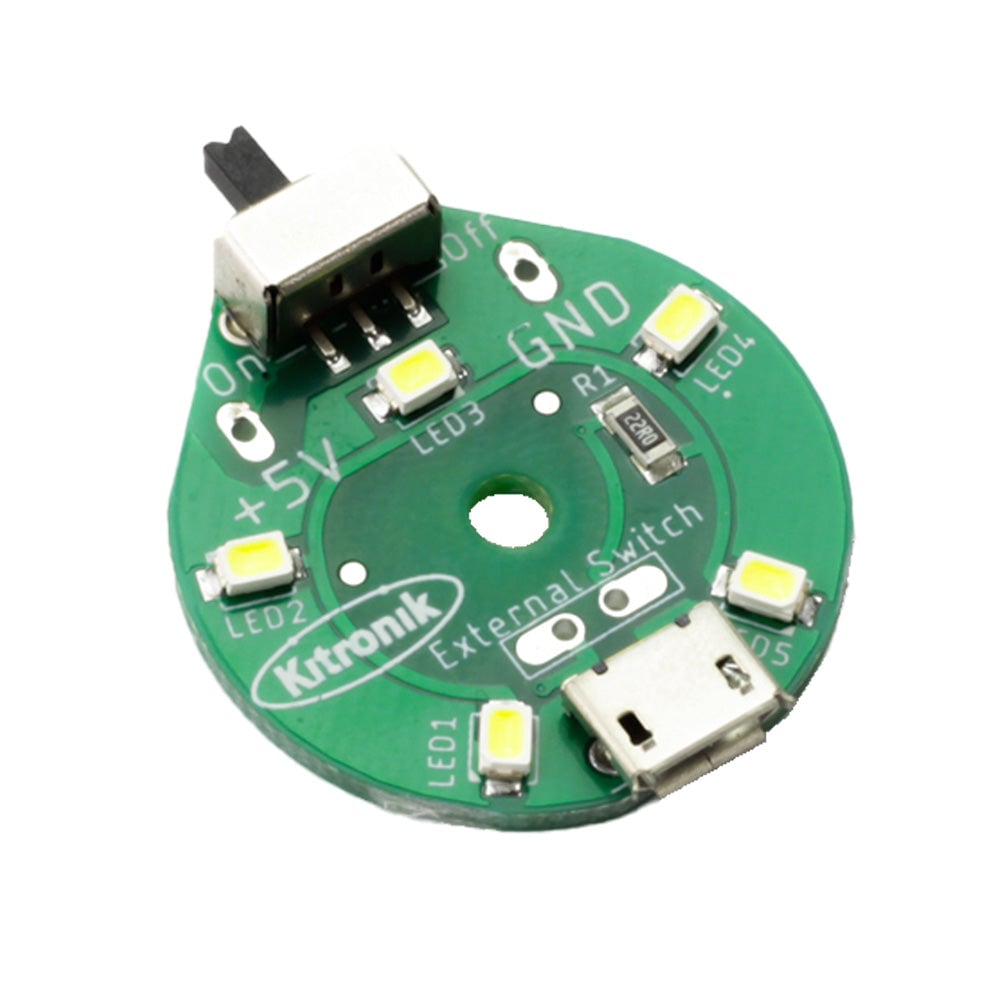

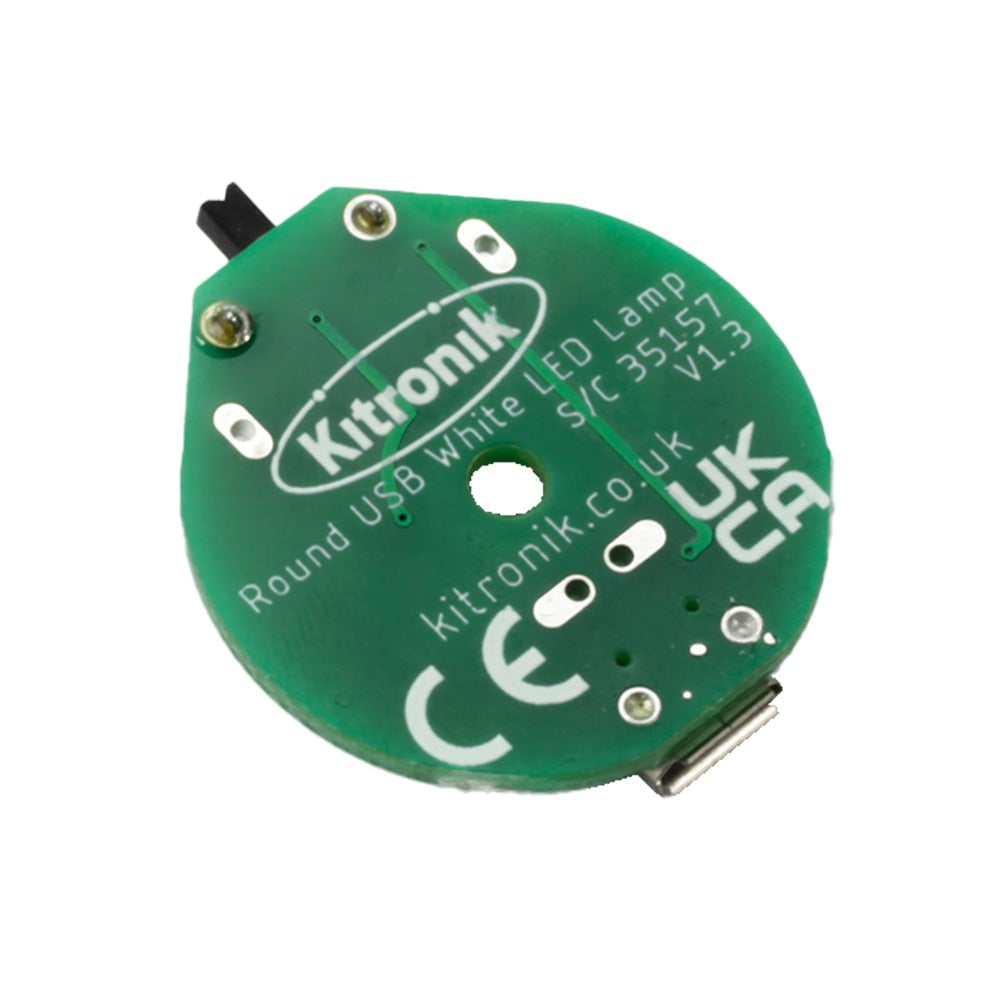

Kitronik Round USB White LED Lamp

The Kitronik Round USB White LED Lamp is a low-power lighting solution featuring 5 white LEDs arranged in a circular layout with 72° separation for even illumination. Designed to fit within a 28mm square area, it is perfect for desk lamps, torch lights, and creative enclosure designs.

Powered via a micro USB connector, it can be conveniently powered by a computer USB port or any suitable 5V power supply, drawing under 100mA which is safe for USB ports.

The lamp includes an onboard on/off switch and pads for an optional remote switch connection, allowing flexible control options. A single M3 mounting hole at the center allows easy installation into your projects.

Features:

• Low power consumption (under 100mA)
• 5 white LEDs evenly spaced at 72° apart
• Onboard on/off switch with pads for additional remote switch
• Single M3 (3.3mm) mounting hole at the center
• Compact design within 28mm diameter and 4mm height
• Powered via micro USB connector from computer or 5V power supply

Contents:

• 1 x Round USB White LED Lamp with onboard switch

Dimensions:

• Maximum Height: 4mm
• Maximum Diameter: 28mm
• Mounting Hole Diameter: 3.3mm (M3)

Requires:

USB lead or USB lead plus power supply (sold separately)
