Kitronik Solar Power Starter Kit

Learn how to harness the energy of the sun with the Kitronik Solar Power Starter Kit. This easy-to-assemble kit enables building a simple solar charging and power supply system for low-power devices, ideal for Electronics and Design & Technology projects.

The kit includes a 5.0V 130mA polycrystalline solar cell, a BAT41 signal diode to prevent battery discharge through the solar cell, an SPST toggle switch, a 5V LED desk lamp kit, a 3x AA battery holder with flying leads, three rechargeable AA batteries (1300mAh), and connecting wires.

Once assembled, place the solar panel in direct sunlight to charge the batteries. The included switch allows power control to enhance recharging efficiency. When fully charged, the batteries can power the LED desk lamp for up to 17 hours.

Features:

• Harness solar energy for low-power devices
• Includes protection diode to prevent battery discharge
• Switch to cut power for efficient recharging
• Compatible with various Kitronik kits like the 5V LED Desk Lamp, FM Radio Kit, and USB Fan Kit
• Great for learning about renewable energy

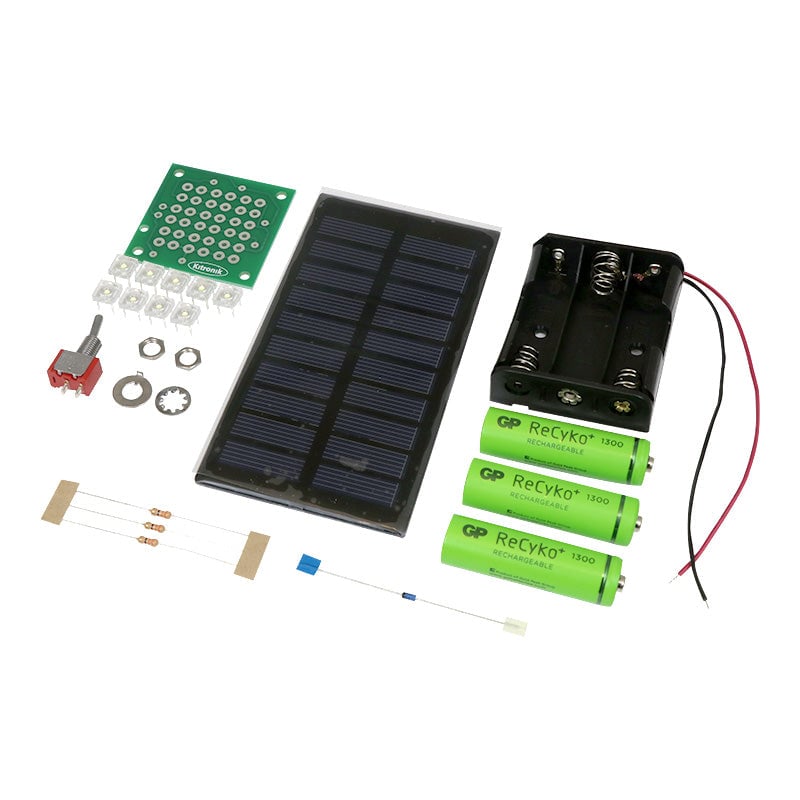

Contents:

• 5.0V 130mA polycrystalline solar cell
• BAT41 signal diode
• SPST toggle switch
• 5V LED desk lamp kit
• 3x AA battery holder with flying leads
• 3x rechargeable AA batteries (1300mAh)
• Connecting wires

Solar Cell Dimensions:

• Length: 58mm
• Width: 110mm
• Height: 3mm

Technical Specifications:

• Nominal Voltage: 5V
• Battery Nominal Voltage: 3.6V
• Battery Capacity: 1300mAh
• Charging Time (UK full sun): 10 hours
• Lamp Kit Supply Voltage Range: 2.5V - 5.5V
• Lamp Kit Nominal Voltage: 5V
• Max Current at Nominal Voltage: 175mA
• Max Current at Battery Voltage (3.6V): 75mA
• Estimated Running Time (Fully charged battery): 17 hours

Note: This kit requires assembly and soldering.
