Kitronik Stereo Amplifier Kit

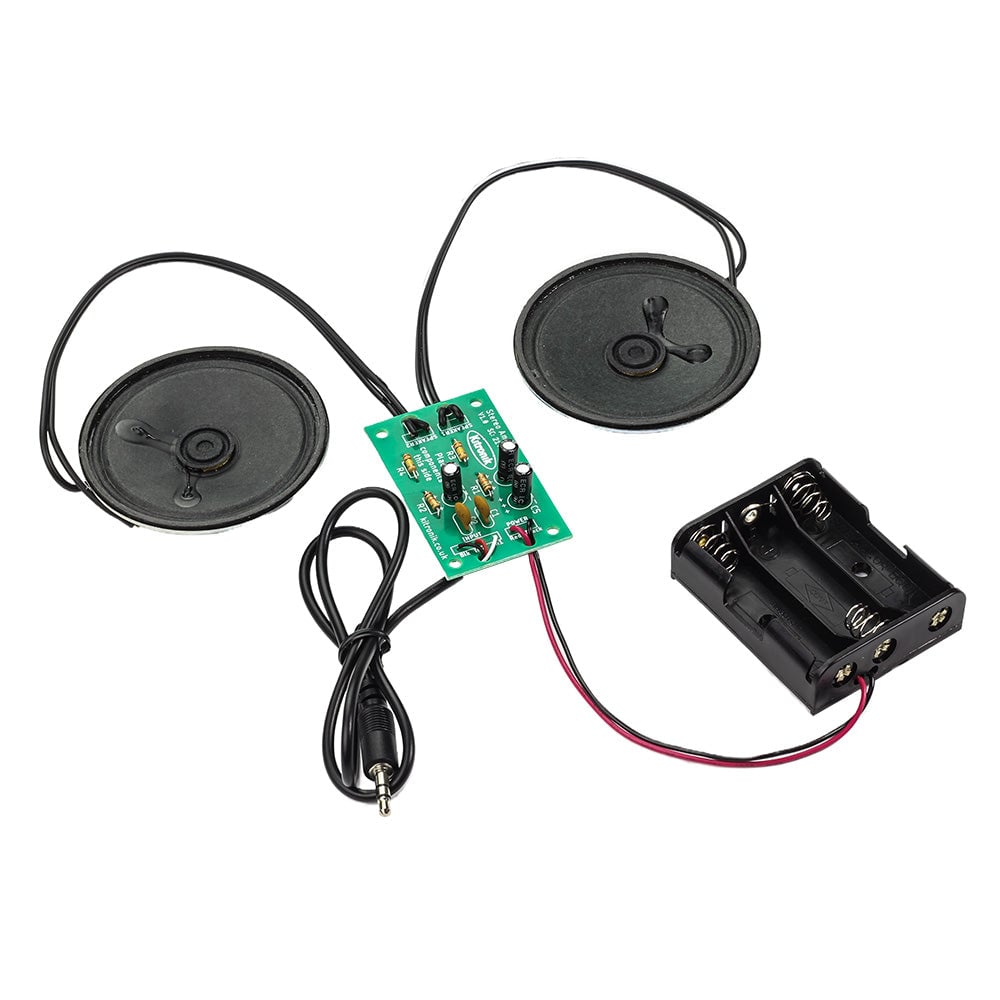

The Kitronik Stereo Amplifier Kit is a 1.5W per channel stereo audio amplifier kit designed for use with personal stereo equipment such as MP3 players and mobile devices with a 3.5mm jack socket. Ideal for classroom use, this kit provides an excellent platform to teach electronics and product design. It features two FM8002A mono amplifier ICs pre-mounted on the PCB, and outputs 1.5W per channel into 8 ohm speakers. The kit includes a 3 x AA battery holder (batteries not included) and M3 mounting holes for easy attachment to an enclosure.

Features:

• 1.5W per channel stereo amplifier.
• Compatible with MP3 players and mobile devices with 3.5mm jack socket.
• Designed for educational use in electronics and product design.
• Two FM8002A mono amplifier ICs pre-fitted to PCB.
• Includes 3 x AA battery holder with flying leads.
• M3 mounting holes for secure enclosure attachment.
• Full downloadable documentation for teachers and students.

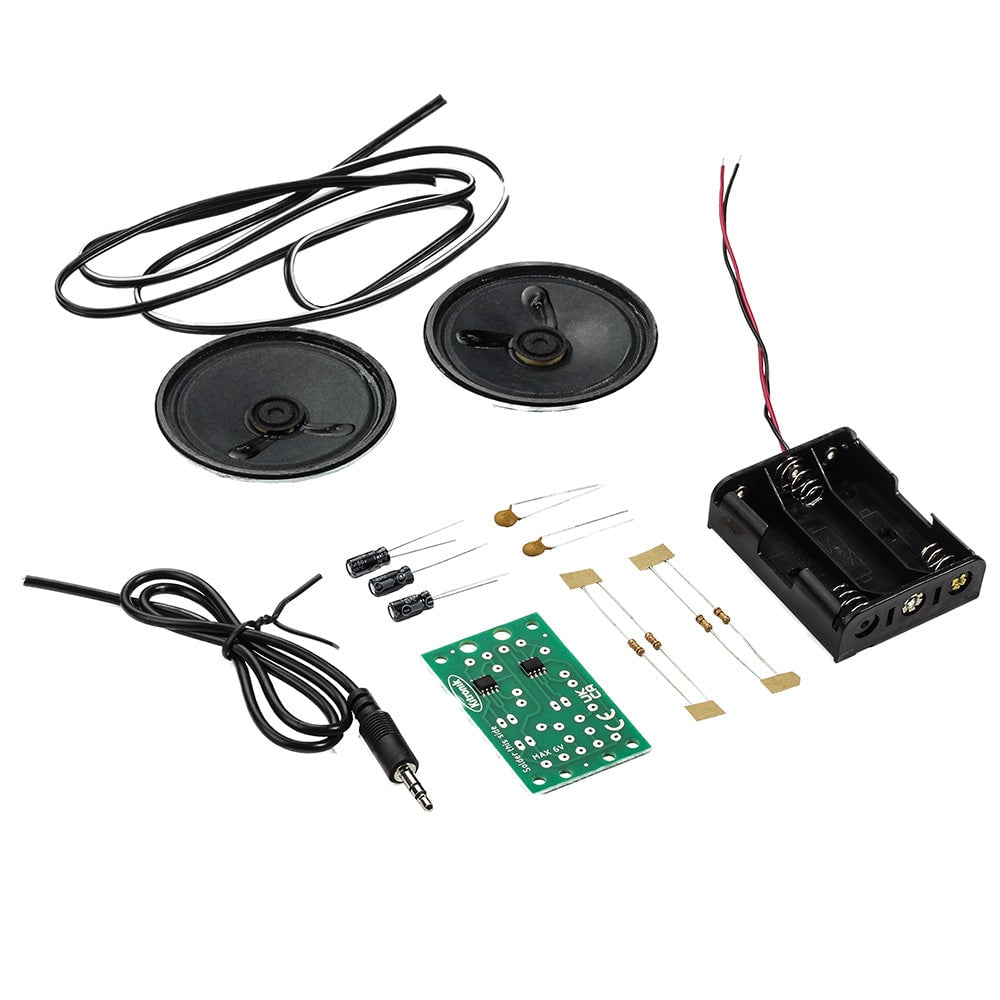

Contents:

• 2 x 15K Resistors
• 2 x 100K Resistors
• 2 x Ceramic Capacitors, 50V, 100nF
• 3 x Electrolytic Capacitors, 50V, 1uF
• 1 x Stereo Amp Cable
• 1 x 3x AA Battery Holder with Flying Leads
• 2 x 8 Ohm 66mm Speakers
• 1m Figure 8 Speaker Cable 2x (7×0.18mm)
• 1 x Stereo Amplifier PCB with amplifier ICs pre-fitted

Specifications:

• PCB Length: 58mm
• PCB Width: 35mm
• Nominal Voltage: 4.5V
• Voltage Range: 3V - 6V
• Standby Current: 3.0mA
• Max Current at Nominal Voltage: 95mA

Note: Requires assembly and soldering. Batteries not included and must be purchased separately.
