Kitronik Timer Project Kit

The Kitronik Timer Project Kit uses a dual 555 timer IC to create an adjustable timing circuit. Once started by pressing the button, an LED illuminates until the preset delay expires, after which a buzzer sounds for the set time period. Both delay and buzzer durations can be adjusted using potentiometers mounted on the PCB.

• Adjustable delay and buzzer sound with maximum time period of 200 seconds and buzzer time up to 10 seconds.
• Ideal for various applications including egg timers and game timers.

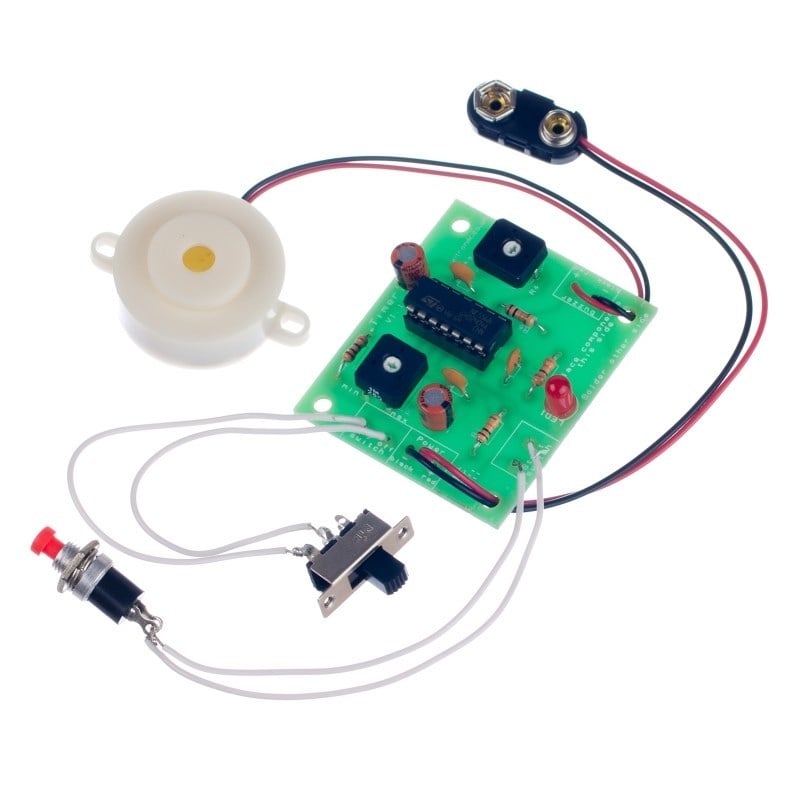

The kit includes components for self-assembly, making it suitable for educational use with detailed instructions and teaching resources provided.

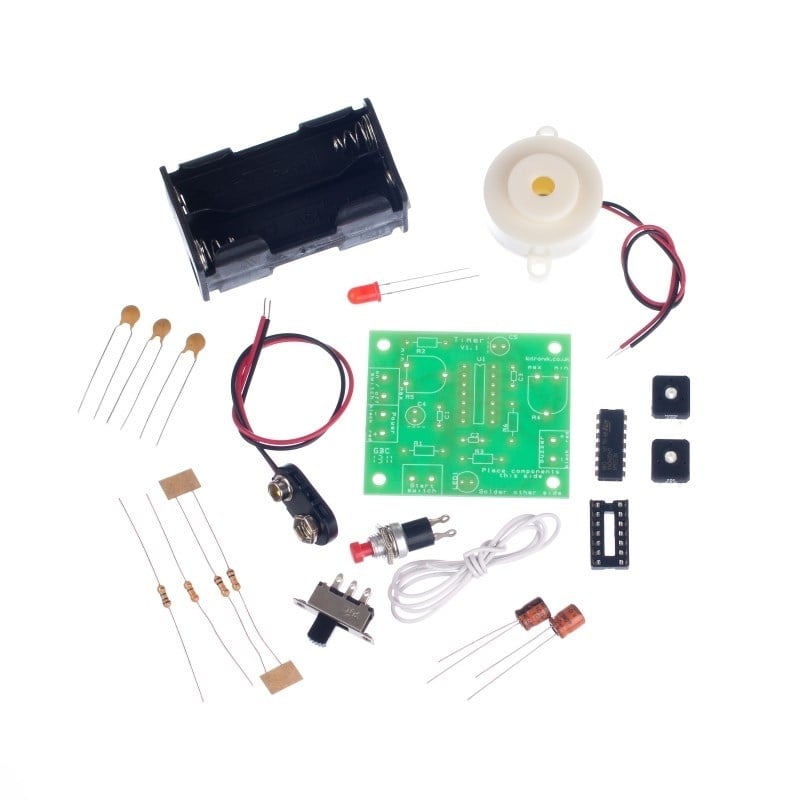

Contents:

• PP3 Battery Clip Lead (Heavy Duty)
• 4xAA Battery Cage with Clip
• Miniature DPDT Slide Switch
• Miniature Push to Make Switch, Red
• NE556 Dual Timer IC
• IC Socket 14 Pin
• Piezo Buzzer (with Drive)
• Capacitors: 3x 10nF Ceramic 50V, 2x 100uF Low Leakage
• Resistors: 2x 10KΩ, 1x 1MΩ, 1x 330Ω
• PCB trimmers: 100k POT and 1M POT
• Red 5mm Diffused LED – 275mCd
• Timer Project Kit PCB

Dimensions:

• PCB Length: 54mm
• PCB Width: 46mm

Requirements:

• 4 x AA Batteries (not included)

Features:

• Adjustable delay and buzzer sound times
• Maximum delay: 200 seconds
• Maximum buzzer time: 10 seconds

Possible Applications:

• Egg timer
• Timer for games

This kit is supplied in a simple grip seal bag and is designed as a self-assembly electronic project kit perfect for intermediate users and educational purposes.
