Kitronik Tipper Trailer Add On For :MOVE mini Mk2

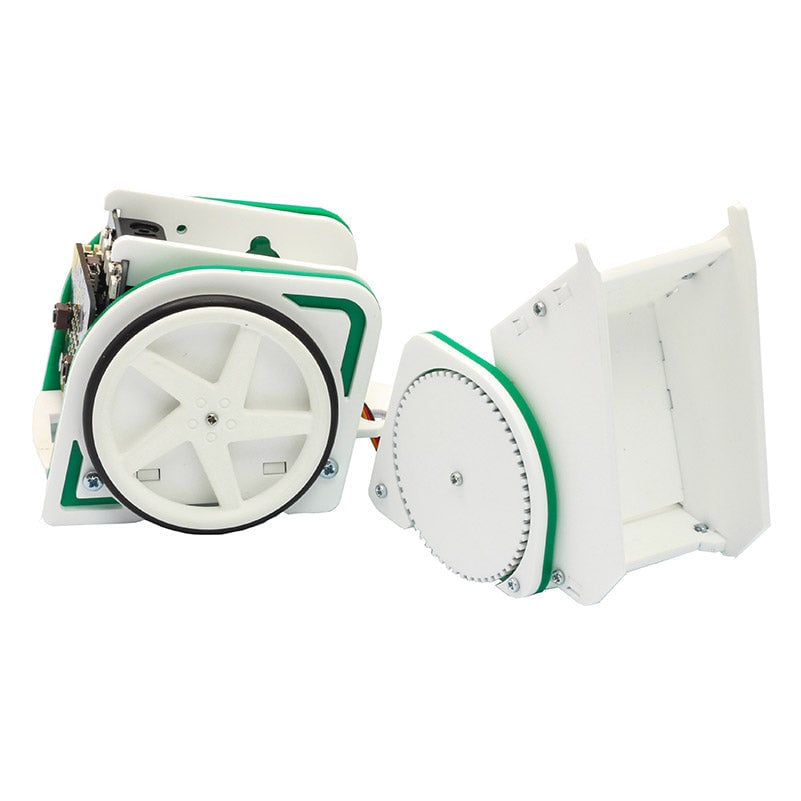

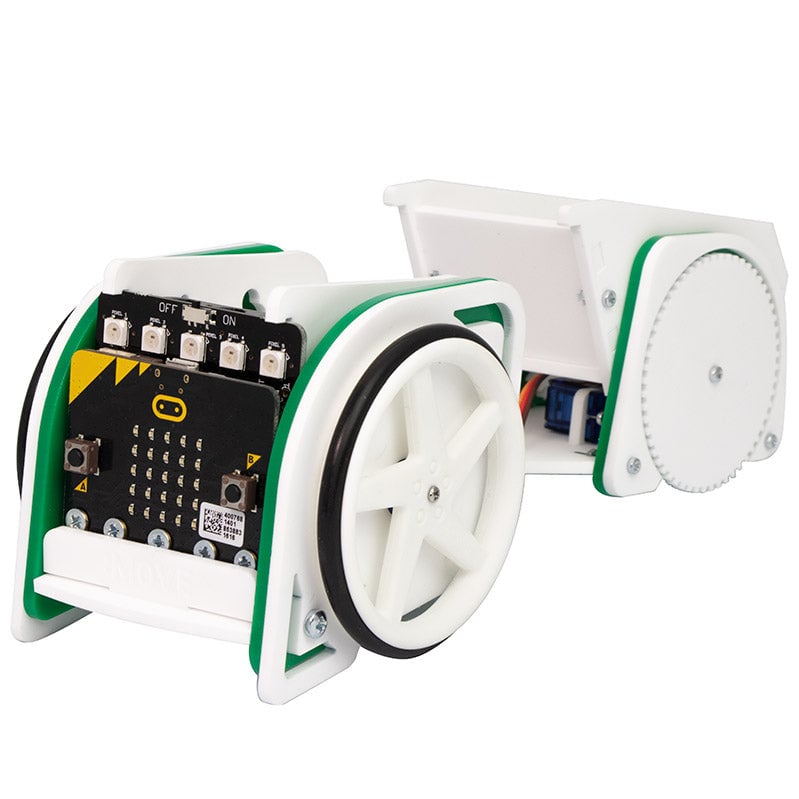

The Kitronik Tipper Trailer Add On enhances the :MOVE mini Mk2 programmable robot buggy by adding the capability to carry and dump items, making your robot more functional and fun.

This self-assembly kit is designed to fit both the :MOVE mini Mk1 and Mk2 models. It includes a mini 180-degree servo to move the trailer up and down, along with all necessary screws and nuts for assembly. Please note that some soldering is required to enable the third servo functionality on the Servo:Lite board, and this disables the onboard ZIP LEDs.

With the add-on, you can program your robot using Microsoft MakeCode Editor and control it via Bluetooth or radio with a second micro:bit controller.

Features:

• Enhances the :MOVE mini Mk2 to carry and dump materials.
• Programmable with Microsoft MakeCode Editor.
• Compatible with Bluetooth control and radio control using a second micro:bit.
• Designed to fit both :MOVE mini Mk1 and Mk2.
• Includes mini 180-degree servo for trailer movement.
• Requires mechanical assembly and soldering for third servo enablement.

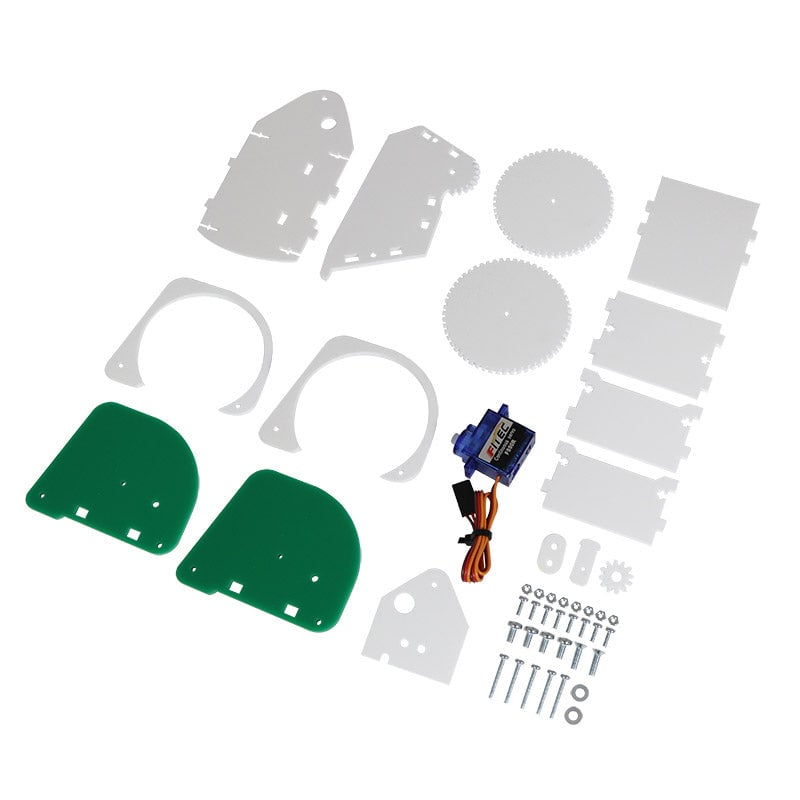

Contents:

• 1 x Set of Tipper Truck parts
• 1 x Mini 180 Degree Servo
• 8 x M2 6mm Pan head steel screws
• 5 x M2 16mm Pan head steel screws
• 8 x M2 Hex Full width nuts
• 2 x 6mm Counter sunk M3 screws
• 2 x 10mm Counter sunk M3 screws
• 2 x M3 Washers

Dimensions:

• Length: 100mm
• Width: 65mm
• Height: 61mm

Requirements:

• 1 x :MOVE mini Mk2 or Mk1 buggy kit for BBC microbit
• 1 x BBC microbit board
• Screwdriver for assembly
