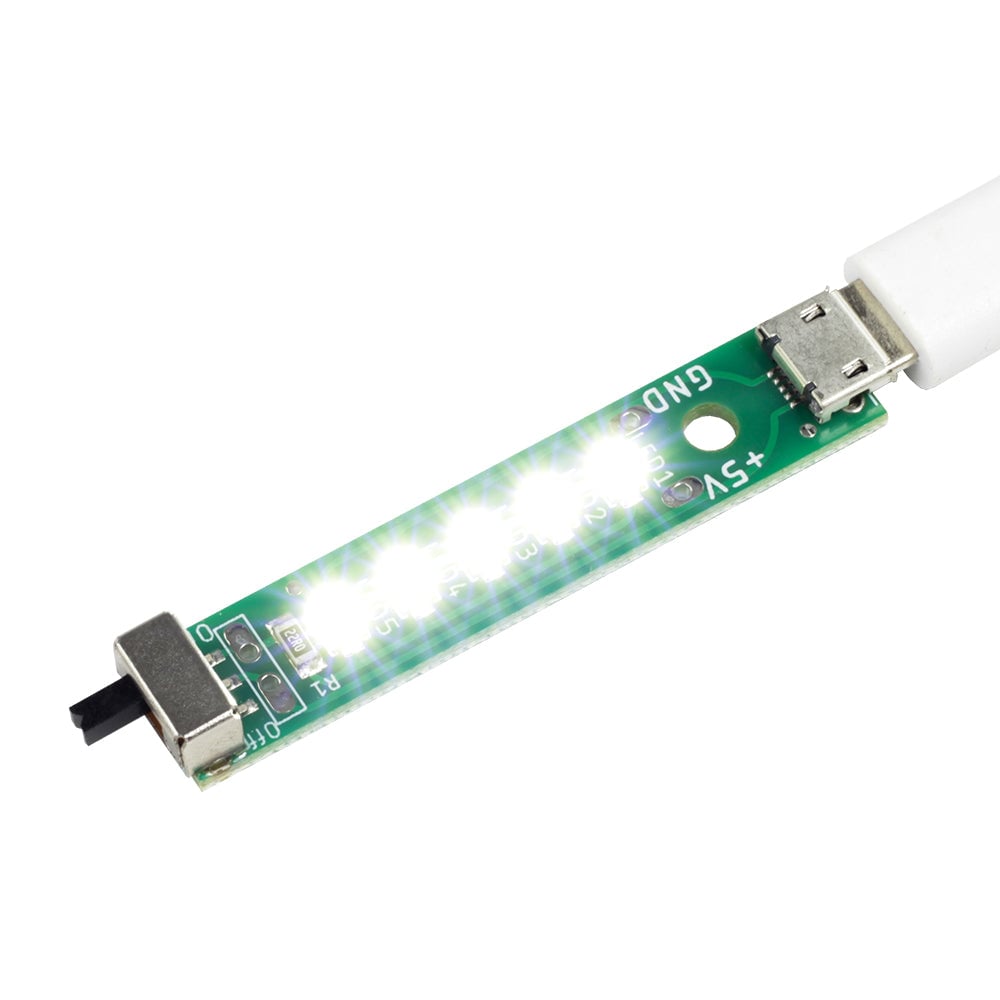

Kitronik USB LED Strip with Power Switch

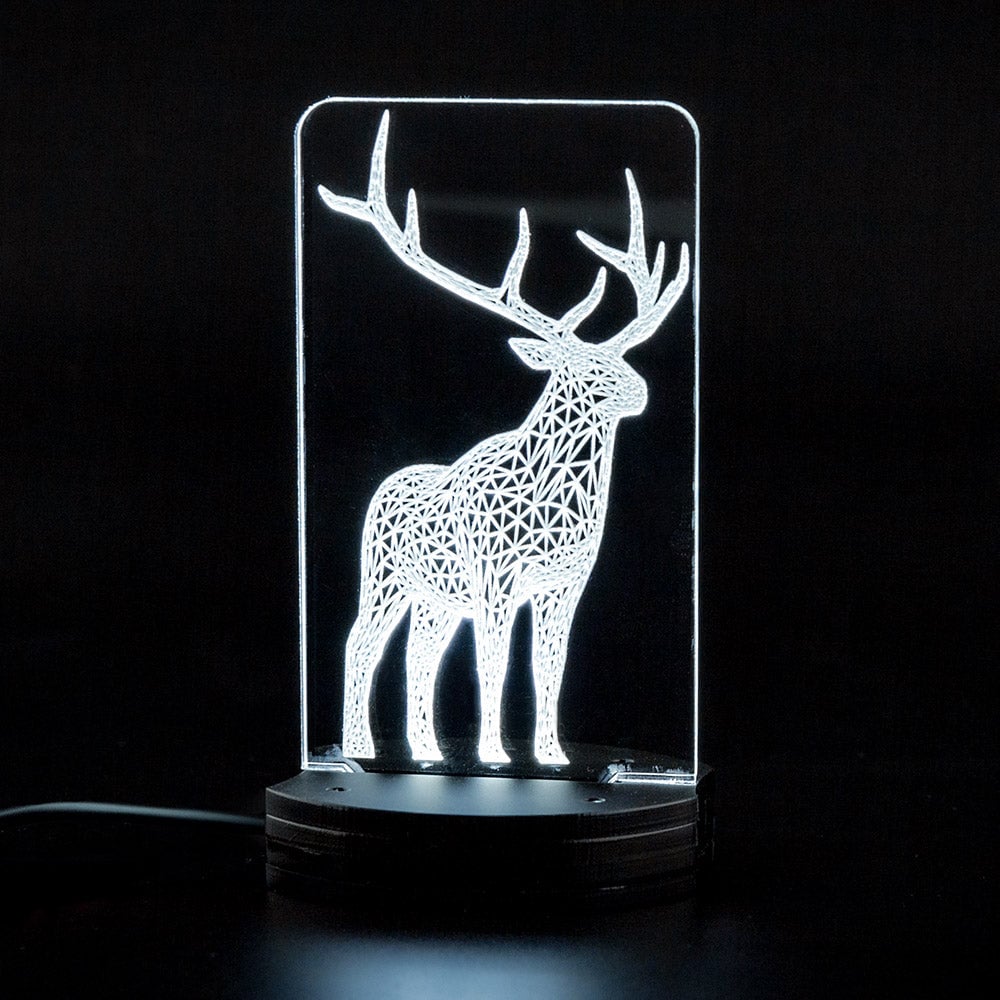

The Kitronik USB LED Strip with Power Switch is a low-power lighting board ideal for desk lamps and accent lighting applications. It features a micro USB power connector suitable for powering via a computer USB port, drawing under 100mA, making it both convenient and energy efficient.

The compact PCB measures approximately 50.5mm long and 10mm wide with a height of 6.5mm including the switch, and includes a single M3 mounting hole. The built-in power switch allows you to easily turn the LEDs on and off. Additionally, the board has solder pads for connecting an optional remote switch, allowing control of the LEDs from a different location. When using a remote switch, the onboard switch should be left in the off position.

• Low power (under 100mA) LED lighting board suitable for enclosure designs.
• Powered via micro USB connector, compatible with computer USB ports.
• Onboard on/off power switch for convenient LED control.
• Pads available for an additional optional remote switch.
• Compact size with a single M3 mounting hole for easy installation.

Contents:
• 1 x Kitronik low power USB LED strip with on/off switch.

Dimensions:

• Length: 50.5mm
• Width: 10mm
• Height (including switch): 6.5mm

Requires: USB lead (e.g. 1m USB Type-A to Micro-B cable) and optionally a USB power supply.
