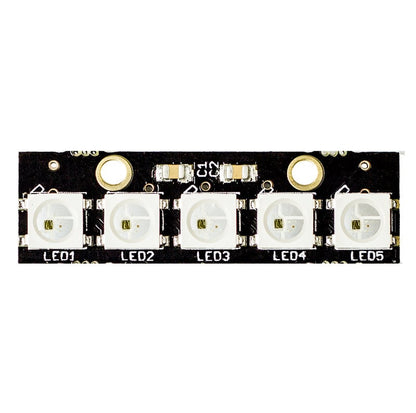

Kitronik ZIP Stick - 5 Individually Addressable ZIP LEDs

The Kitronik ZIP Stick features 5 individually addressable RGB ZIP LEDs, each capable of producing 16,777,216 different colors using 256 levels of brightness on the red, green, and blue elements.

These LEDs use a simple 3-wire connection and are compatible with WS2812B driver codes such as Adafruit NeoPixel, making them ideal for a variety of electronic projects. The integrated reset circuit ensures reliable operation with a supply voltage range of 3.5V to 5V.

Key Features:

• 5 individually addressable RGB ZIP LEDs
• Each LED supports 16,777,216 colors with 256 brightness levels per color
• Simple 3-wire bus connection for all LEDs
• Compatible with Adafruit NeoPixel and other WS2812B drivers
• Integrated reset circuit
• Supply voltage range: 3.5V to 5V

Contents:

• 1 x Kitronik ZIP Stick (5 ZIP LEDs)

Dimensions:

• Length: 34.3mm
• Width: 10.2mm
• Height: 3.2mm
• Hole Diameter: 2.2mm
• 6.86mm pitch between LEDs
• Wiring pads 2.54mm pitch

Technical Specifications:

• Operating Voltage: 3.5V - 5V
• Maximum Current per LED at nominal voltage: 50mA with full brightness on red, green, and blue

Perfect for creating colorful LED projects, the Kitronik ZIP Stick is compatible with popular coding platforms and can be easily controlled using the MakeCode Block or JavaScript editors.
