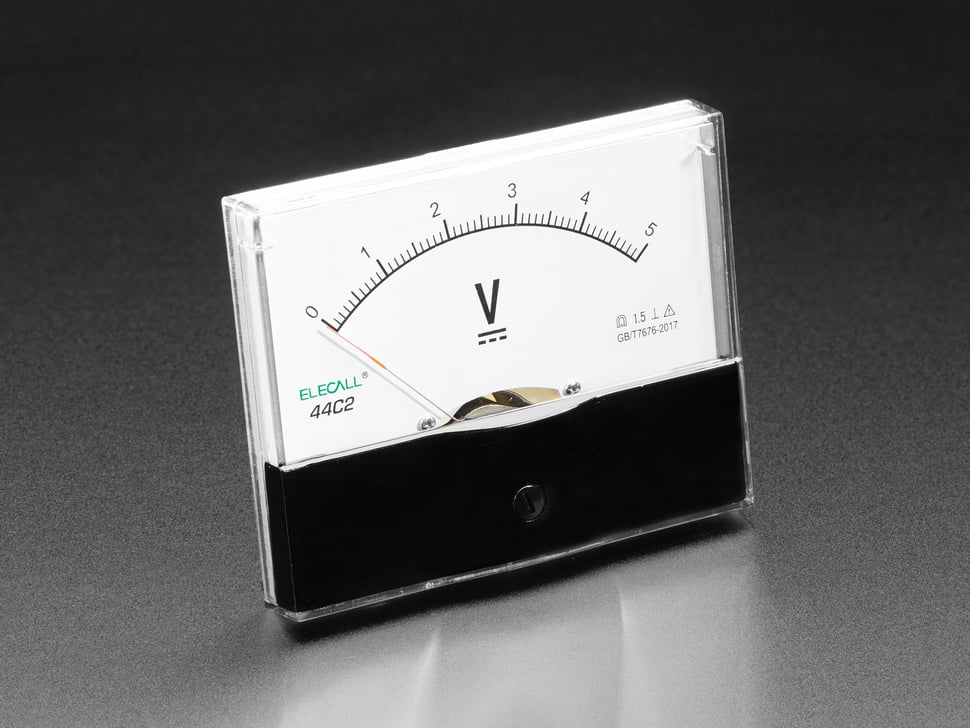

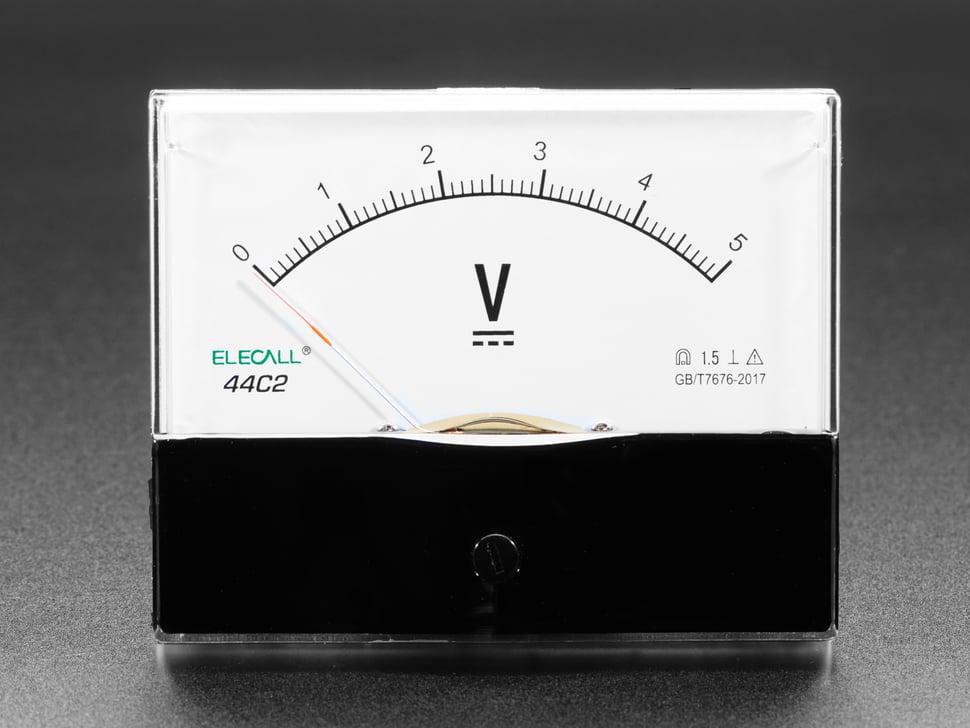

Large 5V Analog Panel Meter

Analog panel meters are simple, elegant, and easy to read. The Large 5V Analog Panel Meter is about handheld-size and can be opened with one screw to replace the backing paper if desired.

Designed for analog signals, it can also work with digital signals by sending a PWM signal from a 5V logic microcontroller at 1KHz or faster.

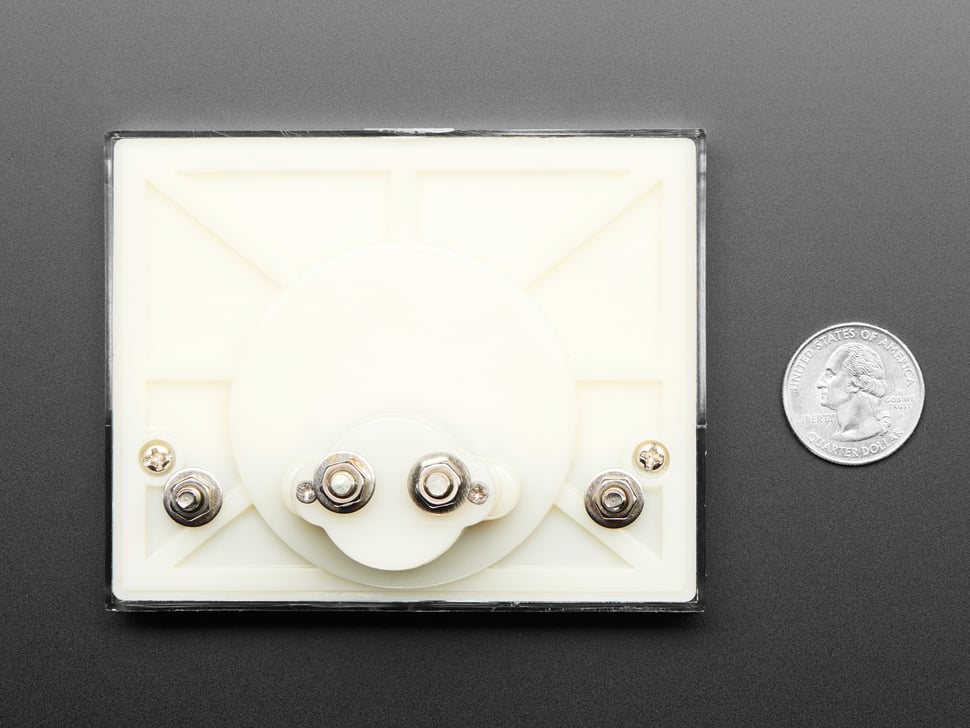

The back features two bolts marked Positive and Negative below the coils. Wires can be wrapped around the bolts and secured with nuts or clamped with alligator clips.

• Panel size: 100 x 80 x 14.2 mm
• Operates on 5V analog and digital PWM signals
• Handheld size, easy to open and modify
• Simple bolt connections for wiring
