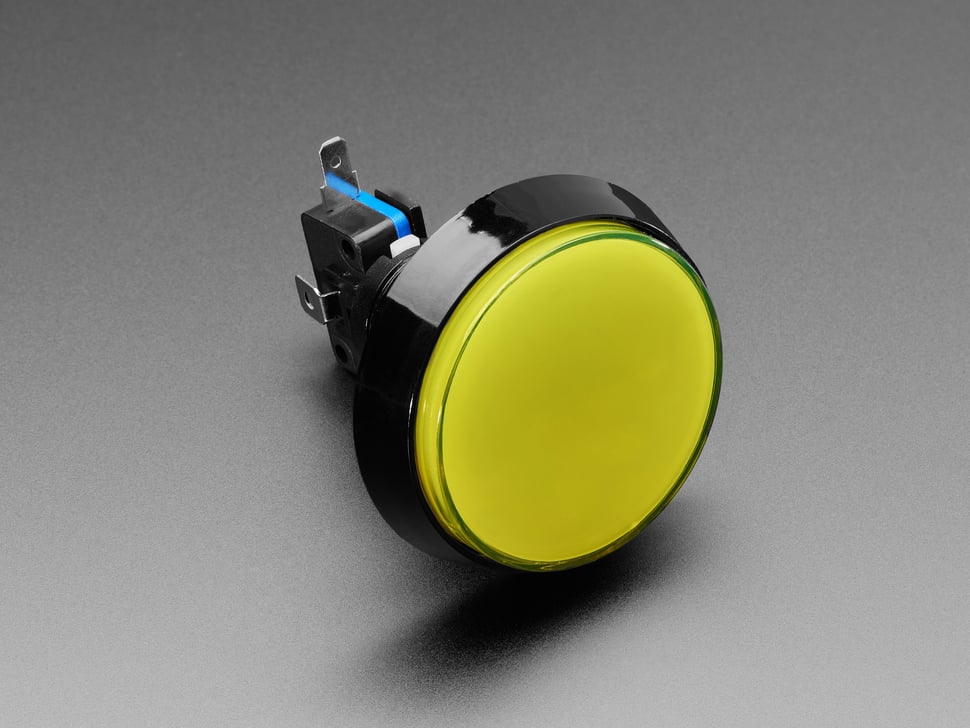

Large Arcade Button with LED - 60mm Yellow

BAM! This 60mm diameter arcade button is large and inviting, perfect for all sorts of pressing and pushing. Ideal for arcade games and other skill-based games, it's easy to mount on almost any enclosure. Please note, this button is not waterproof or weatherproof and is best used indoors.

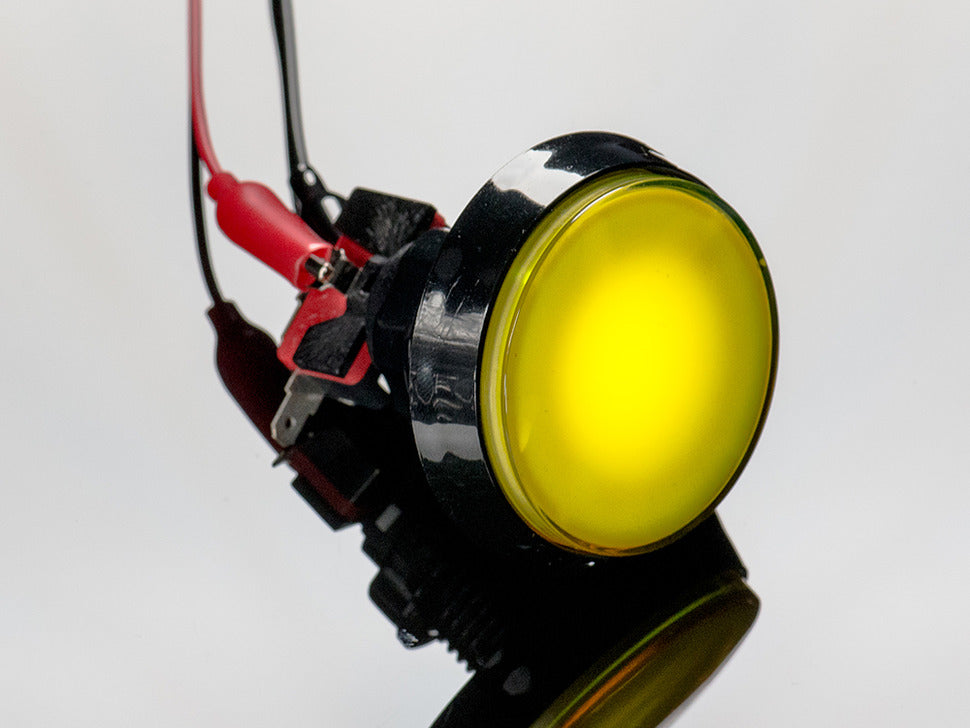

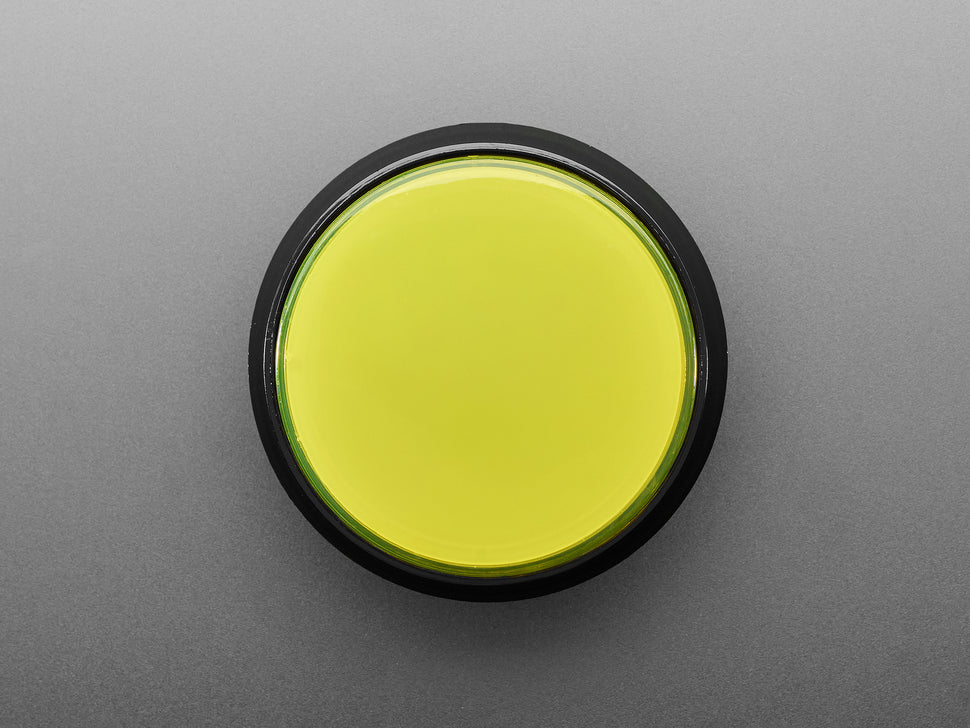

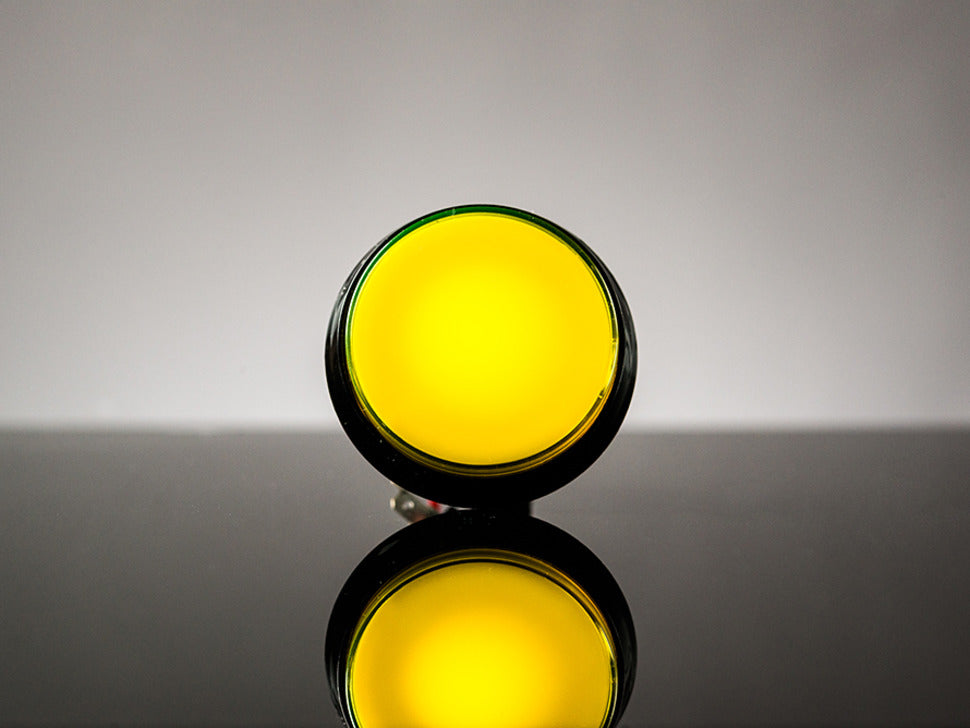

The button features a flat yellow plastic cover with a black retaining ring around it. An optional LED with a built-in resistor is included, allowing it to run up to 12V. However, due to the shallow depth of the button, the LED does not illuminate the entire button face evenly.

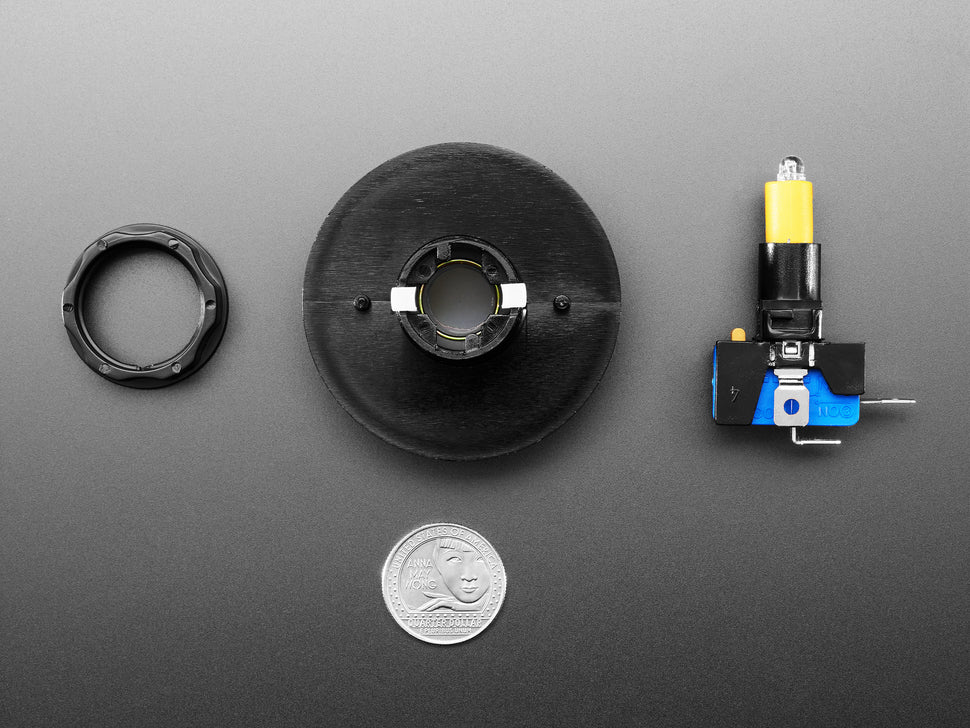

The button activates a common arcade microswitch (included) that is normally open. Pressing the button closes the switch contacts.

• 12mm / 0.5" height when pressed
• 15.2mm / 0.6" height when not pressed
• 52.5mm / 2.1" long stem with switch installed

See the diagram here.
