LED Illuminated Pushbutton - 30mm Round

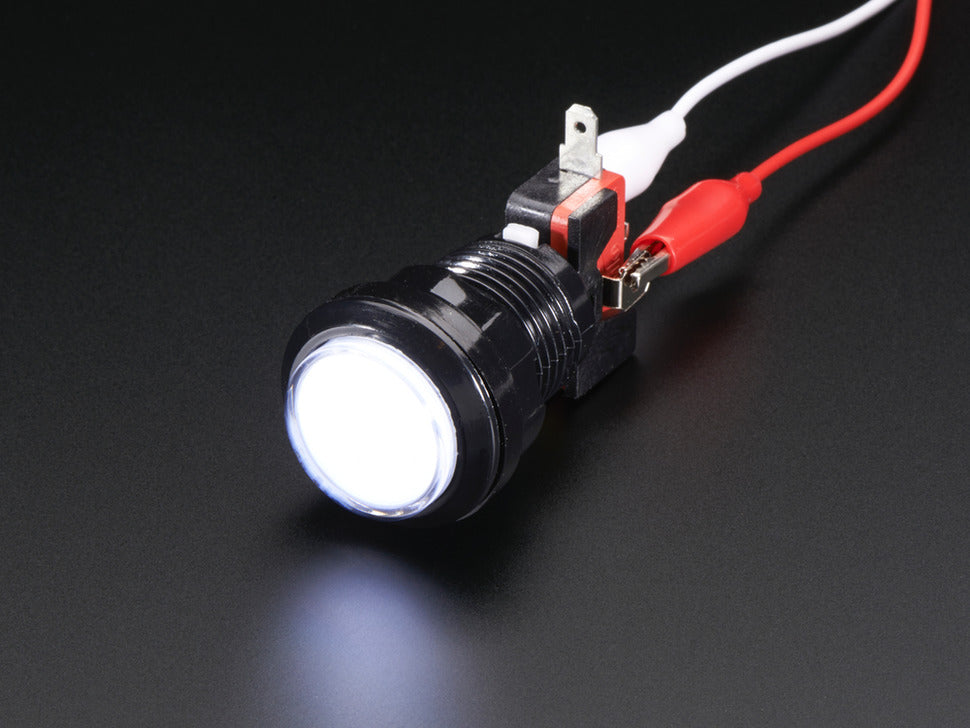

A button is a button, and a switch is a switch, but this LED illuminated arcade button is in a class of its own. It is the same size as a 'standard' 30mm arcade button but has a built-in LED that can be controlled separately from the switch action – either to indicate or just to look good.

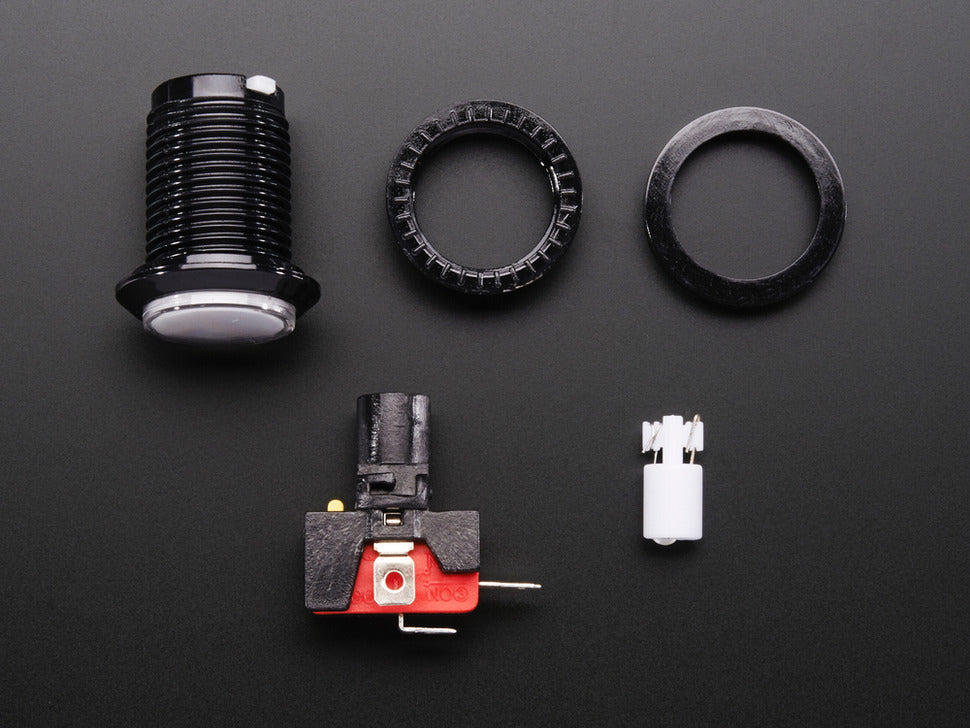

The body is made of black plastic, and a lamp holder fits inside. Originally designed for incandescent lamps, it is easy to use with an LED by wrapping the legs around the holder as shown. It comes with a clear white LED, but it is suggested to use a diffused LED for a better wide illumination effect since the clear LED does not fill the circle nicely. The button can be disassembled to slip an image under the clear cover for backlighting.

The button comes with a normally-open micro-switch. Once you've inserted the preferred LED, just snap in the micro-switch. The micro-switch is clicky, so you will hear and feel it when actuated.

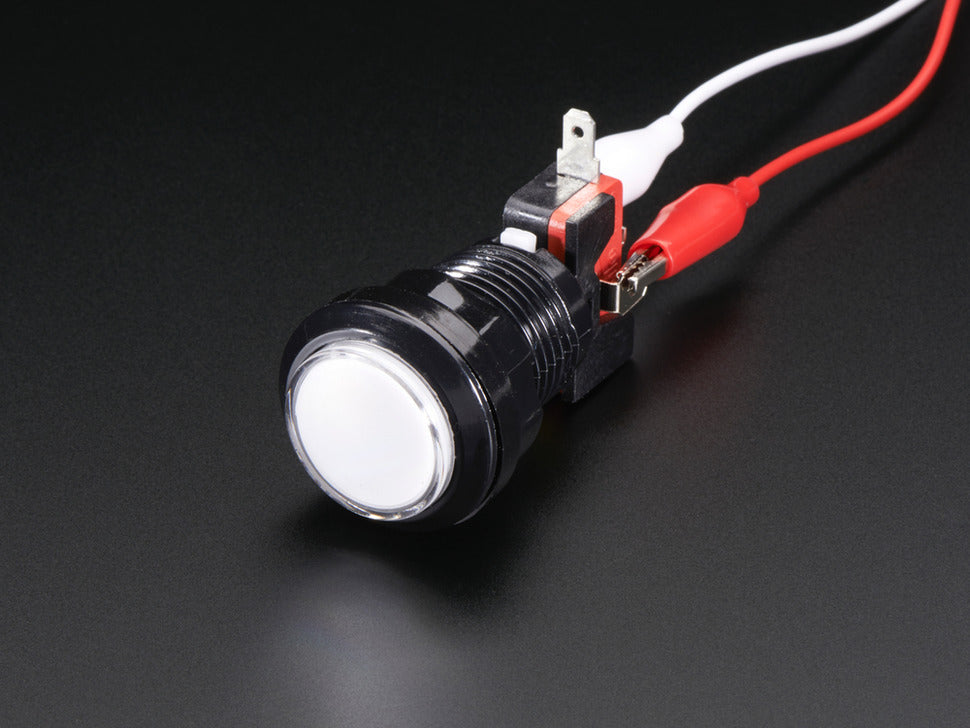

Hook up easily with the 0.25" Quick-Connect Wires.

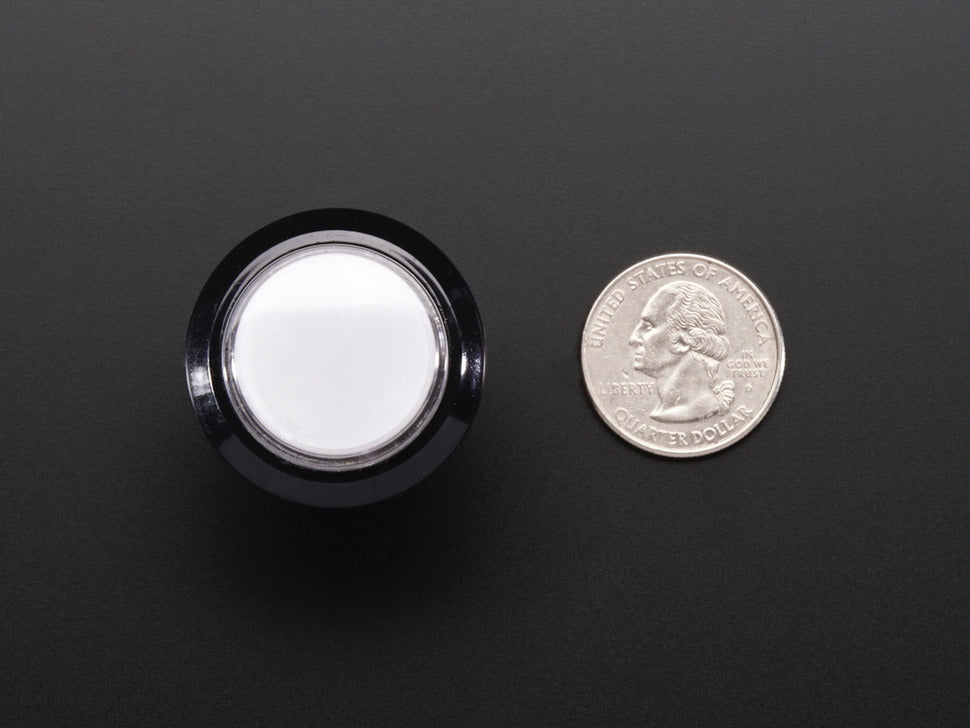

• 30mm round arcade button footprint
• Built-in LED lamp holder supports separate LED control
• Includes clear white LED (diffused LEDs recommended)
• Normally-open micro-switch included, clicky feel
• Black plastic body with clear cover
• Easy to disassemble and customize with images
• Compatible with 0.25" quick-connect wires (not included)
