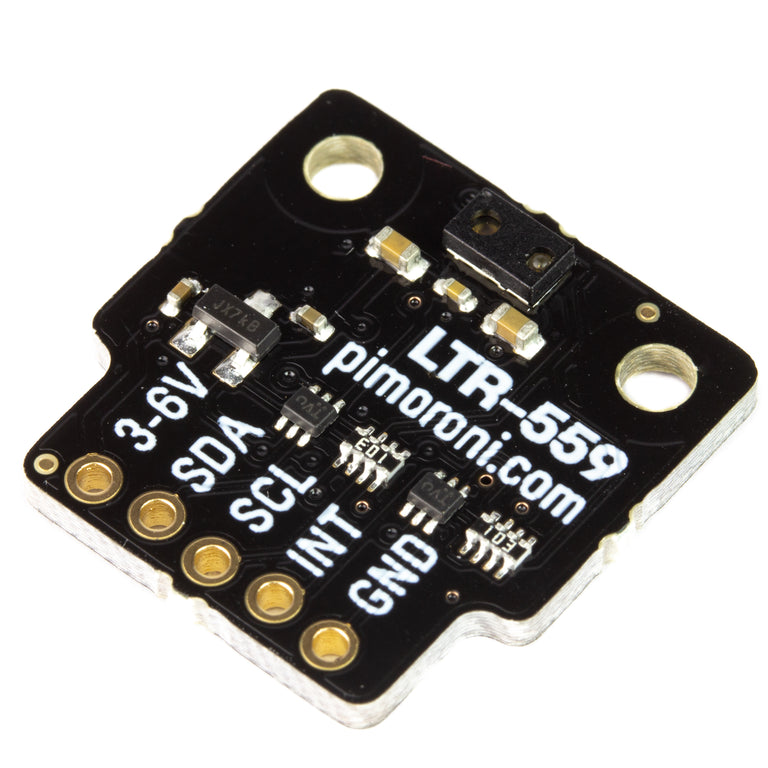

LTR-559 Light & Proximity Sensor Breakout

The LTR-559 Light & Proximity Sensor Breakout detects light over a wide dynamic range (0.01 lux to 64,000 lux) and proximity within a short range of approximately 5cm.

It features the Lite-On LTR-559ALS-01 sensor, commonly found in smartphones to detect when the phone is near the user's ear, disabling the touchscreen accordingly. This breakout is ideal for projects such as automatic or manual nightlight switches that trigger based on ambient light or hand proximity.

The breakout board has a 3.3V or 5V compatible I2C interface (address: 0x23) and includes reverse polarity protection. It is designed to be Raspberry Pi compatible with a convenient pinout for direct connection to the GPIO pins (pins 1, 3, 5, 7, 9) and is also suited for the Breakout Garden HAT for easy plug-and-play expandability.

Note: The latest batch includes a non-functional Qw/ST connector due to a wiring error, offered at a reduced price to avoid waste.

Features:

• Lite-On LTR-559ALS-01 sensor (datasheet)
• I2C interface (address: 0x23)
• Infrared and UV filtering
• 50.60Hz flicker rejection
• Light detection range from 0.01 lux to 64,000 lux
• Proximity detection range of approximately 5cm
• 3.3V and 5V compatible power supply
• Reverse polarity protection
• Raspberry Pi compatible pinout
• Compatible with Raspberry Pi and Raspberry Pi Pico with available Python and C++/MicroPython libraries

Kit includes:

• LTR-559 Light and Proximity Sensor Breakout
• 1x5 male header
• 1x5 female right angle header

Software:

Python libraries are available for data reading on Raspberry Pi. Raspberry Pi Pico and other RP2040 boards are supported with C++ and MicroPython libraries.

Dimensions: 19x19x3 mm
