Maker Pi Pico Base Development Board - Raspberry Pi Pico Not Included

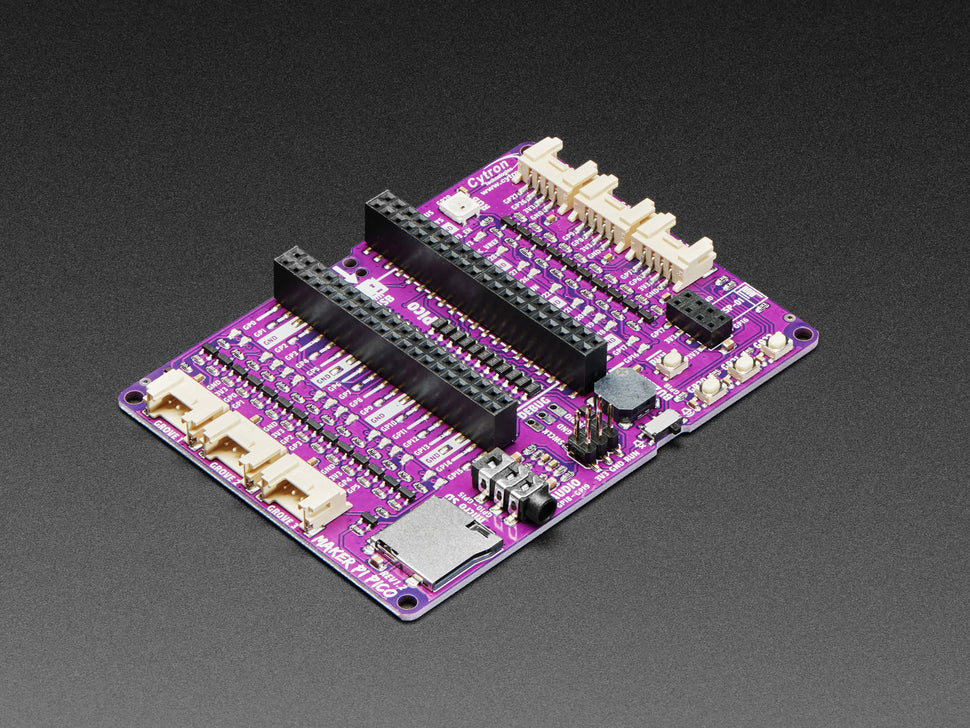

Cytron's Maker Pi Pico Base is a feature-packed board designed to complement your Raspberry Pi Pico microcontroller (not included). It includes a Reset button and provides access to all GPIO pins on two 20-pin headers with clear labels and LED indicators on each GPIO for easy testing and troubleshooting.

This compact base board is perfect for STEAM and robotics projects, allowing you to connect sensors and output modules via jumper wires or cables to expand its functionality.

• Works out of the box with no soldering required (headers may need to be soldered onto the Pico)

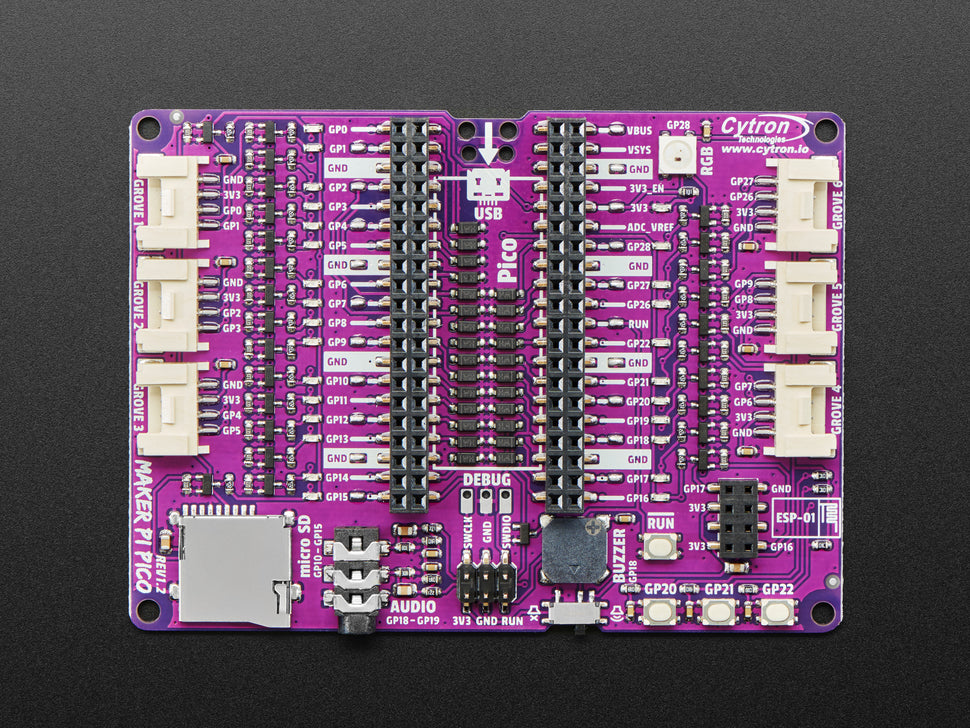

• Access to all Raspberry Pi Pico pins
• LED indicators on all GPIO pins
• 3 programmable push buttons (GP20-22)
• 1 NeoPixel LED (GP28)
• 1 Piezo buzzer (GP18)
• 1 3.5mm stereo audio jack (GP18-19)
• 1 Micro SD card slot (GP10-15)
• 1 ESP-01 socket (GP16-17)

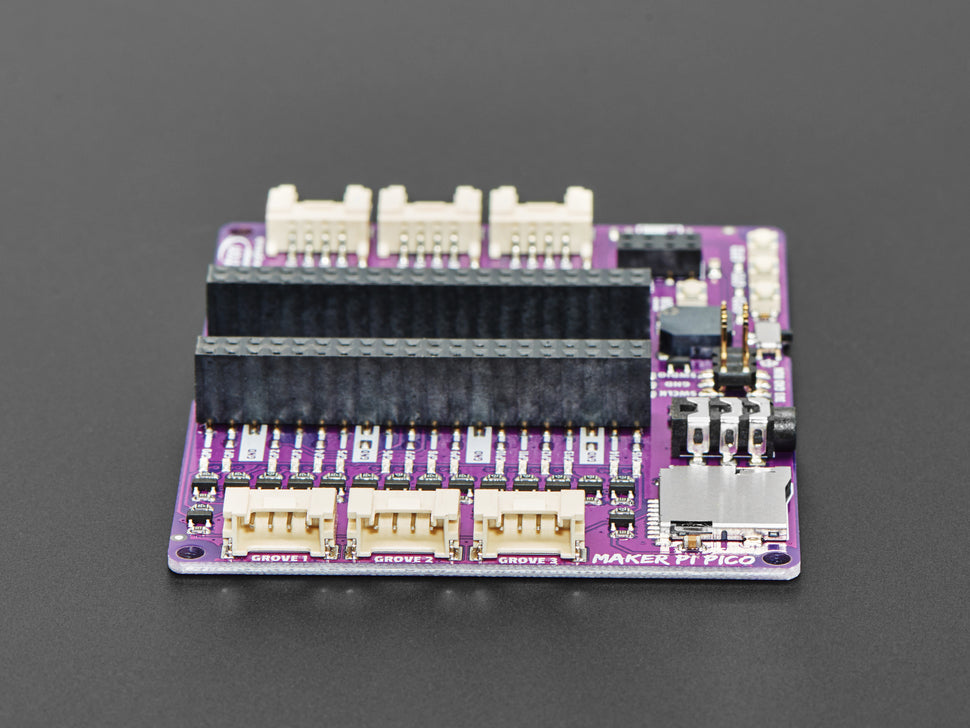

• 6 Grove ports compatible with Grove->Stemma QT cable for Qwiic/QT sensors

The board can be programmed with CircuitPython, MicroPython, or C/C++. Simply connect it to a computer or Raspberry Pi SBC via USB and drag and drop the program files.

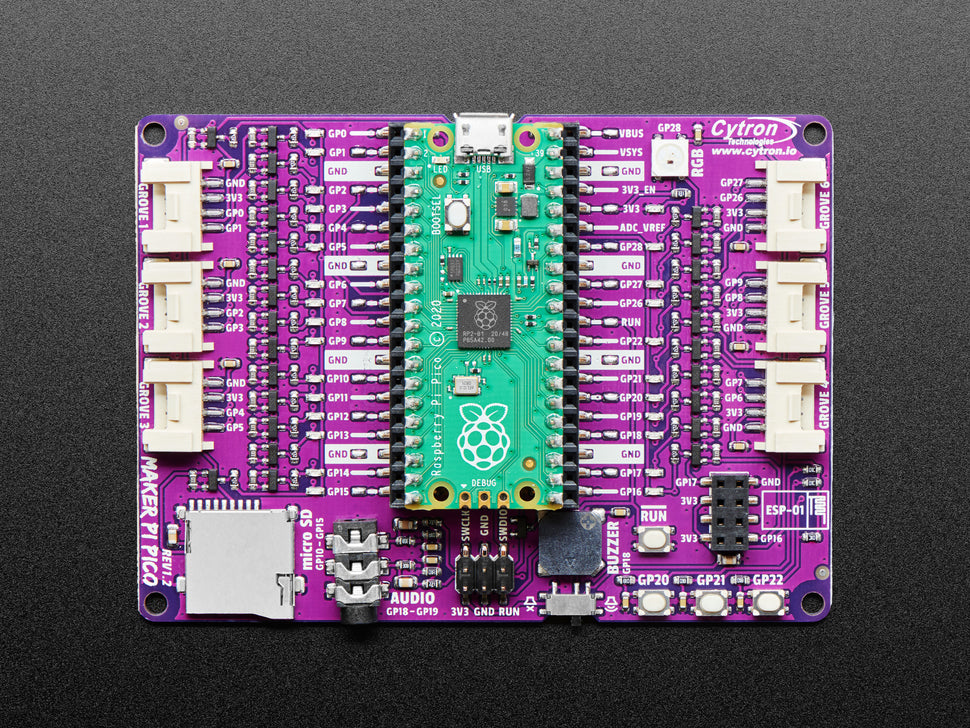

Note: Raspberry Pi Pico microcontroller is not included but available separately.
