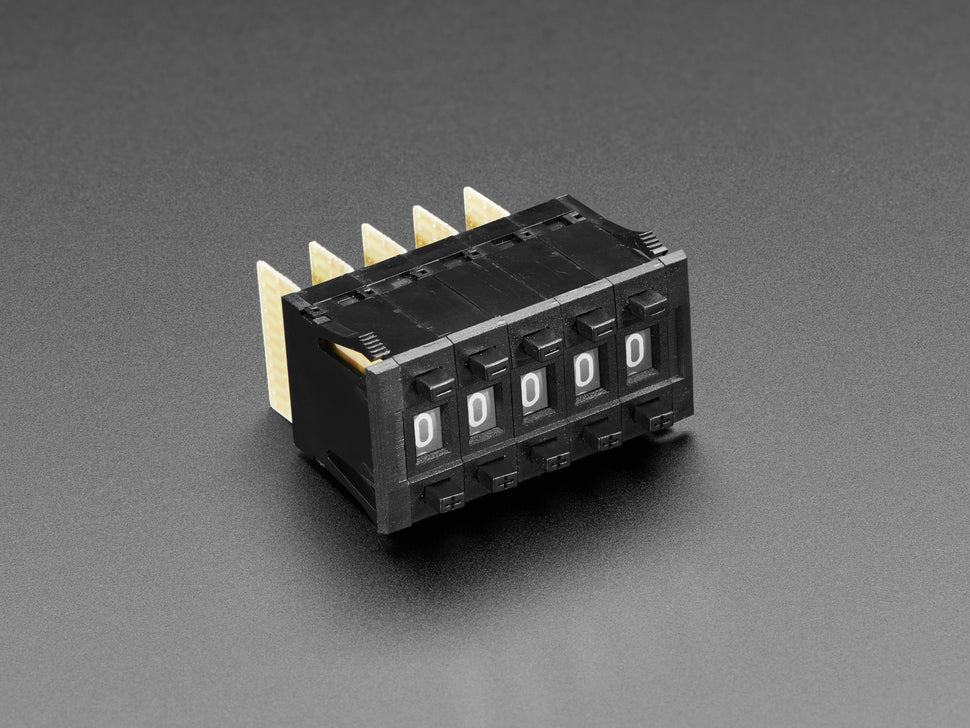

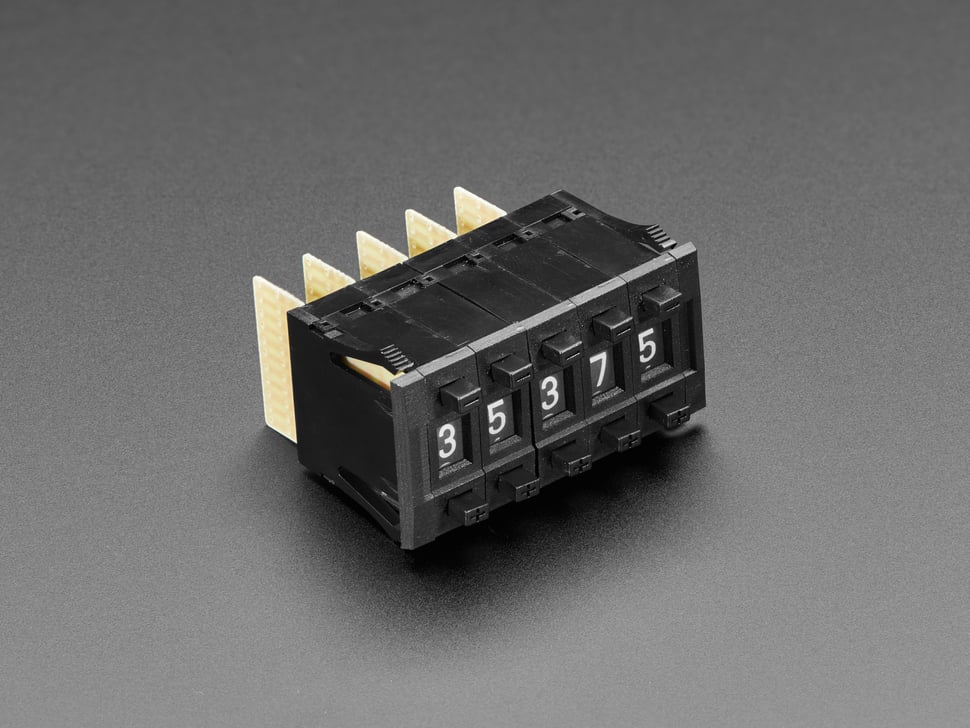

Mechanical Decade Counters - Small Size - Pack of 5

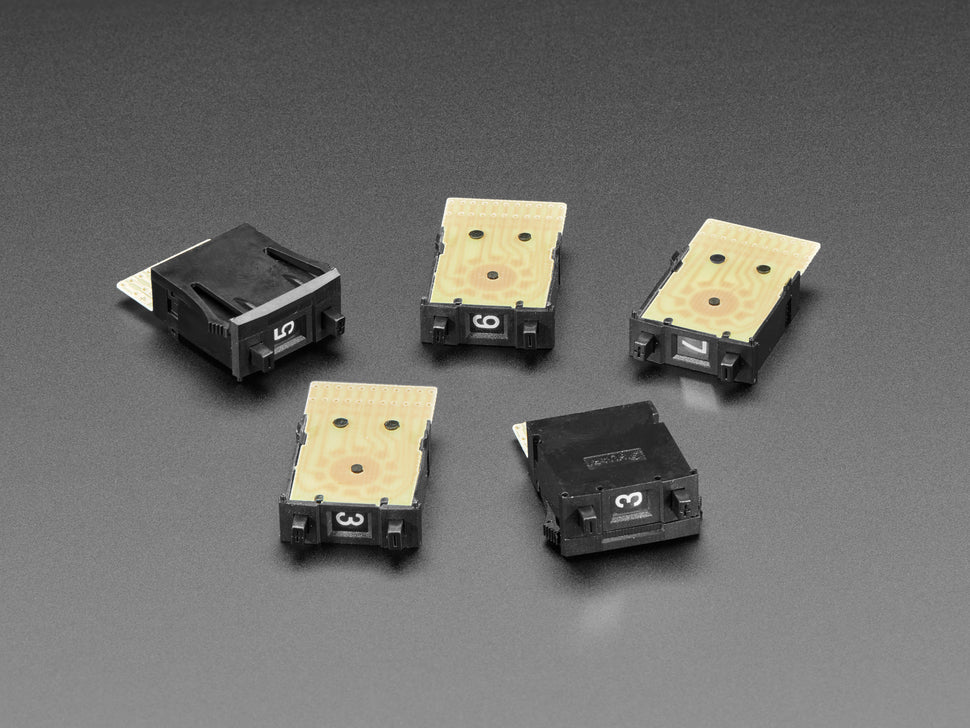

Click click click - oh pardon me I was having fun clicking away on my mechanical decade counters. Each order comes with five individual counters. They're snap together so you can connect as many or as few as you'd like. Each one has two buttons - an up counter and down counter. Once you get to 9 it circles back to zero. On the back is a PCB with 11 contacts - one common and then 10 that are shorted to the common one by one as the counter goes by that number.

These make for an interesting interface! This one is the smaller size with a bezel size of 1.85" x 0.94" (for 5 counters with 2 end caps).

• Pack of 5 mechanical decade counters
• Each counter has up and down buttons
• Snappable to connect multiple counters

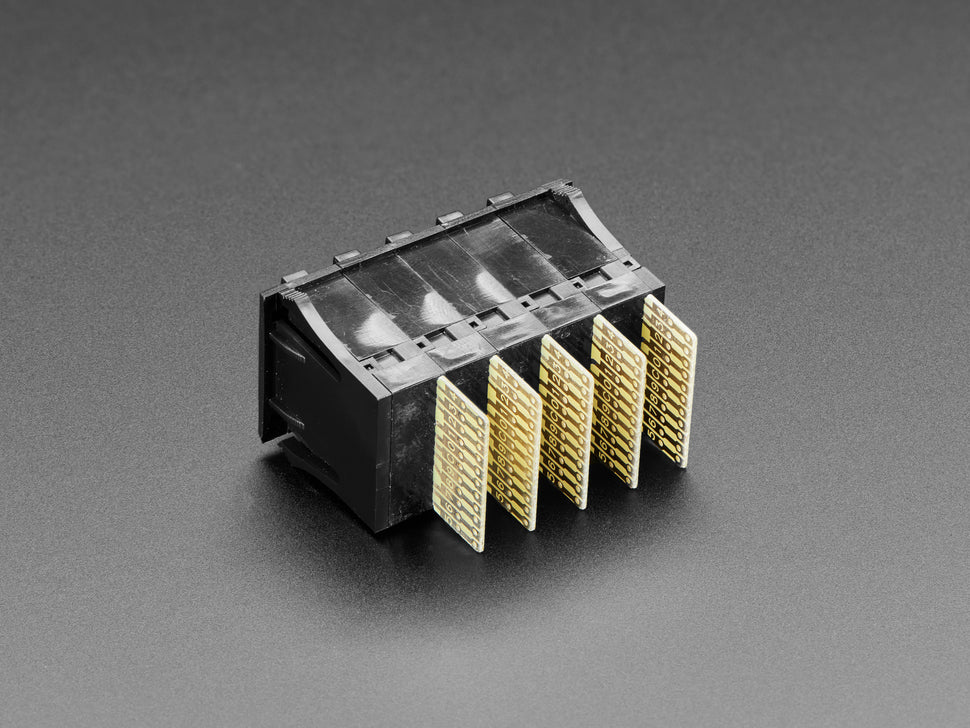

• Back PCB with 11 contacts for number indexing
• Smaller size: bezel size 1.85" x 0.94" for 5 counters with 2 end caps

Dimensions:

• Bezel size 1.85" x 0.94" (for 5 counters with 2 end caps)
• Mounting hole size 1.72" x 0.875" (for 5 counters with 2 end caps)
• Total depth (from front of button to the edge of the PCB) 1.6"
• Single counter width 0.32"
