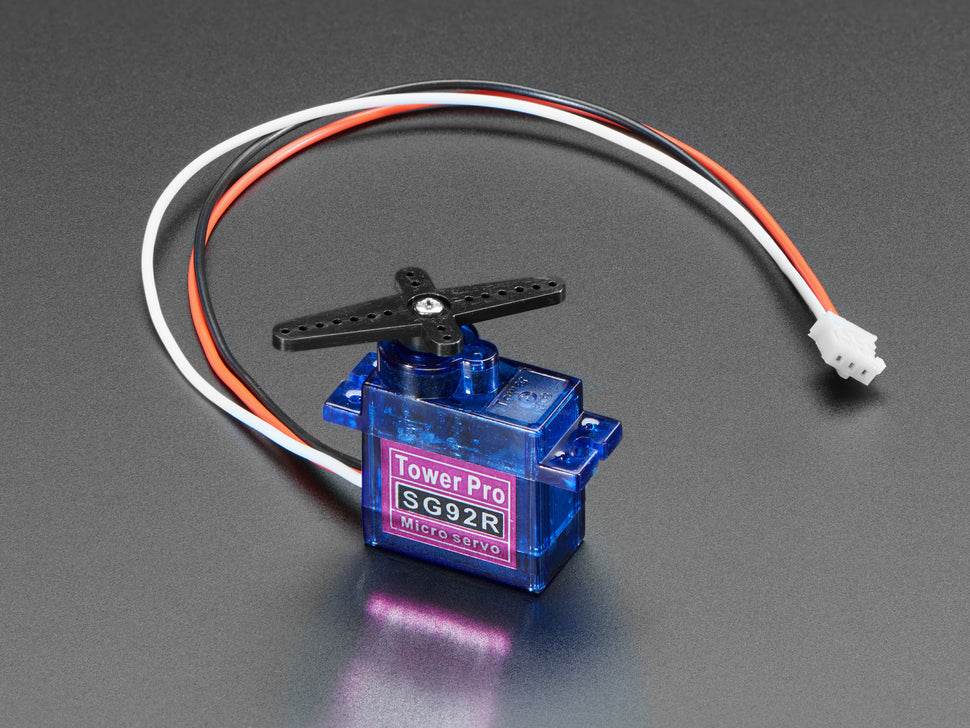

Micro Servo with 3-pin JST PH 2mm Cable - TowerPro SG92R - STEMMA Connector Compatible

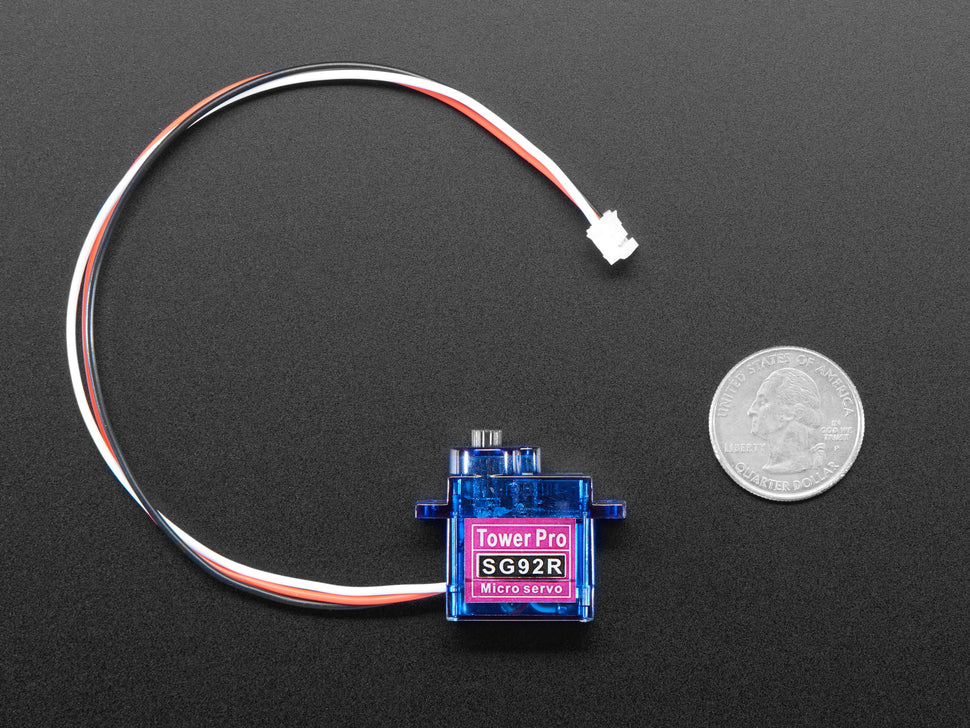

This tiny Micro Servo can rotate approximately 180 degrees (90 in each direction) and works just like standard servos but smaller. It is ideal for beginners who want to create motion without building complex motor controllers. The servo is compatible with any servo code, hardware, or library, making it versatile and easy to use.

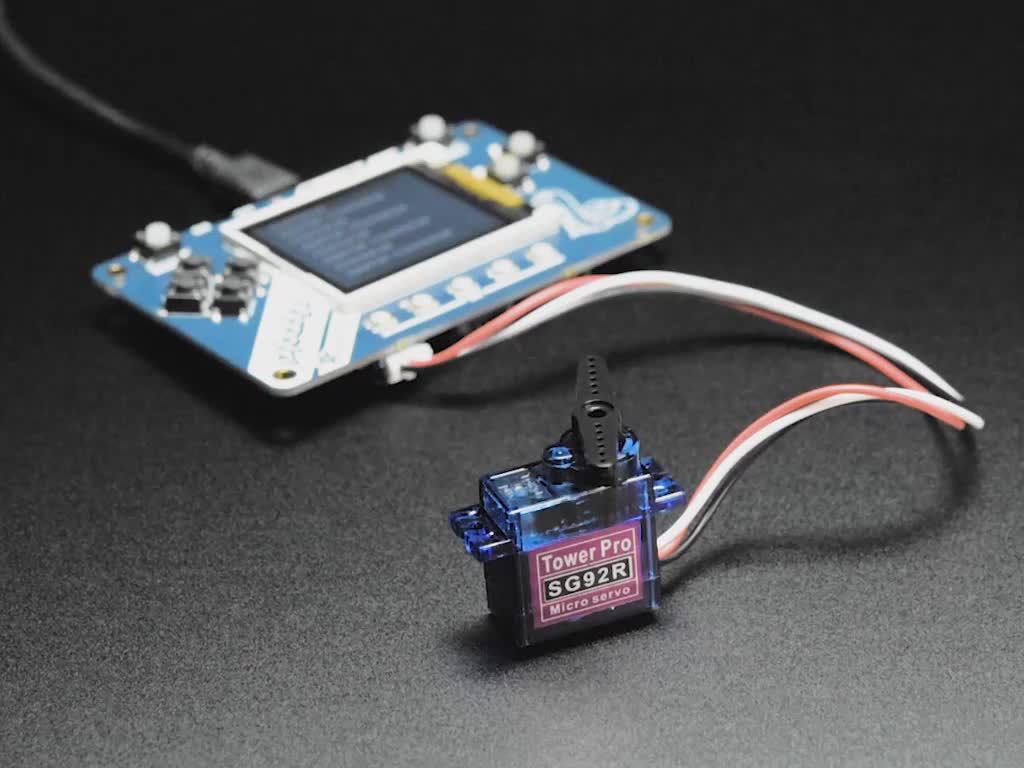

This version features a 3-pin JST PH cable, making it perfect for plug-and-play support with Adafruit boards that have 3-pin STEMMA connectors such as PyPortal, HalloWing, PyGamer, PyBadge, and others. Simply plug it in and control your servo with ease.

The 19cm-long JST cable is color-coded: Black for GND, Red for 5V, and White for Data.

You can control this servo using the Arduino Servo library, CircuitPython, or MakeCode. Default pulse widths may not provide the full 180 degrees of motion, so adjusting to 0.75ms to 2.25ms pulse length might be necessary for full rotation. Be cautious not to exceed limits to avoid damage.

• Compact size for small spaces
• Compatible with Arduino Servo libraries and CircuitPython
• 3-pin JST PH cable allows quick STEMMA connector compatibility

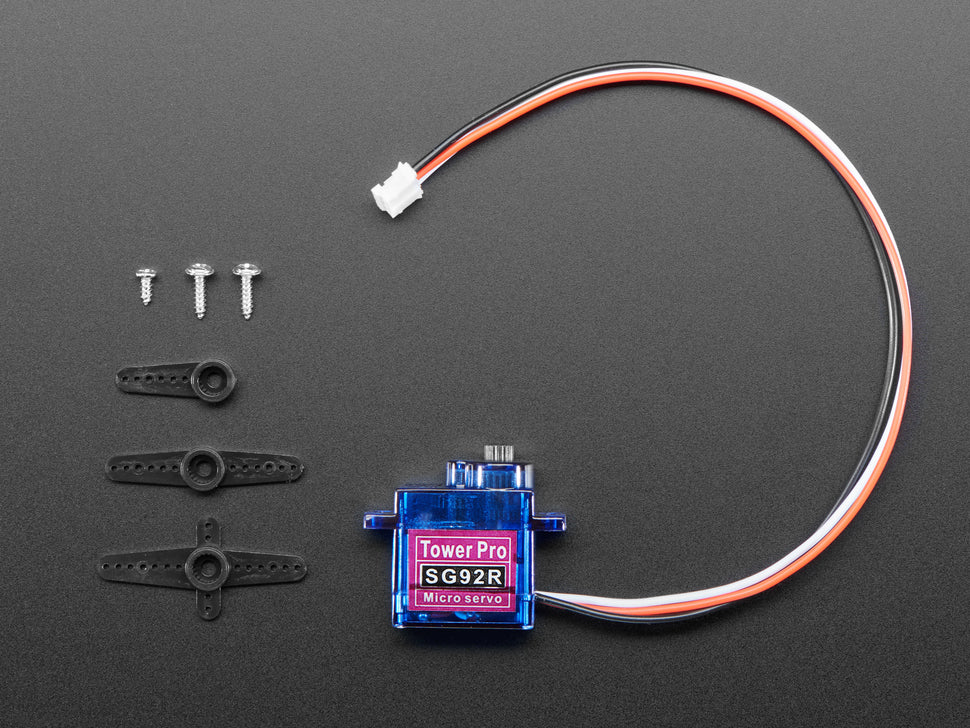

• Includes servo horns and mounting hardware
