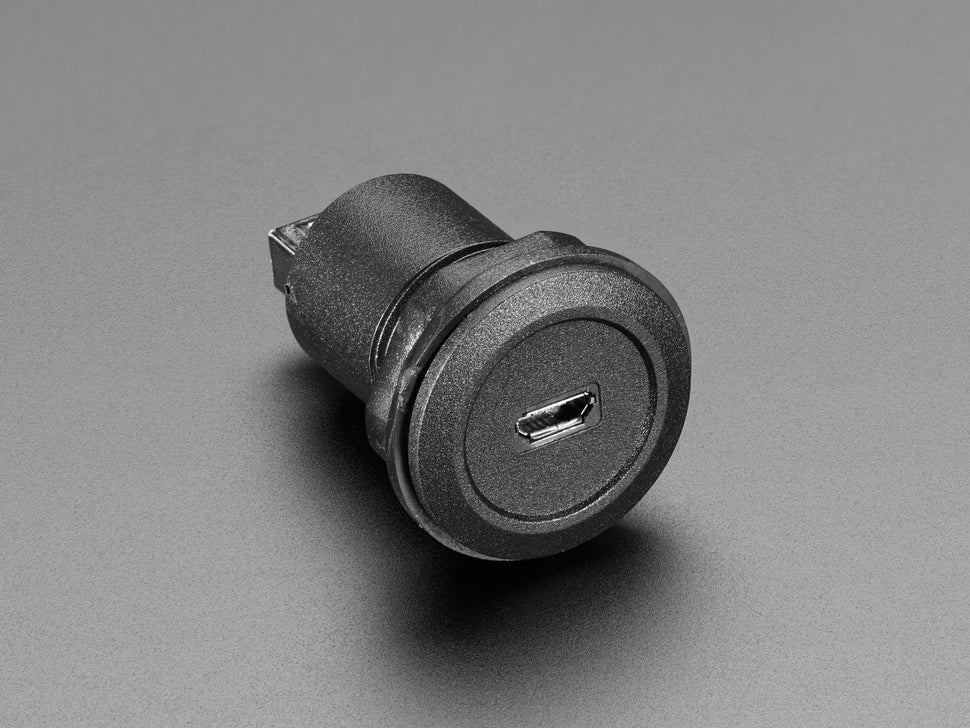

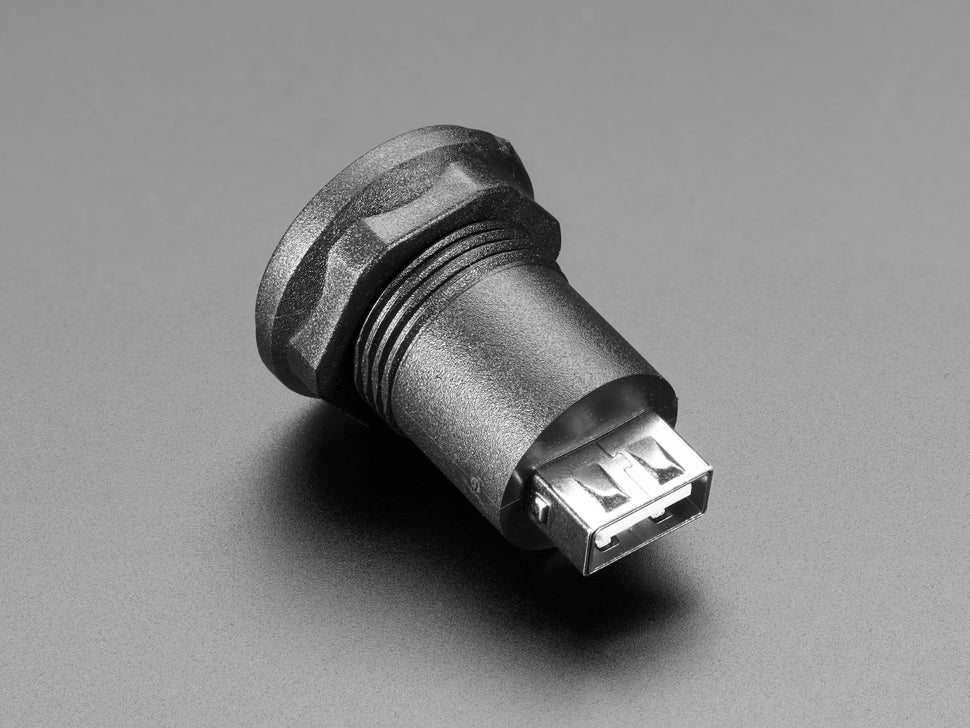

Micro USB B Jack to USB A Plug Round Panel Mount Adapter

If you need to add a panel-mount connection but don't have the time or ability to cut a custom oval or square hole, this Micro USB B Round Panel Mount Plug is the easiest and fastest way to panel-ify your project.

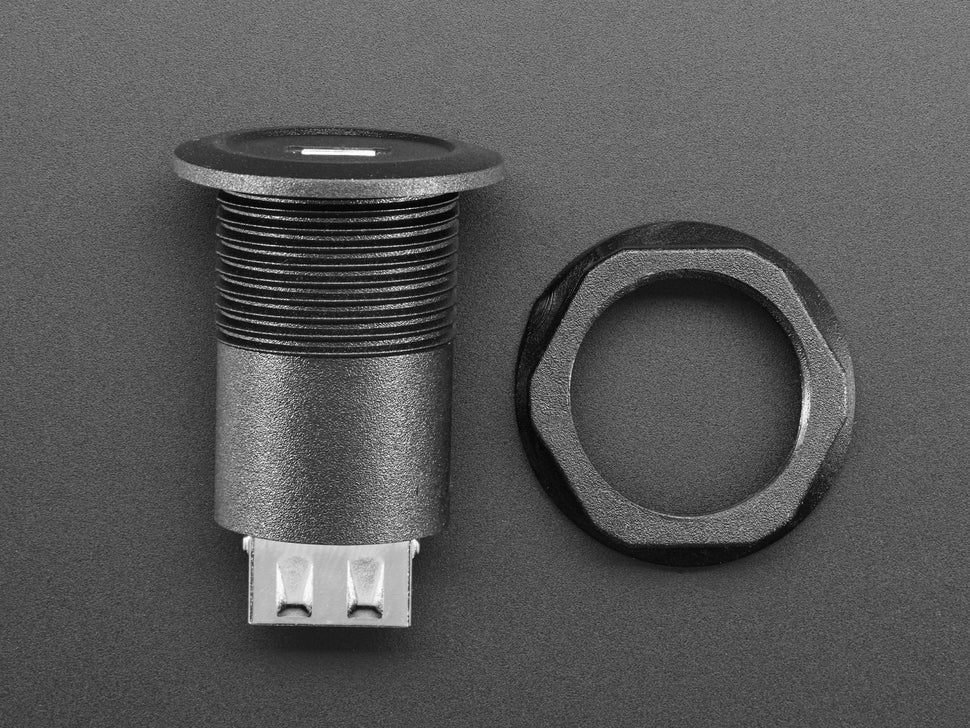

It's about 30mm in diameter, so you can drill a hole in your wood, plastic or metal with a common hole-saw or bit, no special shapes or filing required. Un-screw the plastic nut, insert the plug and re-attach. Ta-da! Now you have a Micro USB B Jack to USB A Plug sockets on either side for connecting any cable.

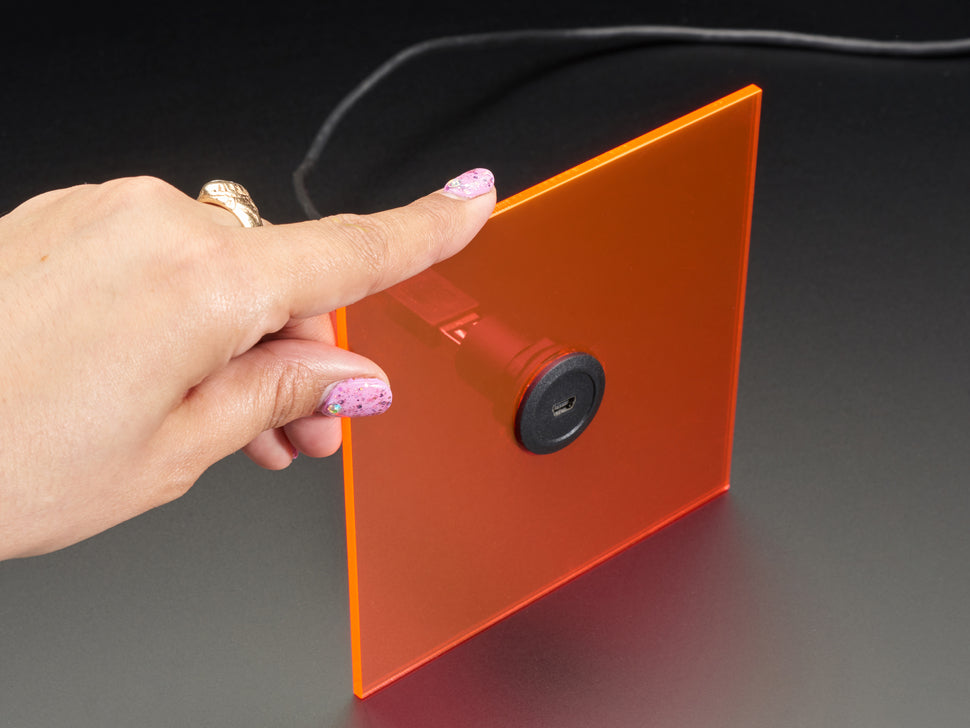

It's designed to easily attach to a panel up to 16mm thick (or 0.625"), or as thin as a few mm. Perfect for adding an Micro USB B port to your project enclosure! This plug features a solid body and a 'forgiving' plastic lip that hides the drill hole.

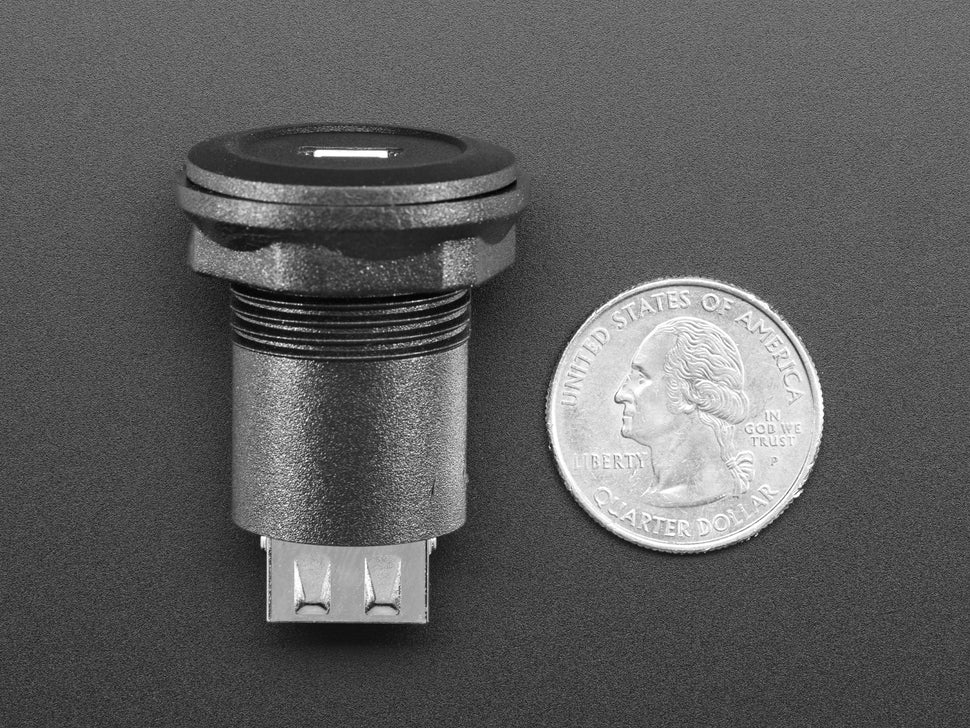

• Overall length: approx 40mm
• Diameter: 30mm
• Pinout
• Socket Diagram
