Mini Illuminated Momentary Pushbutton - Blue Power Symbol

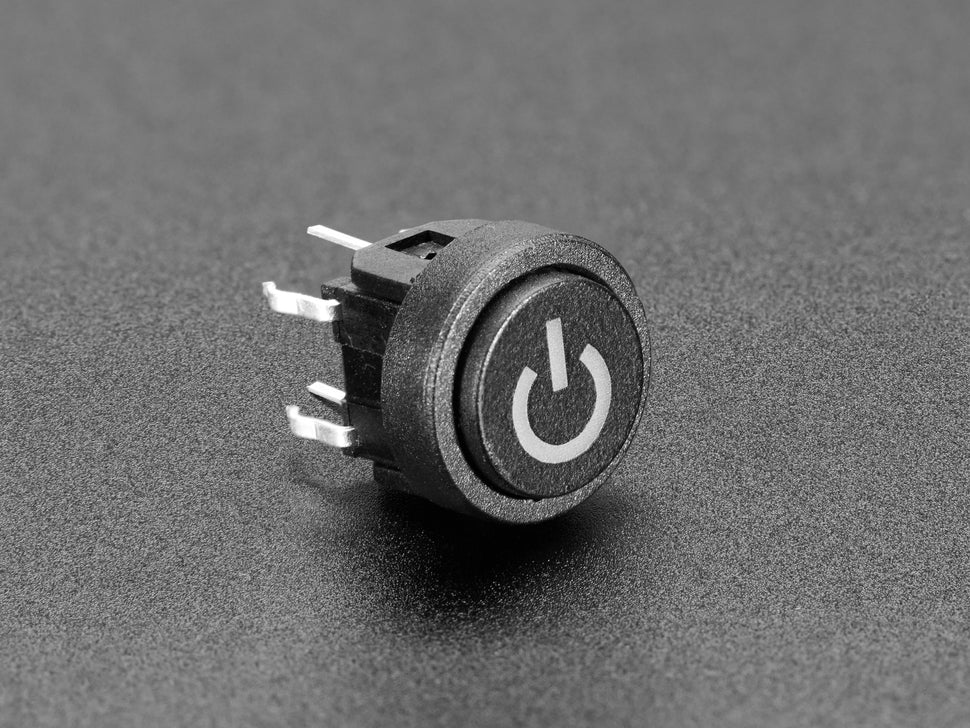

The Mini Illuminated Momentary Power Button is a compact, breadboard-friendly tactile switch featuring a built-in LED with a universal blue power symbol. This momentary pushbutton is ideal for adding a tactile switch and colorful LED indicator to your electronics project.

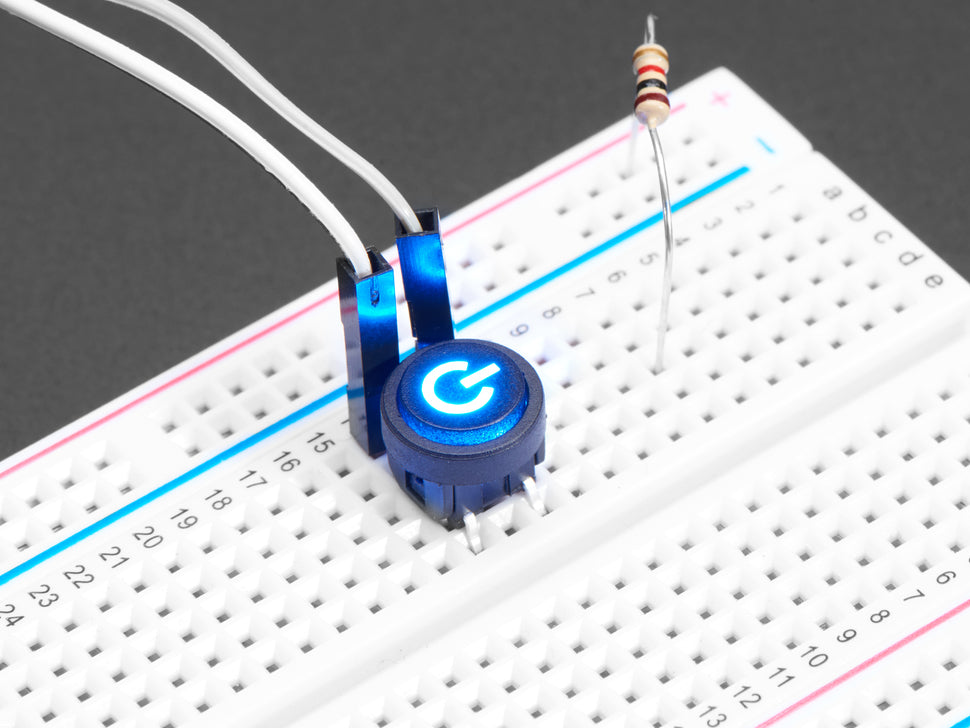

The tactile switch is approximately the size of a 6mm tactile switch and easily snaps into a breadboard. It includes two additional pins to connect the anode and cathode of the LED, which shines through the power symbol on top. Note that the LED is independent of the switch and requires a ~1K resistor and an external control signal.

Features include:

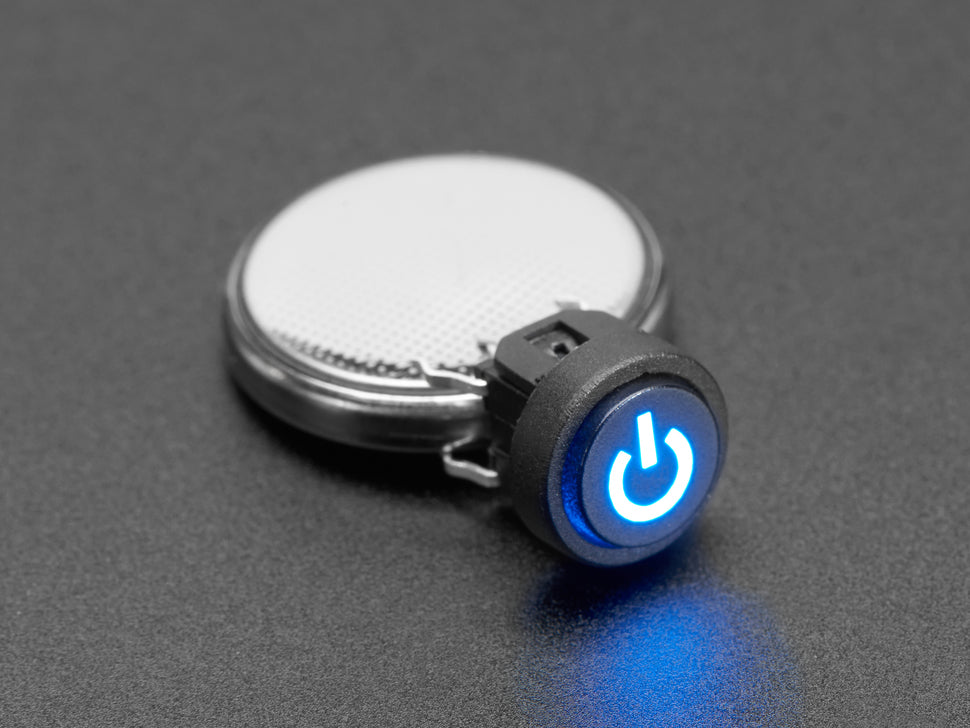

• Blue illuminated power symbol with built-in LED
• Momentary tactile switch (not latching)
• Breadboard compatible 6mm size

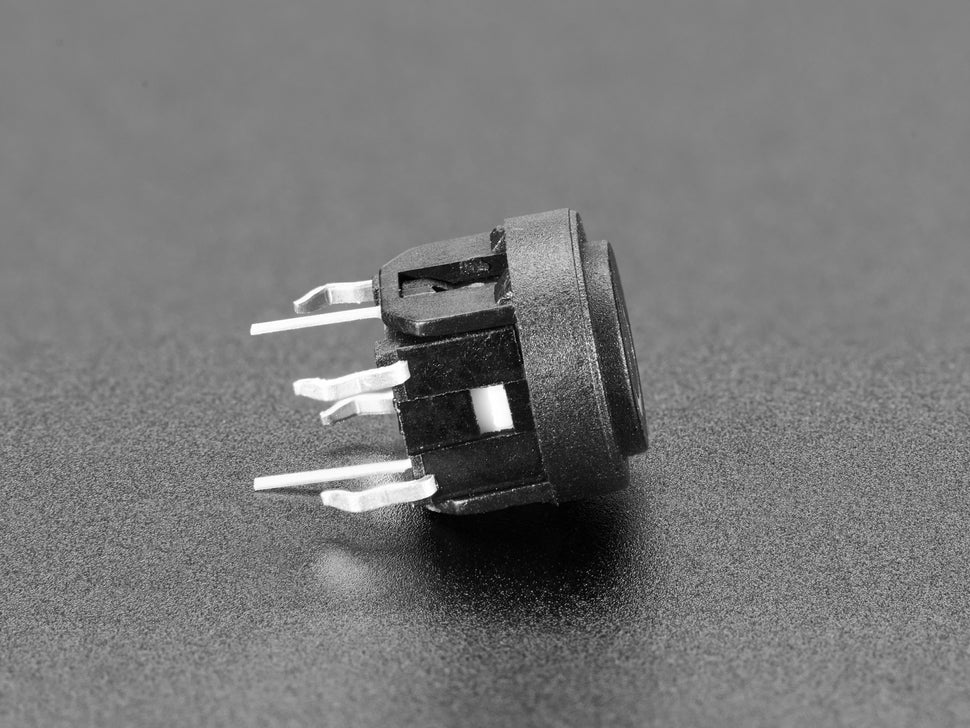

• Separate LED pins—LED driven independently of the switch
• Compact size and lightweight design

Specifications:

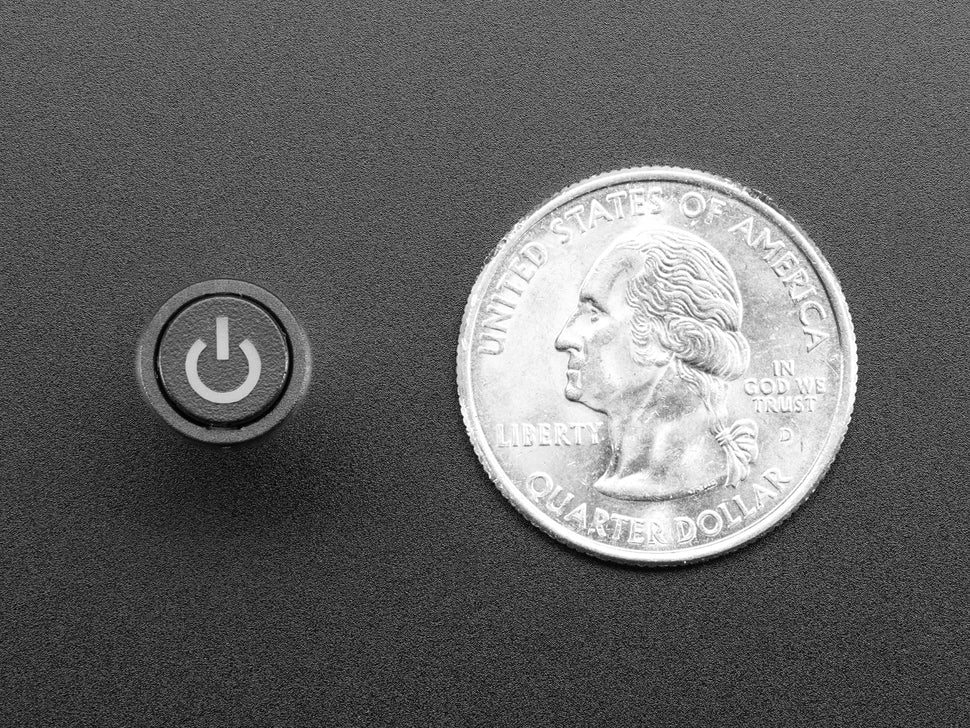

• Product Diameter: 9.8 mm (0.4")
• Product Height: 8 mm (0.3")
• Voltage Rating (Switch): 12 V
• Current Rating (Switch): 50 mA
• Current Rating (LED): ~10 mA
• Weight: 0.4 g (0.0 oz)

Datasheet (PDF)

Note: LED cathode is the pin closest to the 'line' half of the power symbol. LED requires separate current limiting resistor and microcontroller control.
