Mini LED Arcade Button - 24mm Translucent Green
Regular price
£3.00 GBP
Regular price
Sale price
£3.00 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Description

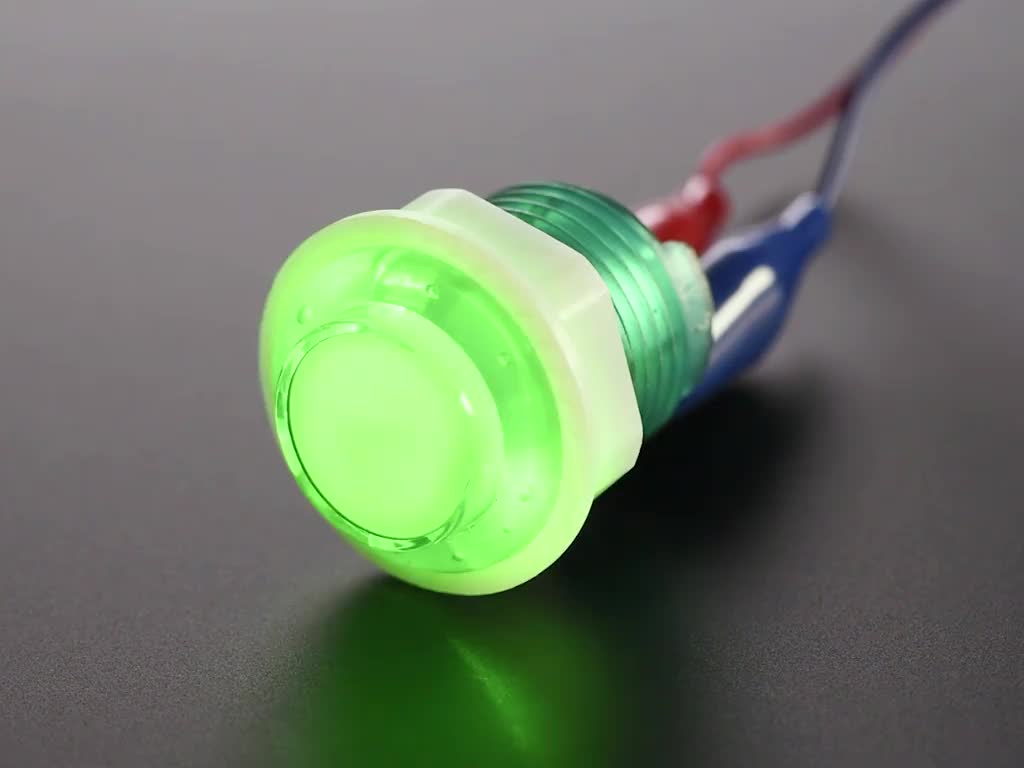

The Mini LED Arcade Button - 24mm Translucent Green is a translucent arcade control button featuring built-in LEDs for a vibrant, illuminated effect. Designed to fit into a 24mm diameter hole, this button screws into place and supports up to approximately 15mm thick mounting material, covering cut imperfections.
The button action is smooth with a tactile press, and it comes pre-installed with a tiny micro-switch with gold plated contacts. The button contains two surface mount LEDs with built-in resistors for easy connection to microcontrollers or direct 5V power supply.
- Built-in two parallel LEDs with ~1K resistors each for 5V or 3.3V power supply
- Requires a 24mm diameter mounting hole
- Screws to fit up to 15mm thick materials
- Smooth action with tactile feedback, no strong click
- Crystal translucent glossy appearance in green
This button draws about 10mA at 5V or can run at 3.3V with a dimmer glow (approximately 2mA).
Technical Details:
- Supply Voltage: 5V
- Weight: 10.3g
