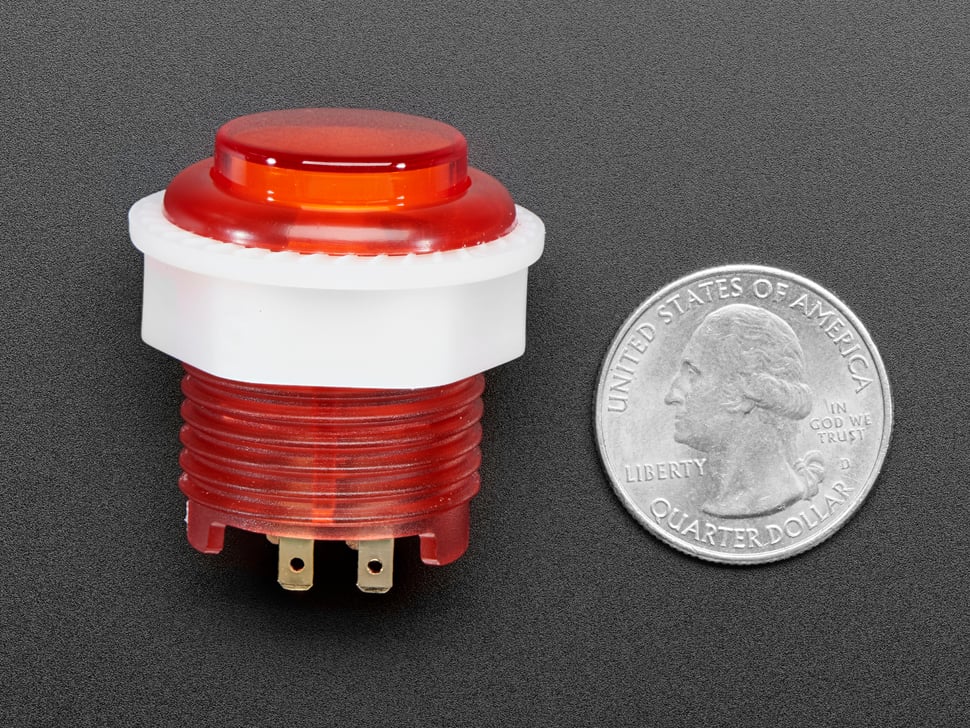

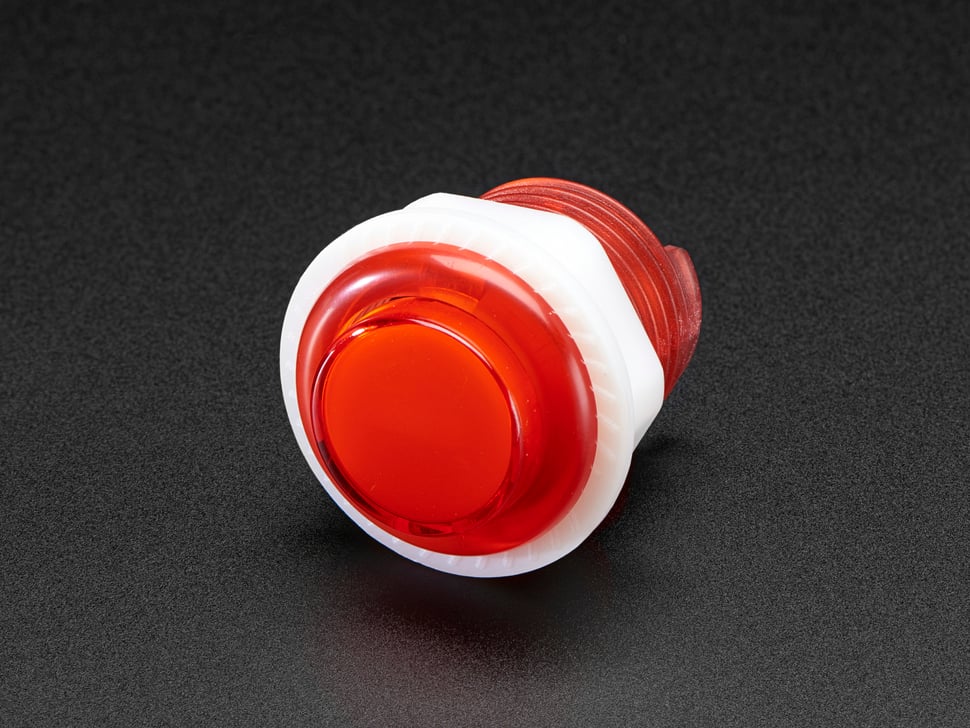

Mini LED Arcade Button - 24mm Translucent Red

A button is a button, and a switch is a switch, but these translucent arcade buttons are in a class of their own because they have LEDs built right in! Enjoy brightly lit button-mashing with these compact buttons that fit into a 24mm diameter hole.

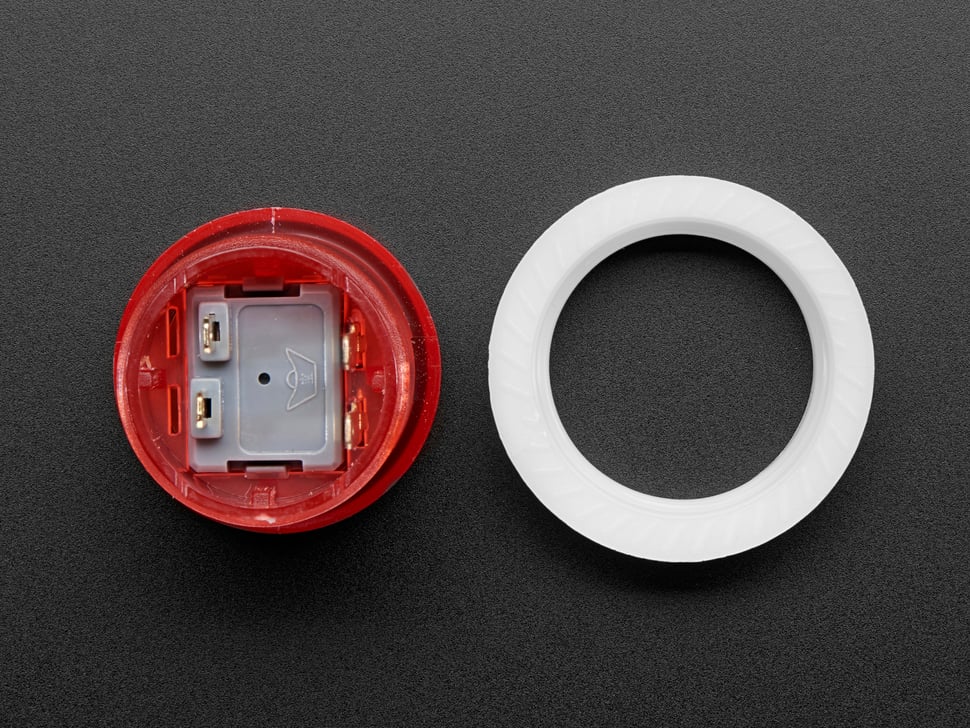

These buttons screw in place and fit material up to ~15mm thick, covering imperfect holes. The smooth action button includes a tiny micro-switch with gold plated contacts.

The crystal translucent, glossy red button houses two surface mount LEDs with built-in resistors connected in series, requiring 5V (or higher) to run the LEDs with a 5mA draw.

These LEDs cannot operate at 3.3V due to the series configuration.

• LEDs built-in with 1K resistor
• Mounts in 24mm diameter hole
• Screws in place for material up to 15mm thick
• Smooth button action with tactile feedback
• Micro-switch pre-installed with gold plated contacts
• Requires 5V supply for LED operation
