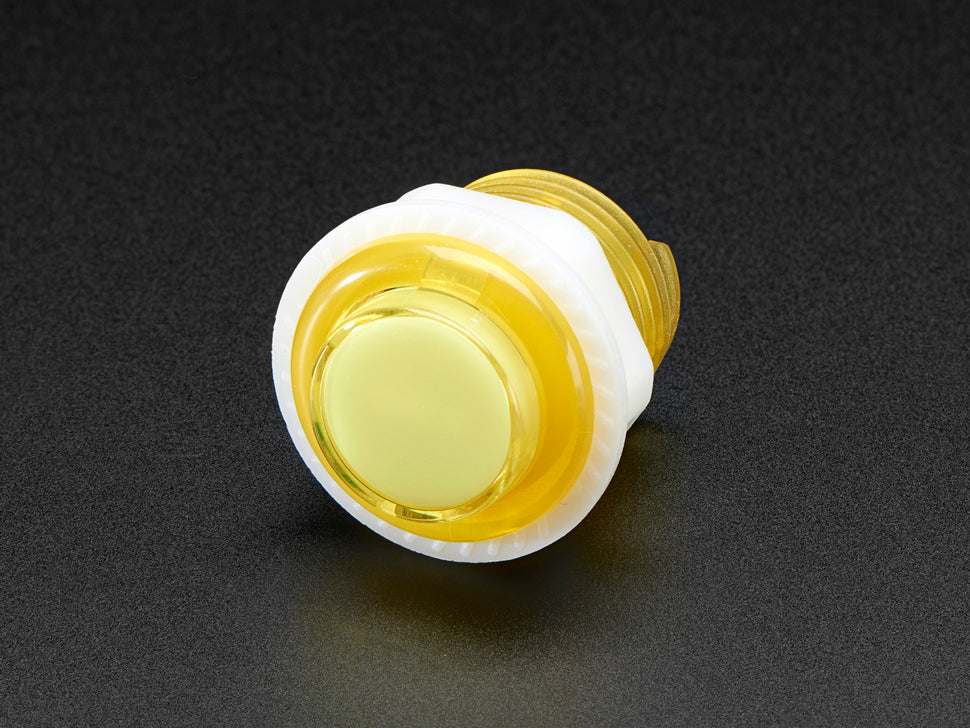

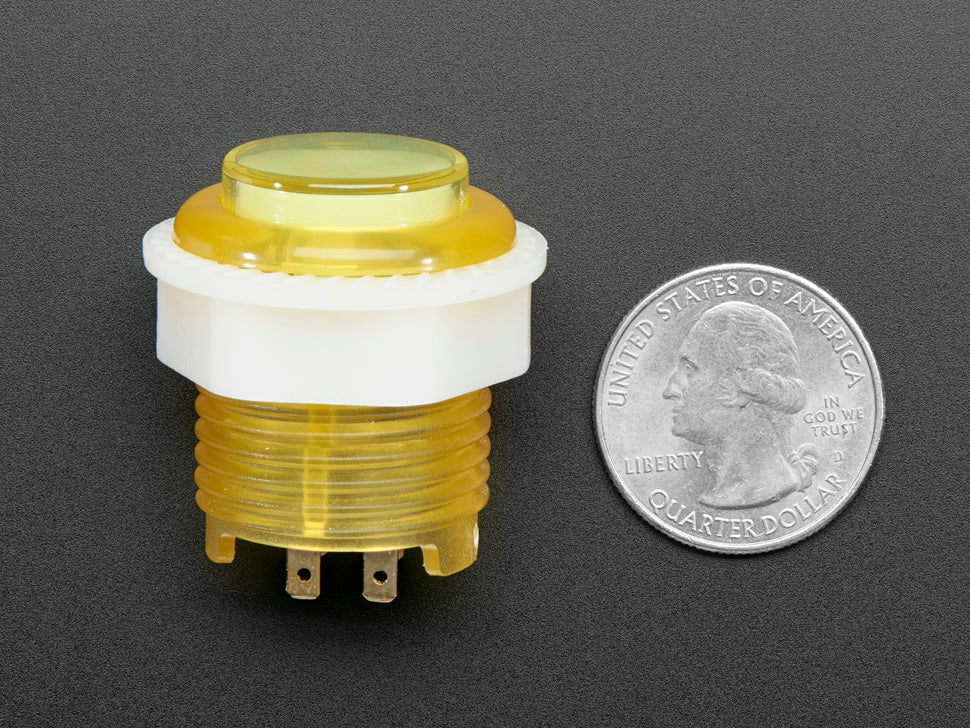

Mini LED Arcade Button - 24mm Translucent Yellow

A button is a button, and a switch is a switch, but these translucent arcade buttons are in a class of their own, featuring LEDs built right in! Enjoy button-mashing amidst a wash of beautiful light with these compact controls.

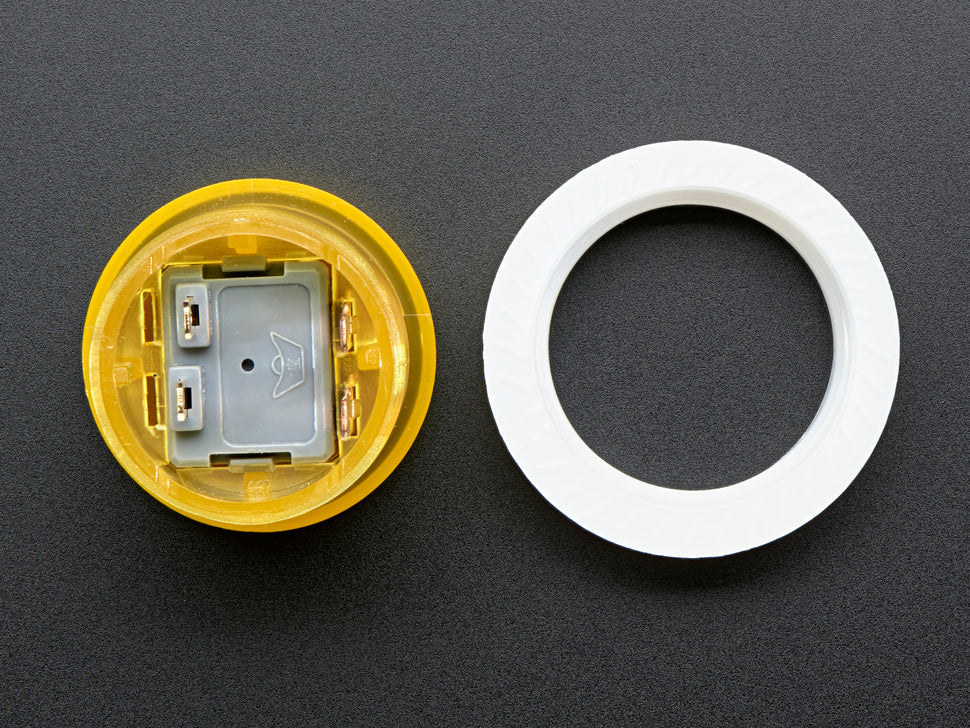

This 24mm diameter button is designed to fit in a 24mm diameter hole and secures with a screw, allowing installation in materials up to 15mm thick. They cover up imperfect holes with a crystal translucent glossy finish and provide a smooth button press with a tactile feel thanks to a pre-installed tiny micro-switch with gold plated contacts.

The button has two surface mount LEDs with resistors built inside the button body, connected in series with about a 1K resistor. Power the LEDs directly from a microcontroller pin or 5V supply at approximately 5mA current draw. Note that the Red and Yellow versions cannot operate at 3.3V, requiring 5V or higher voltage.

This listing is for the Translucent Yellow version of the Mini 24mm LED arcade buttons.

• Supply Voltage: 5V @ 5mA
• Weight: 10.3g
• Mounting Hole Diameter: 24mm
• Mounting Thickness: up to ~15mm
• LEDs connected in series with ~1K resistor inside button
